SH6 vs SH8: What's the Difference?

Thermal imaging has become one of the fastest and safest ways to diagnose electrical and mechanical problems before they turn into costly failures. Instead of relying on guesswork, technicians can instantly identify abnormal heat patterns and verify faults with a built-in digital multimeter.

BSIDE offers two popular thermal imaging multimeters—the SH6 and SH8. At first glance, they look almost identical, sharing the same touchscreen interface, multimeter functions, battery, and operating system. However, several hardware improvements make the SH8 the better choice for users who require higher image quality and more precise thermal inspections.

In this article, we'll compare both models in real-world applications to help you choose the right tool.

---

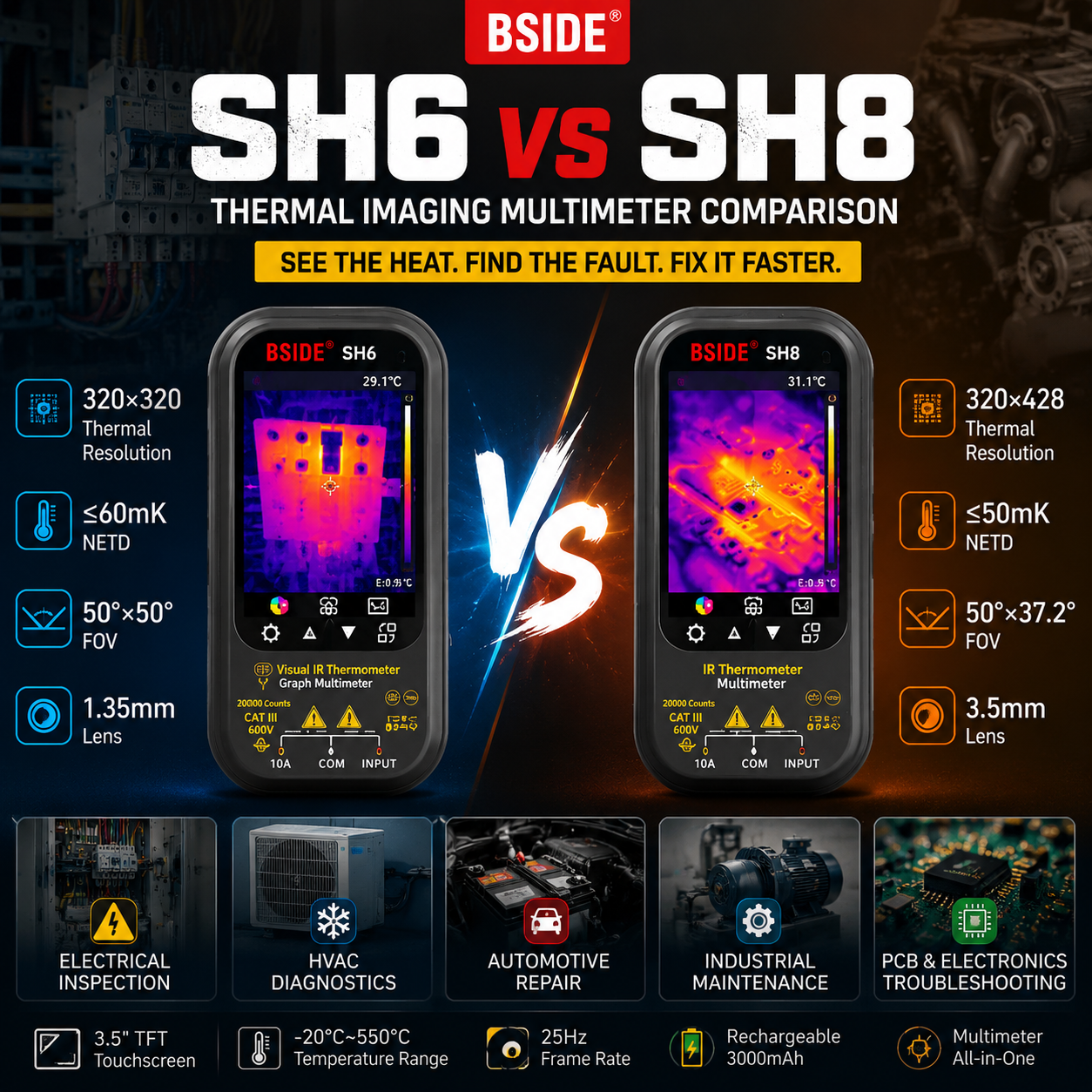

Specifications at a Glance



---

1. Higher Thermal Resolution

One of the most noticeable upgrades on the SH8 is its 320 × 428 thermal resolution, compared with 320 × 320 on the SH6.

That means the SH8 captures more temperature data in every image, allowing technicians to distinguish smaller components more clearly.

This becomes especially useful when inspecting:

• Circuit breakers
• PCB components
• Automotive electrical systems
• Battery terminals
• Solar connectors
• Industrial control cabinets

If your work involves finding small hot spots, the additional resolution can make a significant difference.

---

2. Better Thermal Sensitivity (NETD)

Both cameras can detect temperature differences, but the SH8 improves thermal sensitivity from ≤60 mK to ≤50 mK.

Why does this matter?

Lower NETD means the camera can distinguish much smaller temperature variations.

In practice, this helps detect:

• Loose electrical terminals before overheating becomes obvious
• Early-stage bearing failures
• Slightly overloaded circuits
• Battery cells beginning to warm unevenly
• HVAC airflow issues

These are exactly the kinds of faults that often go unnoticed with less sensitive thermal cameras.

---

3. A Narrower Field of View for Greater Detail

The SH6 offers a wider 50° × 50° field of view.

The SH8 uses 50° × 37.2°, creating a more focused image.

This makes the SH8 especially useful when inspecting equipment from a distance or when more detail is needed within the inspection area.

Typical applications include:

• Electrical cabinets
• Distribution boards
• Industrial machinery
• Motor terminals
• EV battery components

---

4. Longer Lens Focal Length

The SH8 upgrades the thermal lens from 1.35 mm to 3.5 mm.

Although this may sound like a small specification change, it provides noticeable advantages in professional inspections.

A longer focal length generally offers:

• Better target definition
• Improved image clarity
• Easier inspection from safer distances
• More accurate hotspot identification

For technicians working around energized electrical equipment, maintaining additional distance while still obtaining a detailed thermal image is a valuable benefit.

---

5. What Stays the Same?

Despite the hardware upgrades, both models continue to share many of the same professional features.

Both include:

• Professional digital multimeter
• AC/DC voltage and current measurement
• Resistance, continuity and capacitance
• Frequency and duty cycle
• 25Hz image refresh
• Type-C charging
• 3000mAh rechargeable battery
• 3.5-inch capacitive touchscreen
• Temperature measurement from -20°C to 550°C

For everyday electrical diagnostics, either model provides an excellent all-in-one solution.

---

Which Model Should You Choose?

Choose the SH6 if:

✔ You perform general electrical maintenance

✔ HVAC troubleshooting

✔ Home inspections

✔ Facility maintenance

✔ You want excellent performance at a lower cost

---

Choose the SH8 if:

✔ You frequently inspect industrial equipment

✔ You diagnose EV battery systems

✔ You work with PCB electronics

✔ You inspect solar installations

✔ You require higher thermal detail

✔ You want the most advanced thermal imaging available in this product line

---

Real-World Applications

The SH8 is particularly well suited for:

Electricians

Locate loose terminals, overloaded circuits, and overheating breakers before failure occurs.

HVAC Technicians

Identify compressor overheating, airflow restrictions, and electrical faults quickly.

Automotive Technicians

Inspect battery systems, alternators, relays, wiring harnesses, and electric vehicle components.

Industrial Maintenance

Detect abnormal motor temperatures, bearing failures, inverter hotspots, and control cabinet issues before unexpected downtime.

---

Final Verdict

Both the BSIDE SH6 and SH8 combine thermal imaging and a professional digital multimeter into one compact diagnostic tool.

If your daily work focuses on routine maintenance and electrical troubleshooting, the SH6 delivers excellent valuewith dependable thermal imaging and comprehensive multimeter functions.

However, if your work demands greater thermal detail, improved sensitivity, and more precise inspections—especially in industrial environments, EV servicing, or advanced diagnostics—the SH8 is the stronger choice.

Its higher thermal resolution, lower NETD, optimized field of view, and longer focal length make it the preferred option for professionals who rely on thermal imaging every day.

---
