BSIDE OT3 Mini Handheld Oscilloscope 10MHz 48MSa/s with Probe
Pairs well with
BSIDE OT3 Mini Handheld Oscilloscope 10MHz 48MSa/s with Probe
Product details
Description

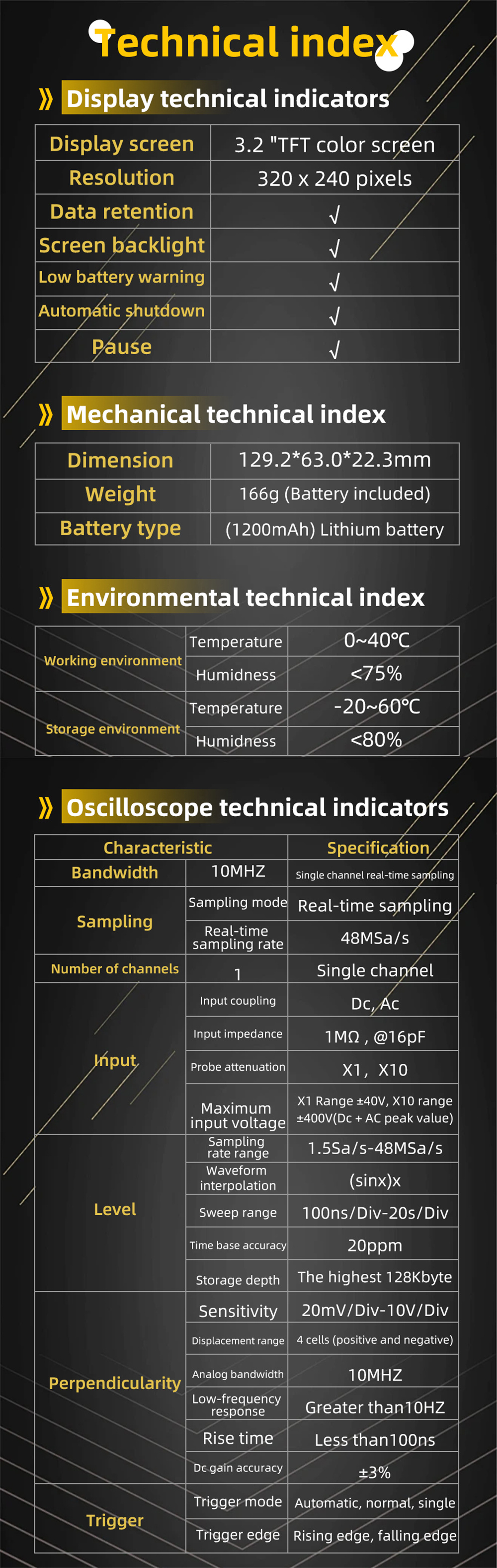

Display Technical Indicators:
- Display Screen: 3.2" TFT color screen
- Resolution: 320 x 240 pixels
- Data Retention: Yes
- Screen Backlight: Yes
- Low Battery Warning: Yes
- Automatic Shutdown: Yes
- Pause: Yes
Mechanical Technical Index:

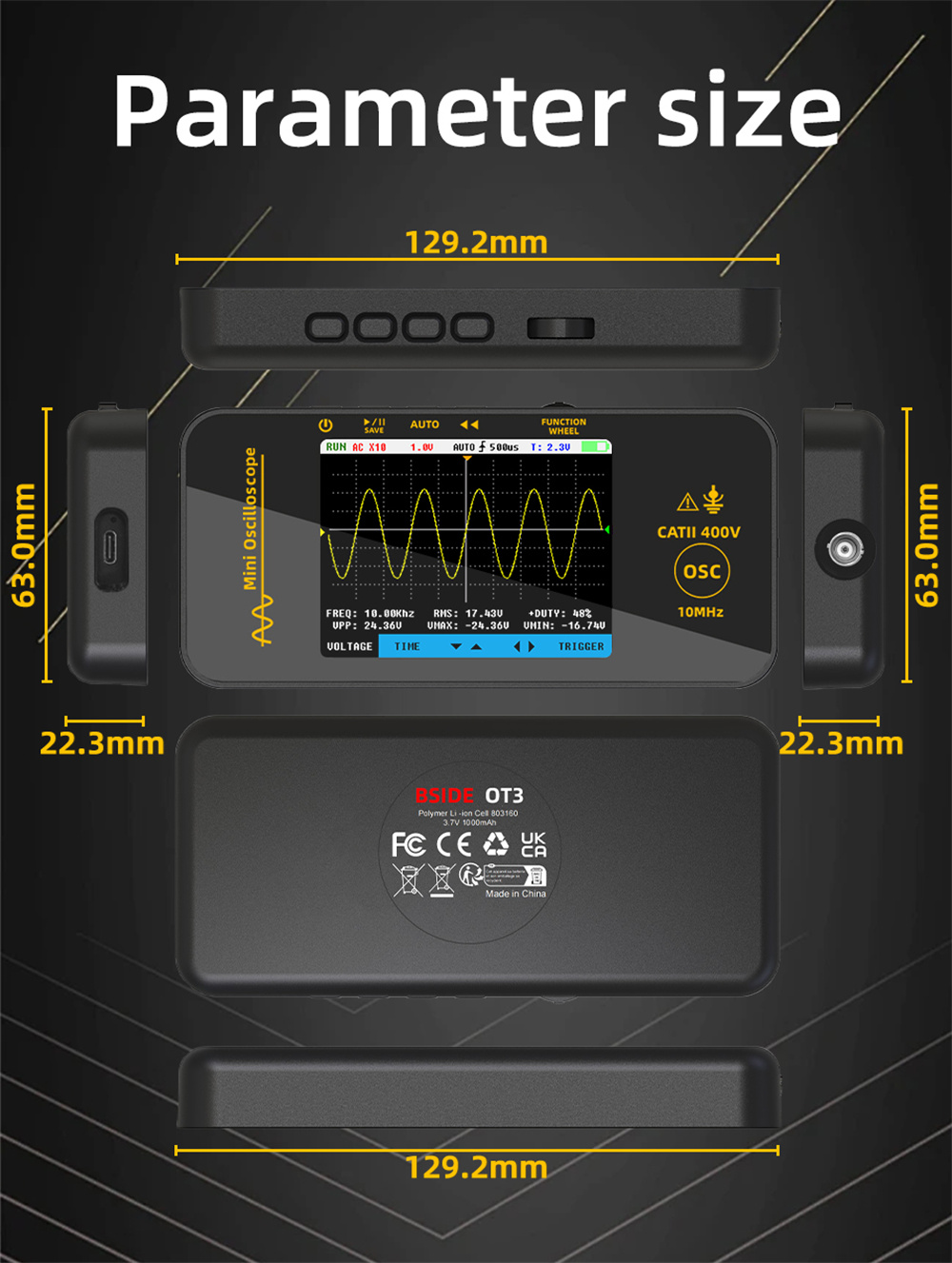

- Dimension: 129.2 x 63.0 x 22.3 mm
- Weight: 166g (battery included)

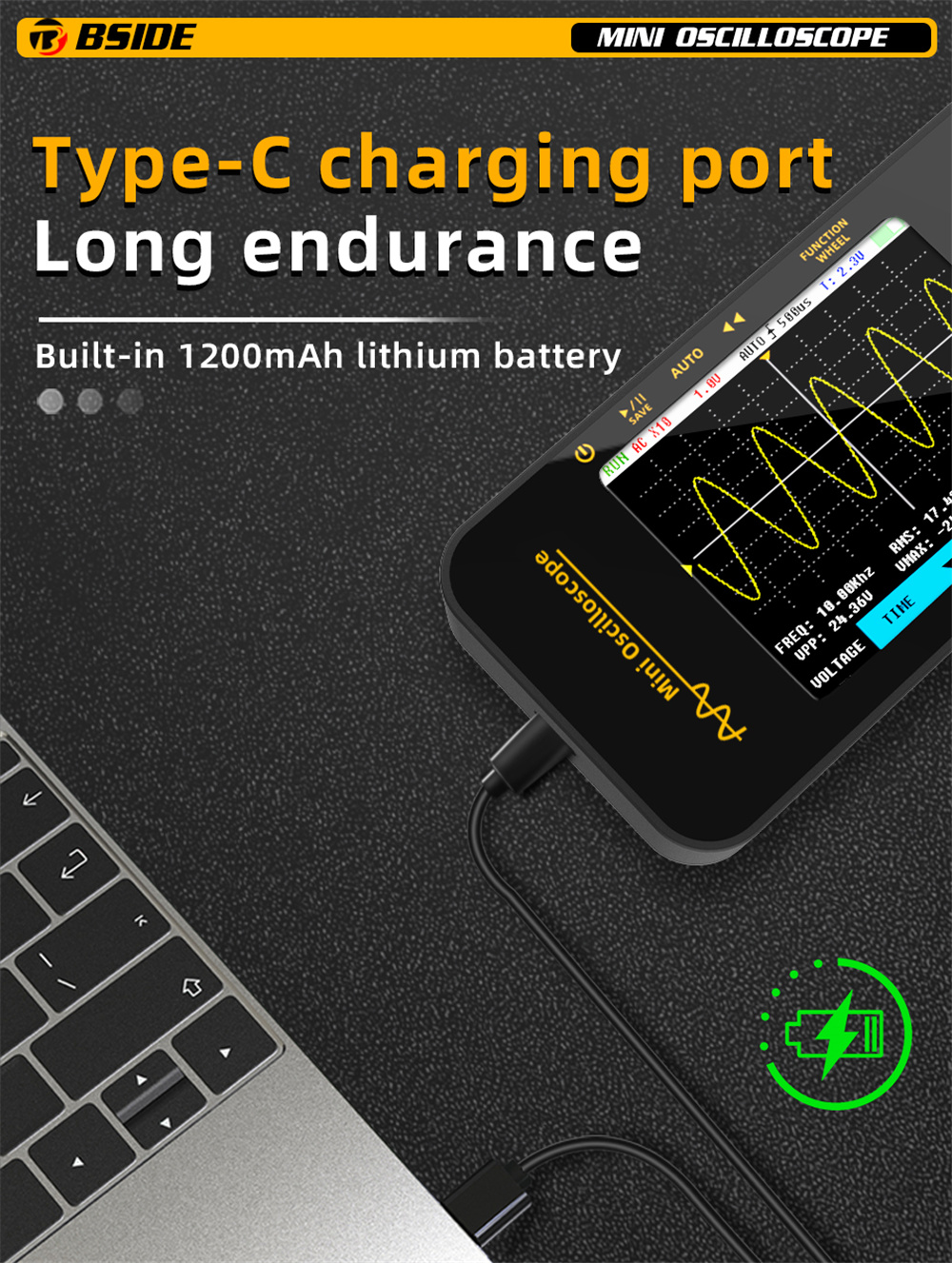

- Battery Type: 1200mAh Lithium battery
Environmental Technical Index:
- Working Environment:
- Temperature: 0 ~ 40℃
- Humidity: ≤75%
- Storage Environment:
- Temperature: -20 ~ 60℃
- Humidity: <80%
Oscilloscope Technical Indicators:
- Bandwidth: 10MHz
- Sampling Mode: Real-time sampling
- Real-time Sampling Rate: 48MSa/s
- Number of Channels: 1 single channel
- Input Coupling: DC, AC
- Input Impedance: 1MΩ, @16pF
- Probe Attenuation: X1, X10
- Maximum Input Voltage:
- X1 Range: ±40V
- X10 Range: ±400V (DC + AC peak value)
- Sampling Rate Range: 1.5Sa/s - 48MSa/s
- Waveform Interpolation: (sinx)/x
- Sweep Range: 100ns/Div to 20s/Div
- Time Base Accuracy: 20ppm
- Storage Depth: Up to 128kB
- Sensitivity: 20mV/Div - 10V/Div
- Displacement Range: 4 cells (positive and negative)
- Analog Bandwidth: 10MHz
- Low-frequency Response: Greater than 10Hz
- Rise Time: Less than 100ns
- DC Gain Accuracy: ±3%
- Trigger Mode: Automatic, normal, single
- Trigger Edge: Rising edge, falling edge
Features:
1. High-Resolution Display:
The BSIDE Mini OT3 Oscilloscope features a 3.2" TFT color screen with a resolution of 320 x 240 pixels, providing clear and detailed visuals for precise measurements and analysis.
2. Compact and Lightweight:

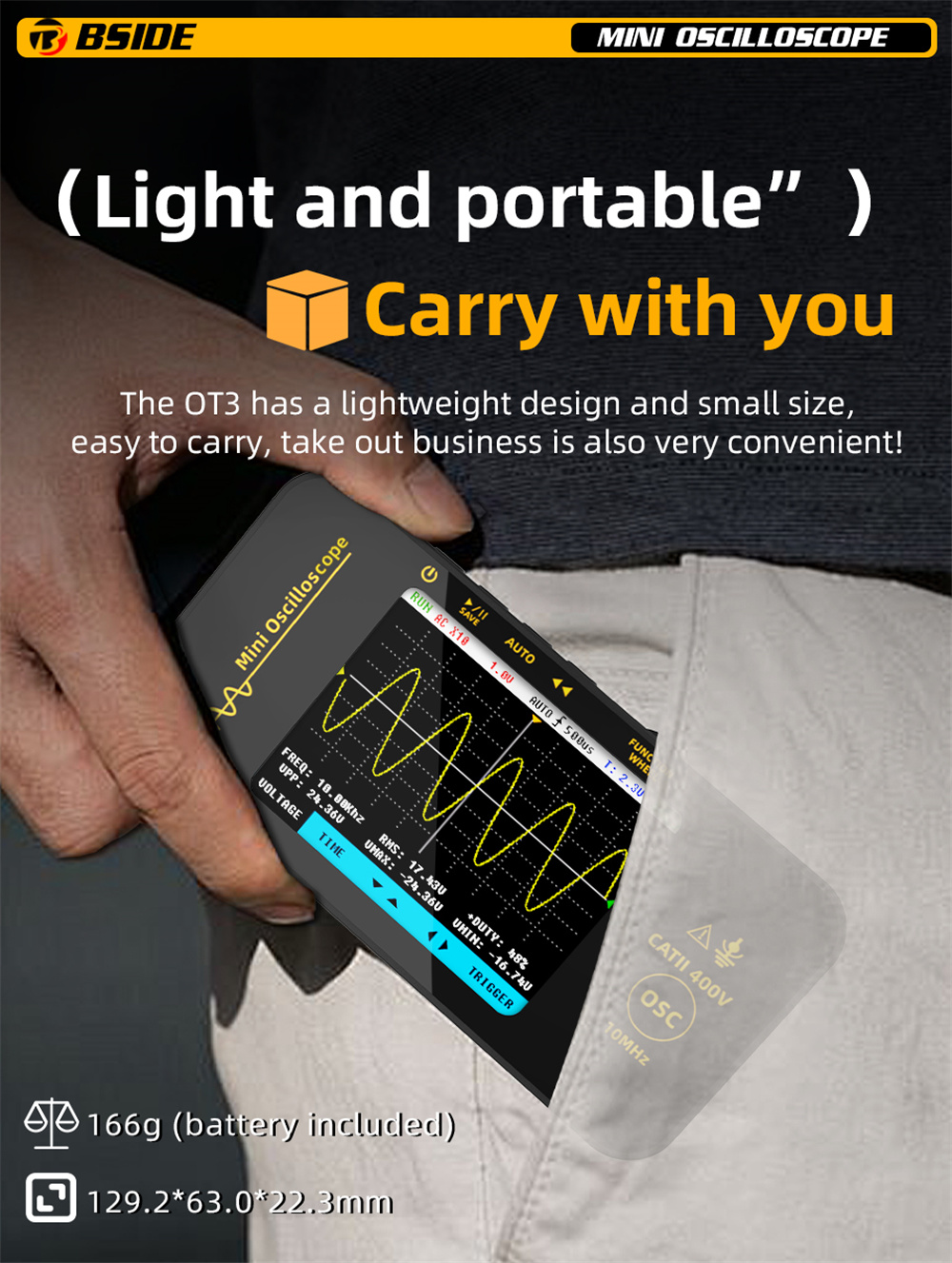

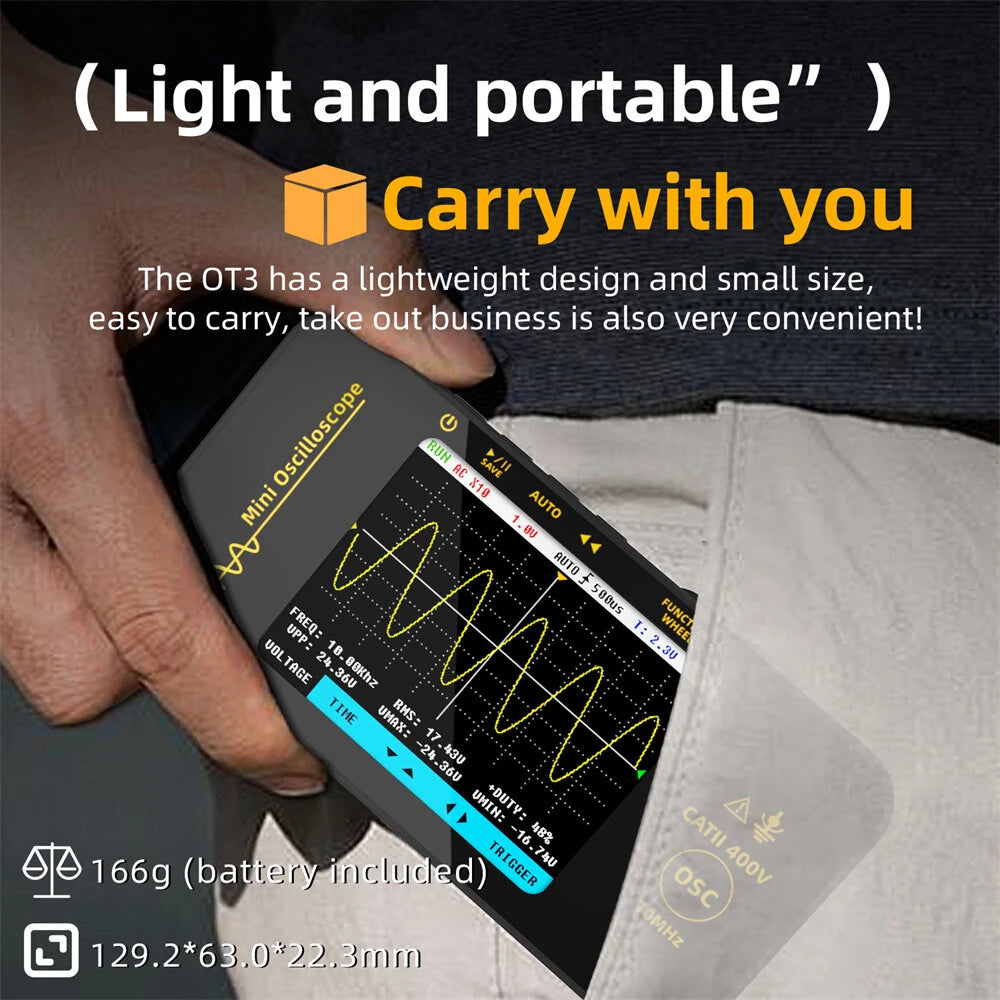

With dimensions of 129.2 x 63.0 x 22.3 mm and a weight of just 166g (battery included), this oscilloscope is highly portable and convenient for fieldwork and on-the-go diagnostics.
3. Versatile Input Options:
The device supports both DC and AC input coupling with a maximum input voltage of up to ±400V, catering to a wide range of testing scenarios and ensuring compatibility with various signals.
4. Real-Time Sampling:
The oscilloscope offers a real-time sampling rate of 48MSa/s, enabling accurate and fast signal capture for dynamic and transient events.
5. User-Friendly Features:
Equipped with functionalities such as automatic shutdown, low battery warning, screen backlight, and data retention, the oscilloscope ensures ease of use and efficient power management.
Package Included:

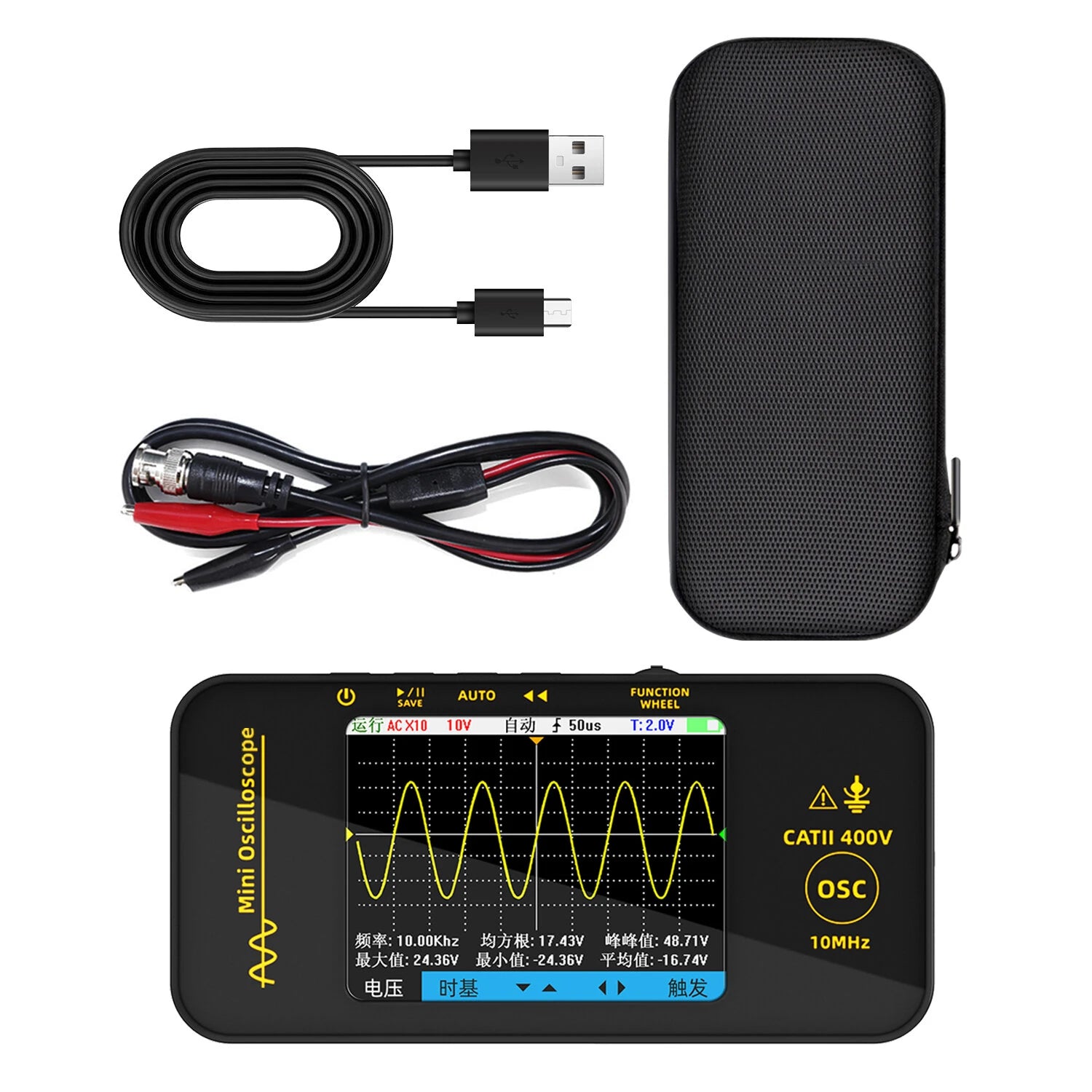

1 x BSIDE Mini OT3 Oscilloscope Set
