BSIDE A5/A5X Smart Voltage Tester with NCV & Ohm/Hz Test
$20.86
🚚
📦
FREE RETURN WARRANTY
30-Day No-Hassle Returns
3-Year Warranty
30-Day No-Hassle Returns
3-Year Warranty
Pairs well with
BSIDE A5/A5X Smart Voltage Tester with NCV & Ohm/Hz Test
$20.86
Product details
Description
Specifications
Hign-concerned Chemical:None
Certification:CE,FCC,RoHS
Model Number:Digital Voltage Meter
Origin:Mainland China
Brand Name:BSIDE
Dimensions:13.9*5.3*3.2 cm
DIY Supplies:ELECTRICAL
Power Supply:Battery
Display Type:Digital Only
Color LCD MAX Display:6000 counts
True RMS:Yes
VFC Voltage test:Yes
DC AC Voltage test:620V
DC/AC Current test:610mA
Resistance test:60M ohm
Capacitance test:60mF
Frequency test:10KHz
Temperature test C:0-1000C
Temperature test F:32-1832F
V-Alert(Non-contact Voltage Detection):Yes
Diode test:Yes
Continuity test:Yes
Live Wire Check test:Yes
Ambient Temperature test:0-50C
Battery test:1.5V 3.7V 9V 12V
Power:1.5V (AAA)*2
Size:13.9*5.3*3.2 cm
Weight:92g
Product introduction:
This products belong to the latest generation of BSIDE brand Smart Digital multimeter Voltage detector Tester！

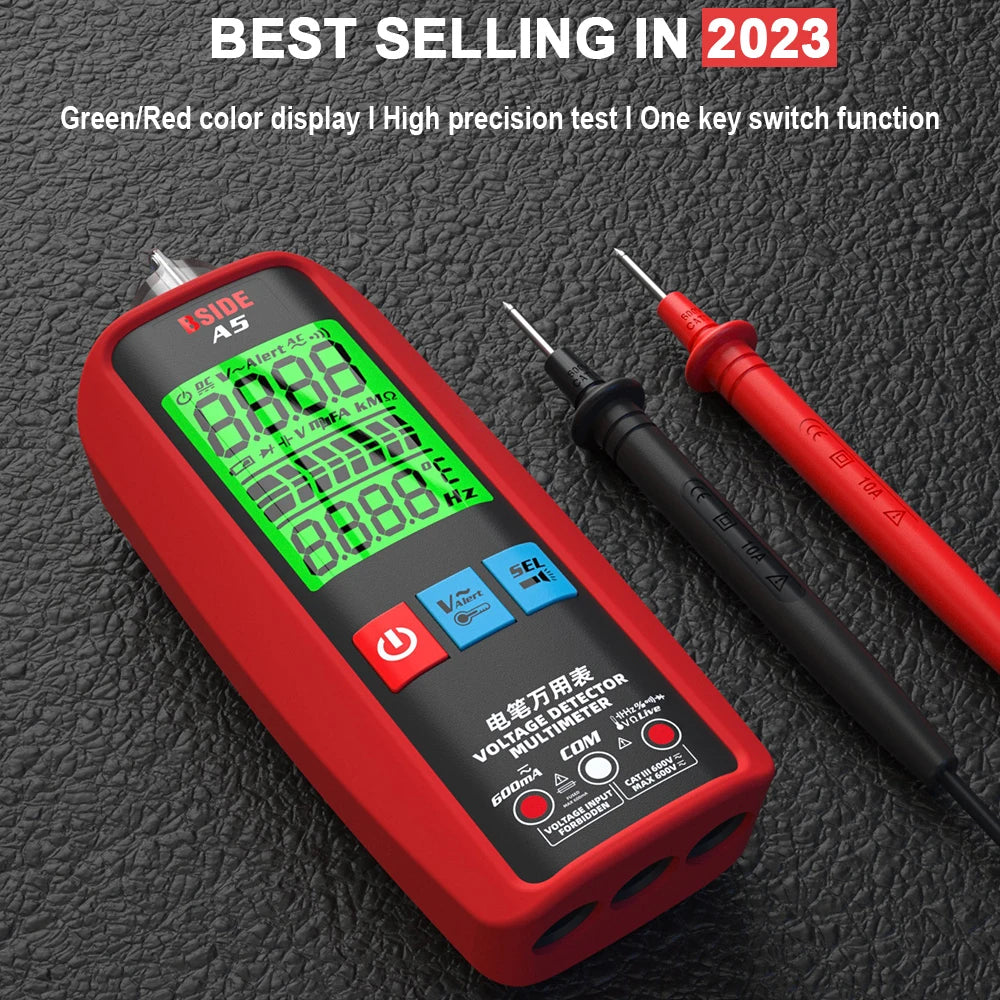

The Green/red color display design leaves an excellent user experience for buyers;
Overload protection, The easy-to use design is well recognized by buyers.
Exquisite appearance / reliable performance / complete functions, can meet the needs of different groups of people, and is very suitable as gift.
Equipped with a High-quality cloth bag made of EVA material, it is very portable.
Features:
Large LCD display
3 results display screen
Auto and manual mode
Triple-mode alarm
Capacitance, diode, VFC and temperature test
Live-wire check, continuity and V-alert test
AC/DC voltage and current, resistance, frequency test
Auto range, Auto power off, data hold, low battery indication
Specifications:
Display: 6000 counts.
True RMS: Yes.
Screen: 2.2 inch
DC Voltage: 0-620V(DC mode)/0.8-620V(Auto mode) 0.01V ±(0.8%+3)

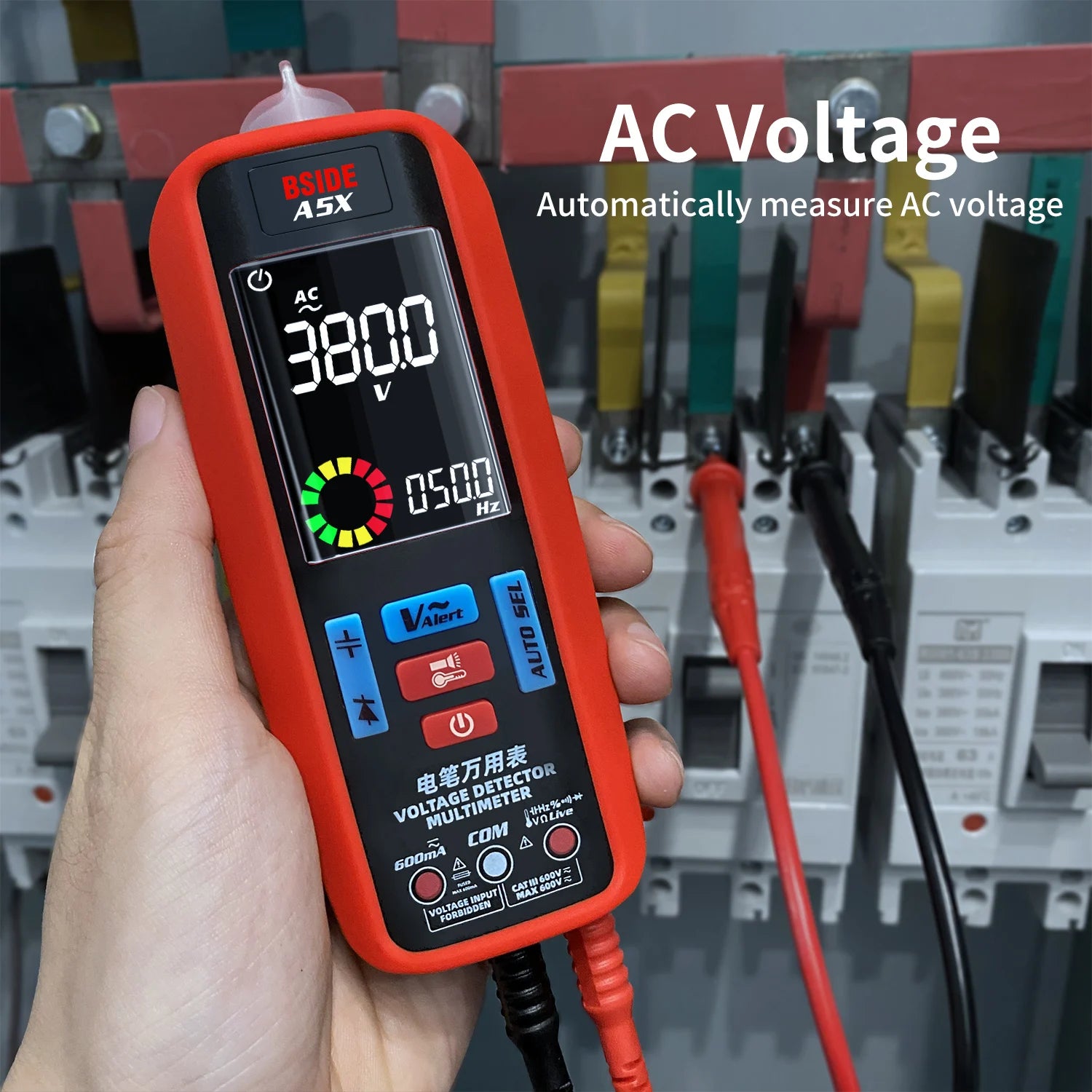

AC Voltage:
0-620V(DC mode)/0.8-620V(Auto mode) 0.01V ±(1.2%+5); 10-620V(VFC Mode) 1V (4.0%+3)
DC Current: 1.0-610mA 0.1mA ±(1.5%+3)
AC Current: 1.0-610mA(40-1000Hz) 0.1mA ±(1.5%+3)
Resistance: 0Ω-6MΩ 0.1Ω ±(1.2%+3)；6MΩ-60MΩ 0.1Ω ±(2.0%+10)
Capacitance: 0.5µF-6mF 0.001µF ±(3.5%+8); 6mF-60.00mF 0.001µF ±(4.5%+10)
Frequency: 0-9999Hz(900mVrms-20Vrms) 0.001Hz ±(2.0%+10)
Temperature: 0-50℃(32-122℉) 1℃/1℉ ±(1.5%+2); 50-1000℃(122-1832℉) 1℃/1℉ ±(2.0%+3)
V-Alert(Non-contact Voltage Detection): Yes
Diode: Measures diodes within 3V
Continuity: If the resistance is less than 50Ω, the beeper sounds
Live Wire Check: Yes
Ambient Temperature: 0-50℃ ±2℃
Power: 1.5V (AAA) x 2
Size: 139.7 x53.7 x 32.8 mm
Weight: 92g

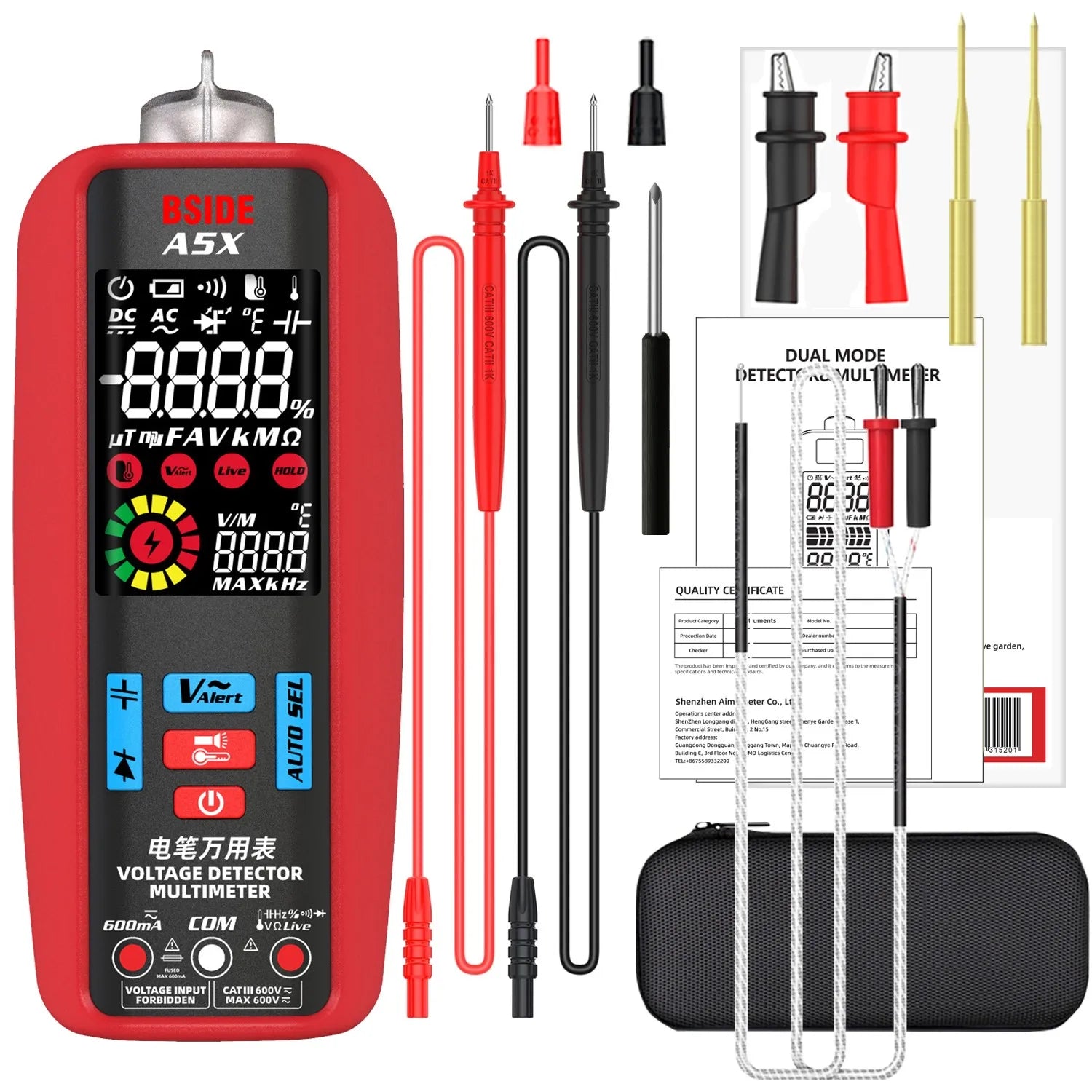

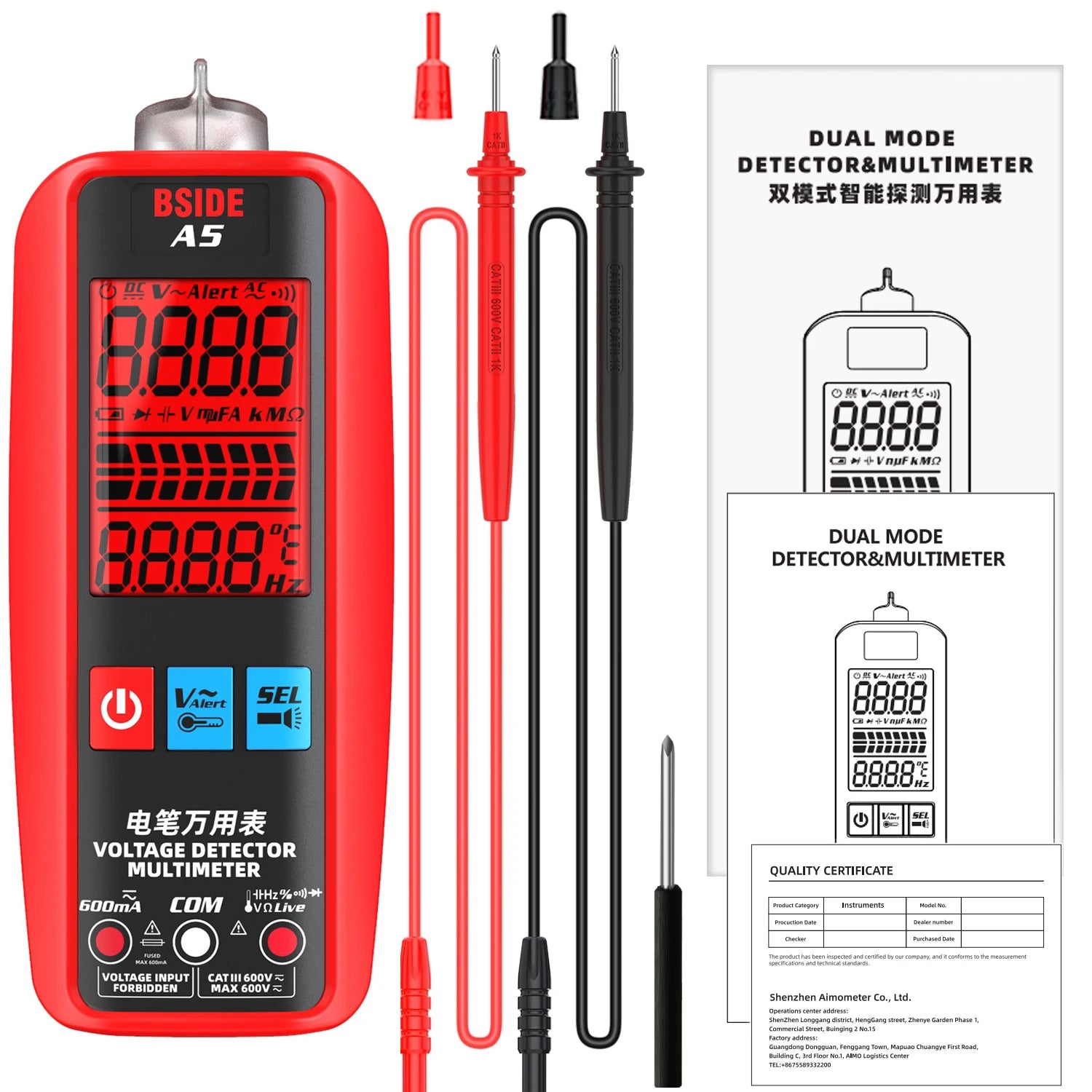

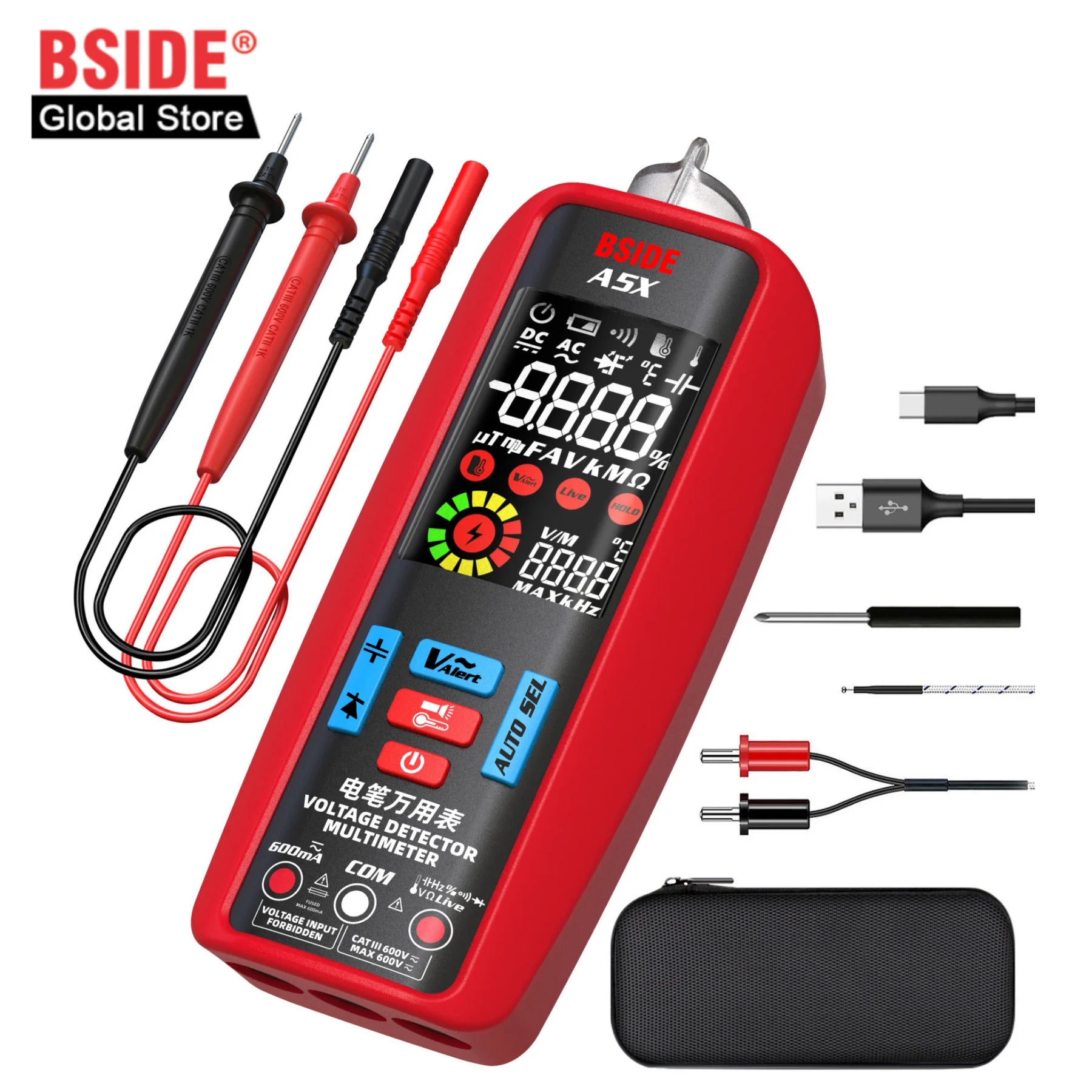

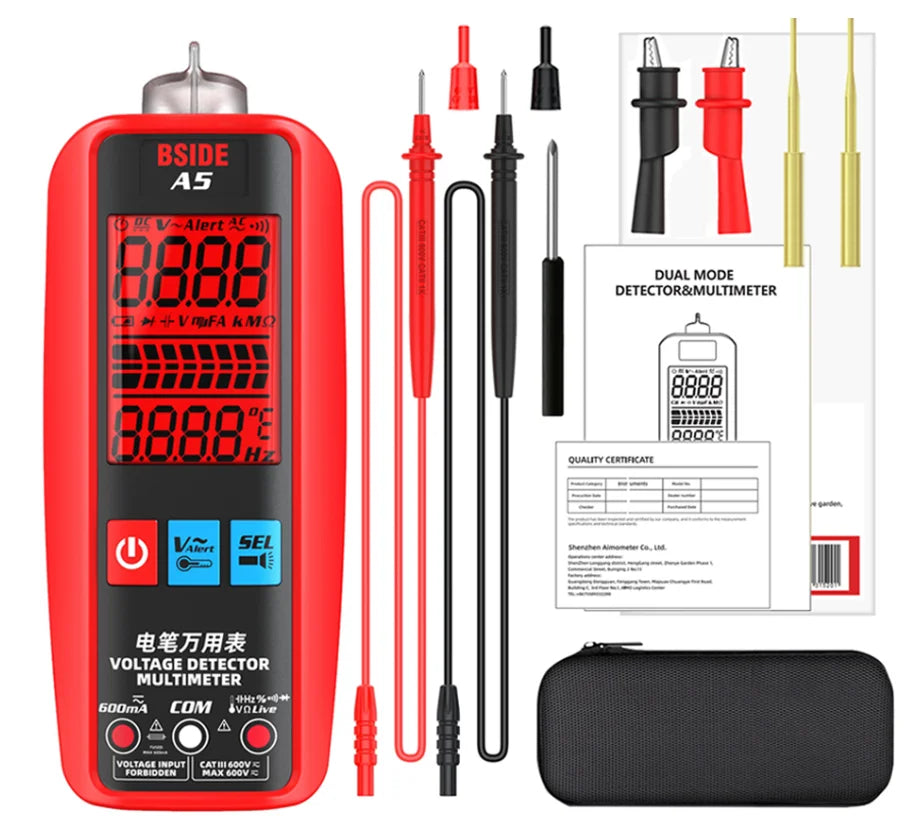

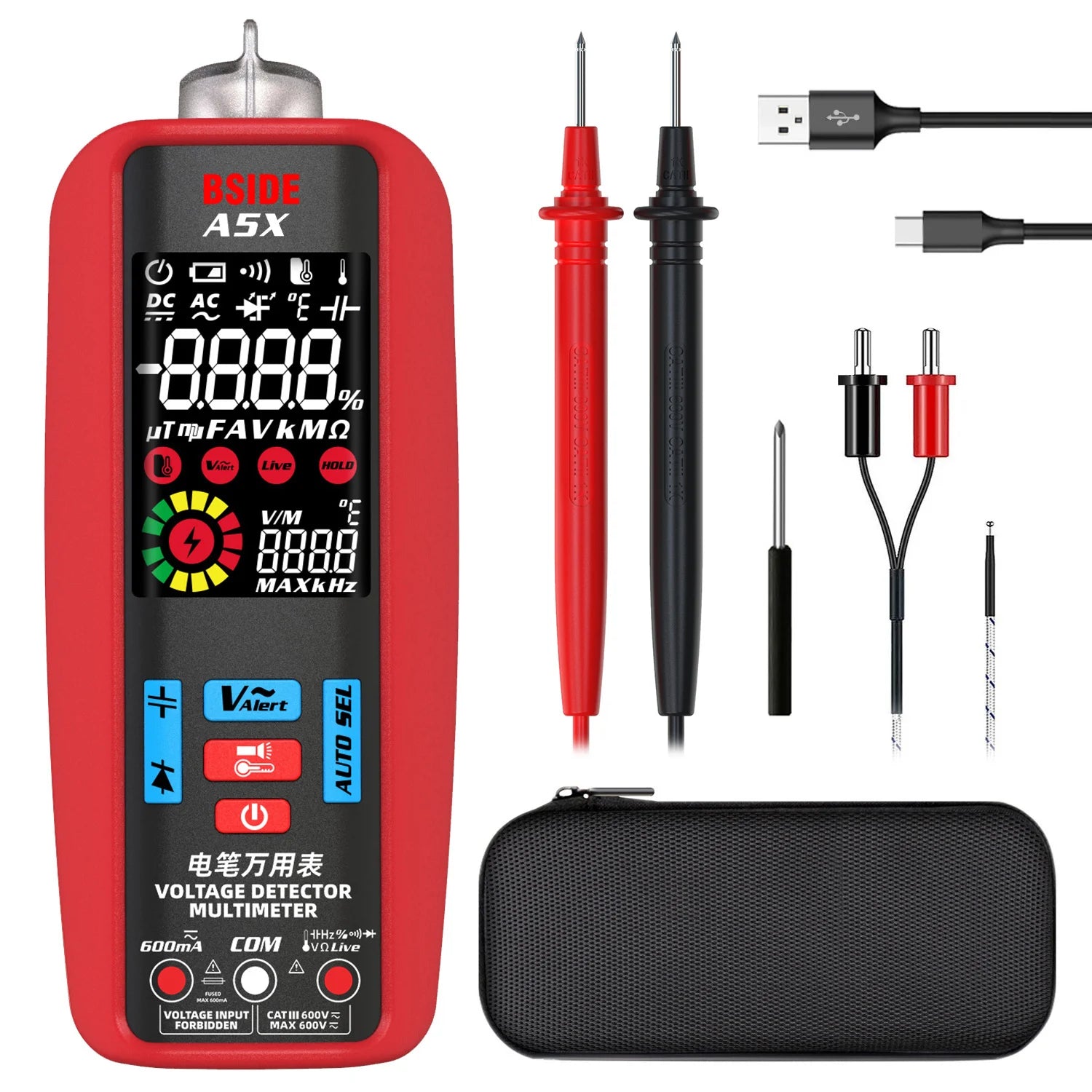

Package Includes:
1 x Multimeter
1 x Test Leadss
1 x Thermocouple
1 x Screwdriver
1 x User Manual
1 * USB charging cable(A5X)
1 x Carrying Case(A5 Tool kits)
2 x Special tip test probe(A5 Tool kits)
1 x C3104 Alligator Clip(A5 Tool kits)
Hign-concerned Chemical:None
Certification:CE,FCC,RoHS
Model Number:Digital Voltage Meter
Origin:Mainland China
Brand Name:BSIDE
Dimensions:13.9*5.3*3.2 cm
DIY Supplies:ELECTRICAL
Power Supply:Battery
Display Type:Digital Only
Color LCD MAX Display:6000 counts
True RMS:Yes
VFC Voltage test:Yes
DC AC Voltage test:620V
DC/AC Current test:610mA
Resistance test:60M ohm
Capacitance test:60mF
Frequency test:10KHz
Temperature test C:0-1000C
Temperature test F:32-1832F
V-Alert(Non-contact Voltage Detection):Yes
Diode test:Yes
Continuity test:Yes
Live Wire Check test:Yes
Ambient Temperature test:0-50C
Battery test:1.5V 3.7V 9V 12V
Power:1.5V (AAA)*2
Size:13.9*5.3*3.2 cm
Weight:92g
Product introduction:
This products belong to the latest generation of BSIDE brand Smart Digital multimeter Voltage detector Tester！
The Green/red color display design leaves an excellent user experience for buyers;
Overload protection, The easy-to use design is well recognized by buyers.
Exquisite appearance / reliable performance / complete functions, can meet the needs of different groups of people, and is very suitable as gift.
Equipped with a High-quality cloth bag made of EVA material, it is very portable.
Features:
Large LCD display
3 results display screen
Auto and manual mode
Triple-mode alarm
Capacitance, diode, VFC and temperature test
Live-wire check, continuity and V-alert test
AC/DC voltage and current, resistance, frequency test
Auto range, Auto power off, data hold, low battery indication
Specifications:
Display: 6000 counts.
True RMS: Yes.
Screen: 2.2 inch
DC Voltage: 0-620V(DC mode)/0.8-620V(Auto mode) 0.01V ±(0.8%+3)
AC Voltage:
0-620V(DC mode)/0.8-620V(Auto mode) 0.01V ±(1.2%+5); 10-620V(VFC Mode) 1V (4.0%+3)
DC Current: 1.0-610mA 0.1mA ±(1.5%+3)
AC Current: 1.0-610mA(40-1000Hz) 0.1mA ±(1.5%+3)
Resistance: 0Ω-6MΩ 0.1Ω ±(1.2%+3)；6MΩ-60MΩ 0.1Ω ±(2.0%+10)
Capacitance: 0.5µF-6mF 0.001µF ±(3.5%+8); 6mF-60.00mF 0.001µF ±(4.5%+10)
Frequency: 0-9999Hz(900mVrms-20Vrms) 0.001Hz ±(2.0%+10)
Temperature: 0-50℃(32-122℉) 1℃/1℉ ±(1.5%+2); 50-1000℃(122-1832℉) 1℃/1℉ ±(2.0%+3)
V-Alert(Non-contact Voltage Detection): Yes
Diode: Measures diodes within 3V
Continuity: If the resistance is less than 50Ω, the beeper sounds
Live Wire Check: Yes
Ambient Temperature: 0-50℃ ±2℃
Power: 1.5V (AAA) x 2
Size: 139.7 x53.7 x 32.8 mm
Weight: 92g
Package Includes:
1 x Multimeter
1 x Test Leadss
1 x Thermocouple
1 x Screwdriver
1 x User Manual
1 * USB charging cable(A5X)
1 x Carrying Case(A5 Tool kits)
2 x Special tip test probe(A5 Tool kits)
1 x C3104 Alligator Clip(A5 Tool kits)
