BSIDE O1 Handheld Oscilloscope Multimeter with DC/AC Test
$49.33
🚚
📦
FREE RETURN WARRANTY
30-Day No-Hassle Returns
3-Year Warranty
30-Day No-Hassle Returns
3-Year Warranty
Pairs well with
BSIDE O1 Handheld Oscilloscope Multimeter with DC/AC Test
$49.33
Product details
Description
Specifications
Hign-concerned Chemical:None
IS Battery Demountable:No
Model Number:BSIDE O1 Oscilloscope Multimeter
Certification:CE,FCC,RoHS
Origin:Mainland China
Real Time Sampling Rate:48MSa/s
Brand Name:BSIDE
DIY Supplies:ELECTRICAL
Band Width:10MHz
Digital Channels:1
BSIDE Model:O1
Display Size:2.9 Inches & Under
BSIDE O1 New Graph Multimeter Handheld Oscilloscope Professional Digital Multiteter DC AC Current Capacitance Ohm Diode Hz Tester.
Product Introduction:
[Multimeter Tester Mode]: BSIDE digital multimeter tester measures MAX/MIN/AVG value, capacitance, ac and dc current, diode, ac and dc voltage, resistance, frequency, continuity and v-alert.

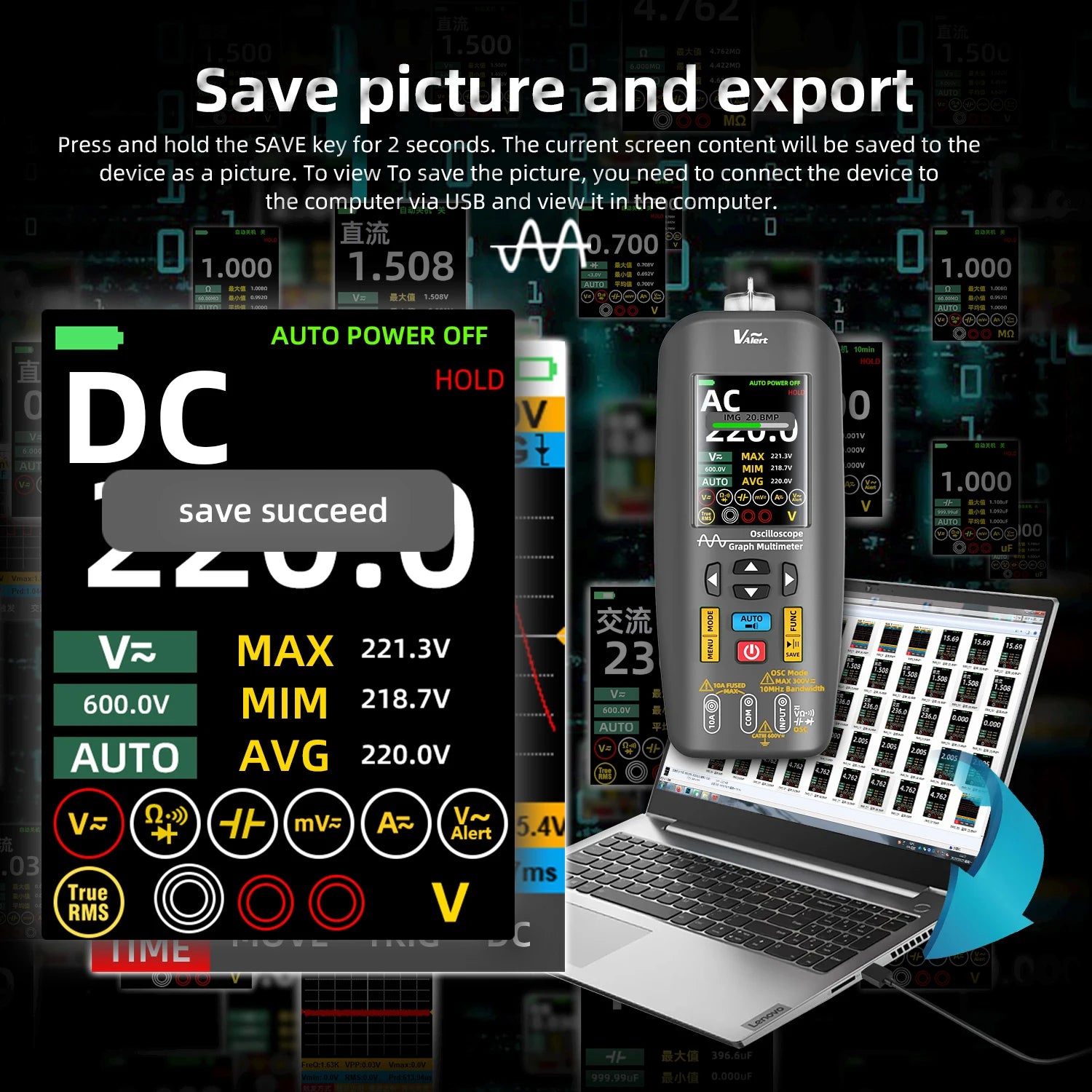

[Oscilloscope Mode]: The smart digital multimeter also can be used as a oscilloscope, it features 10MHz bandwith, 48MSa/s real-time sampling rate, auto-calibration function, memory function, etc. [Data Storage and Export]: The data of this graph oscilloscope meter can be saved and exported to your flash drive, computer, PC, etc.
[Rechargeable]: The handheld oscilloscope multimeter come with a rechargeable battery & charging cable, ensuring that you never have to worry about running out of power during your measurements.
[Carrying Case]: The digital oscilloscope multimeter comes with a high quality carrying case, perfect for use while you're on the go.
Features:
2-in-1 oscilloscope multimeter
Portable color display voltmeter
Rechargeable graph scope tester
True rms digital multimeter tester
Measures capacitance, ac/dc current, diode
Measures ac/dc voltage, continuity, resistance and v-alert
Tested data is storaged and exported to your computer
Low battery indication with flashlight design
Specifications:
MAX Display: 6000 counts
Screen Size: 2.8 inch
Bandwith: 10MHz
Real-time smaple rate: 48MSa/s
Input Impedance: 1MΩ,@16pf
Maximum input voltage: 300V (DC+AC peak)
Horizontal SEC range: 100ns/div -20s/div
Vertical sensitivity: 20mV/div -100V/div
DC voltage:
60mV 0.01mV ±(1%+5); 600mV/6V/60V 0.1mV/0.001V/0.01V/ ±(0.8%+3); 600V 0.1V ±(1%+5)
AC voltage:
60mV 0.01mV ±(1.2%+5); 600mV/6V/60V 0.1mV/0.001V/0.01V/ ±(1%+3); 600V 0.1V ±(1.2%+5)
DC current: 6A/10A 0.001A/0.01A ±(1.2%+3)
AC current: 6A/10A 0.001A/0.01A ±(1.2%+3)
Resistance:
600Ω 0.1Ω ±(1.2%+5); 6kΩ/60KΩ/600KΩ 0.001KΩ/0.01KΩ/0.1KΩ ±(1.0%+3);
6MΩ 0.001MΩ ±(1.2%+5); 60MΩ 0.01MΩ ±(1.5%+5)
Capacitance: 99.99nF 0.01nF ±(5.0%+20);
999.9nF/9.999µF/99.99µF/999.9µF 0.1nF/0.001µF/0.01µF/0.1µF ±(4.5%+5);
9.999mF/99.99mF 0.001mF/0.01mF ±(5.0%+10)
Diode: Measures diodes within 3V
Continuity: Yes
V-Alert(non-contact voltage detection): Yes
Power: 2000mA battery (rechargeable)
Size: 187 x 74 x 40.5 mm
Weight: 269g

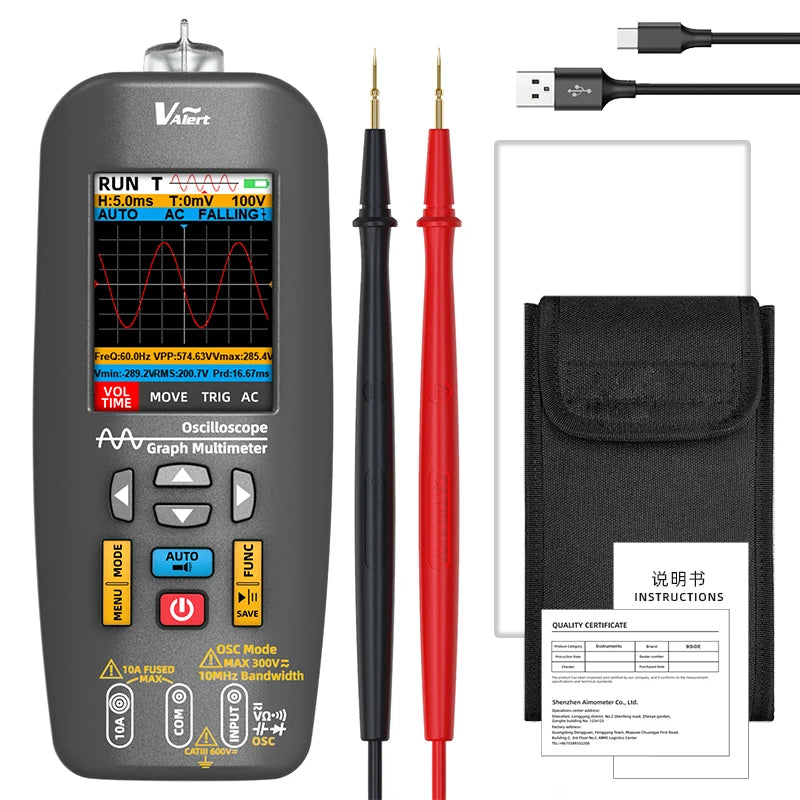

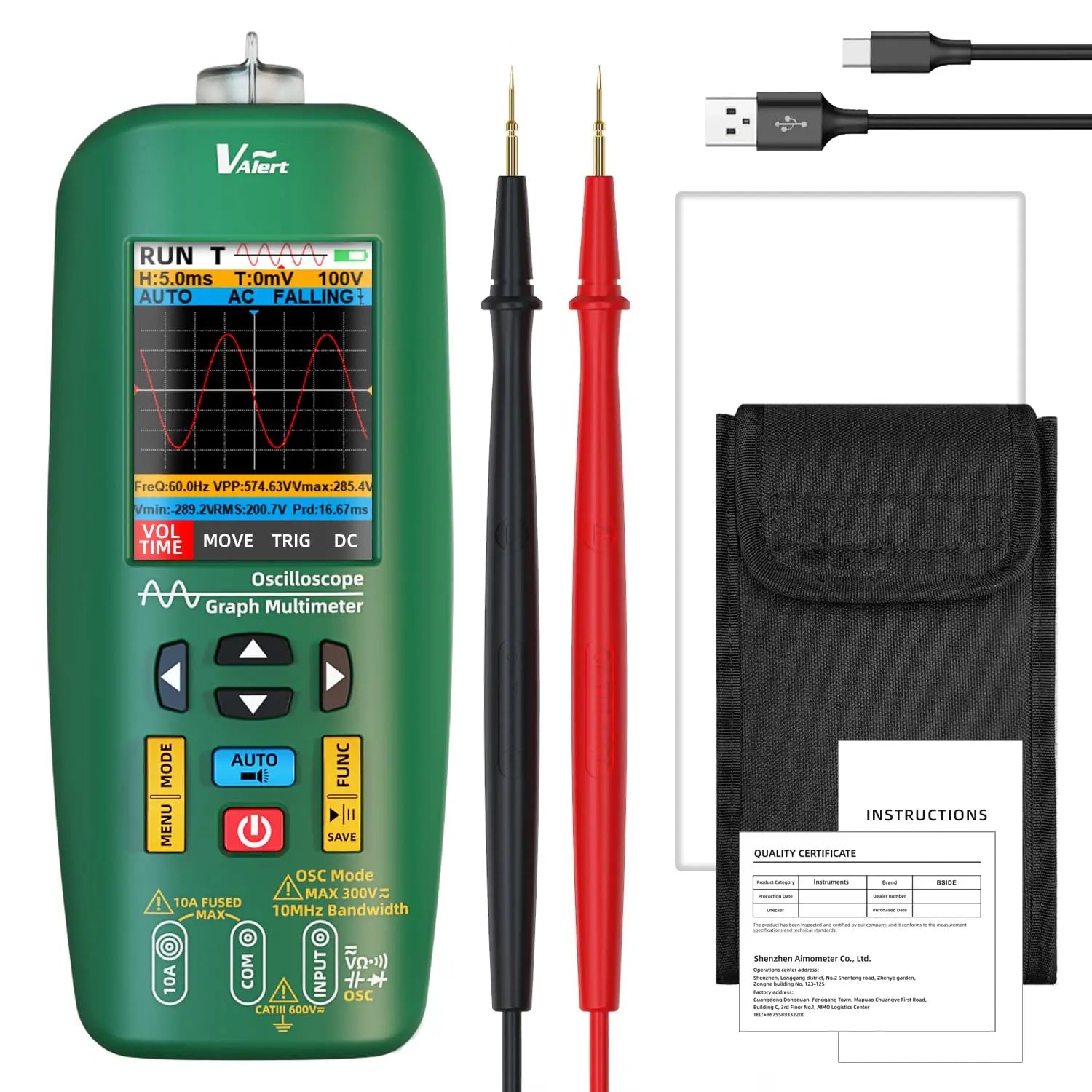

Package Includes:
1 x Handheld Oscilloscope Multimeter
1 x Test Leads
1 x Carrying Case
1 x Charging Cable
1 x User Manual
1 x (Built-in Rechargeable 2000mA Lithium Battery)
Hign-concerned Chemical:None
IS Battery Demountable:No
Model Number:BSIDE O1 Oscilloscope Multimeter
Certification:CE,FCC,RoHS
Origin:Mainland China
Real Time Sampling Rate:48MSa/s
Brand Name:BSIDE
DIY Supplies:ELECTRICAL
Band Width:10MHz
Digital Channels:1
BSIDE Model:O1
Display Size:2.9 Inches & Under
BSIDE O1 New Graph Multimeter Handheld Oscilloscope Professional Digital Multiteter DC AC Current Capacitance Ohm Diode Hz Tester.
Product Introduction:
[Multimeter Tester Mode]: BSIDE digital multimeter tester measures MAX/MIN/AVG value, capacitance, ac and dc current, diode, ac and dc voltage, resistance, frequency, continuity and v-alert.
[Oscilloscope Mode]: The smart digital multimeter also can be used as a oscilloscope, it features 10MHz bandwith, 48MSa/s real-time sampling rate, auto-calibration function, memory function, etc. [Data Storage and Export]: The data of this graph oscilloscope meter can be saved and exported to your flash drive, computer, PC, etc.
[Rechargeable]: The handheld oscilloscope multimeter come with a rechargeable battery & charging cable, ensuring that you never have to worry about running out of power during your measurements.
[Carrying Case]: The digital oscilloscope multimeter comes with a high quality carrying case, perfect for use while you're on the go.
Features:
2-in-1 oscilloscope multimeter
Portable color display voltmeter
Rechargeable graph scope tester
True rms digital multimeter tester
Measures capacitance, ac/dc current, diode
Measures ac/dc voltage, continuity, resistance and v-alert
Tested data is storaged and exported to your computer
Low battery indication with flashlight design
Specifications:
MAX Display: 6000 counts
Screen Size: 2.8 inch
Bandwith: 10MHz
Real-time smaple rate: 48MSa/s
Input Impedance: 1MΩ,@16pf
Maximum input voltage: 300V (DC+AC peak)
Horizontal SEC range: 100ns/div -20s/div
Vertical sensitivity: 20mV/div -100V/div
DC voltage:
60mV 0.01mV ±(1%+5); 600mV/6V/60V 0.1mV/0.001V/0.01V/ ±(0.8%+3); 600V 0.1V ±(1%+5)
AC voltage:
60mV 0.01mV ±(1.2%+5); 600mV/6V/60V 0.1mV/0.001V/0.01V/ ±(1%+3); 600V 0.1V ±(1.2%+5)
DC current: 6A/10A 0.001A/0.01A ±(1.2%+3)
AC current: 6A/10A 0.001A/0.01A ±(1.2%+3)
Resistance:
600Ω 0.1Ω ±(1.2%+5); 6kΩ/60KΩ/600KΩ 0.001KΩ/0.01KΩ/0.1KΩ ±(1.0%+3);
6MΩ 0.001MΩ ±(1.2%+5); 60MΩ 0.01MΩ ±(1.5%+5)
Capacitance: 99.99nF 0.01nF ±(5.0%+20);
999.9nF/9.999µF/99.99µF/999.9µF 0.1nF/0.001µF/0.01µF/0.1µF ±(4.5%+5);
9.999mF/99.99mF 0.001mF/0.01mF ±(5.0%+10)
Diode: Measures diodes within 3V
Continuity: Yes
V-Alert(non-contact voltage detection): Yes
Power: 2000mA battery (rechargeable)
Size: 187 x 74 x 40.5 mm
Weight: 269g
Package Includes:
1 x Handheld Oscilloscope Multimeter
1 x Test Leads
1 x Carrying Case
1 x Charging Cable
1 x User Manual
1 x (Built-in Rechargeable 2000mA Lithium Battery)
