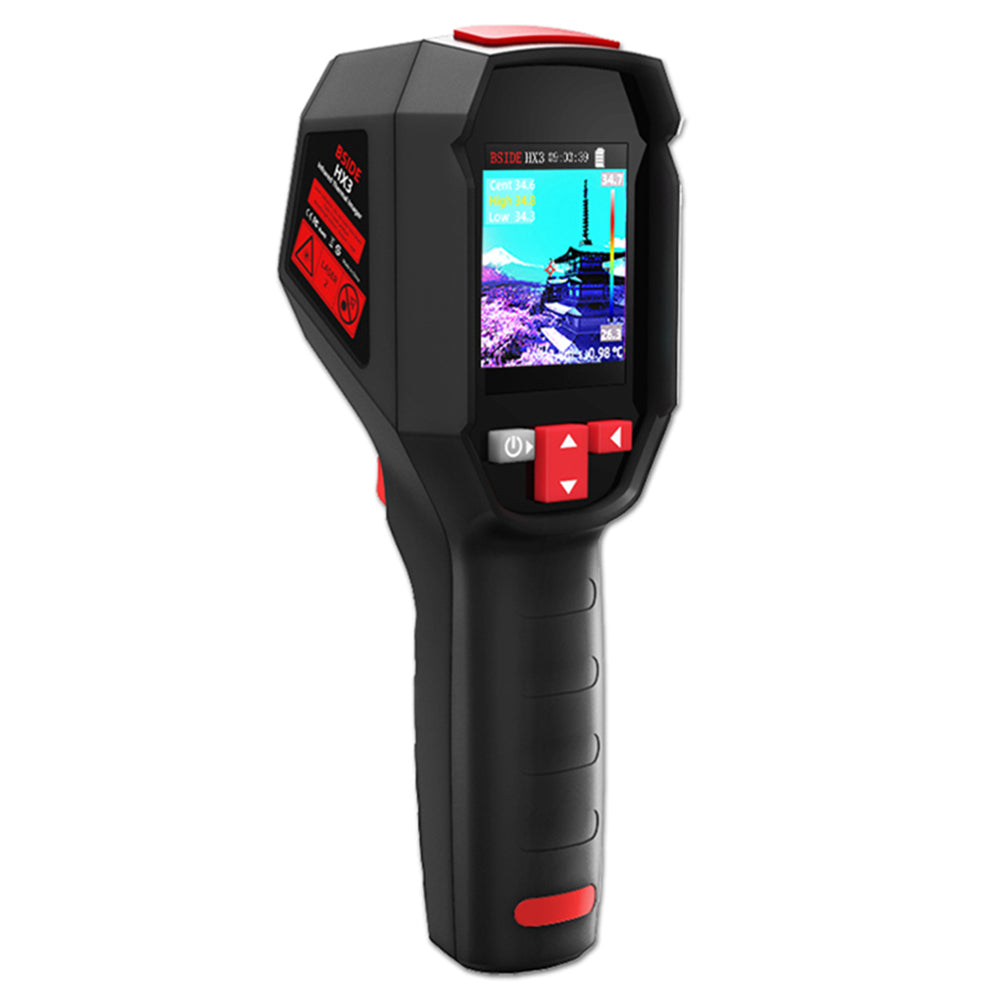

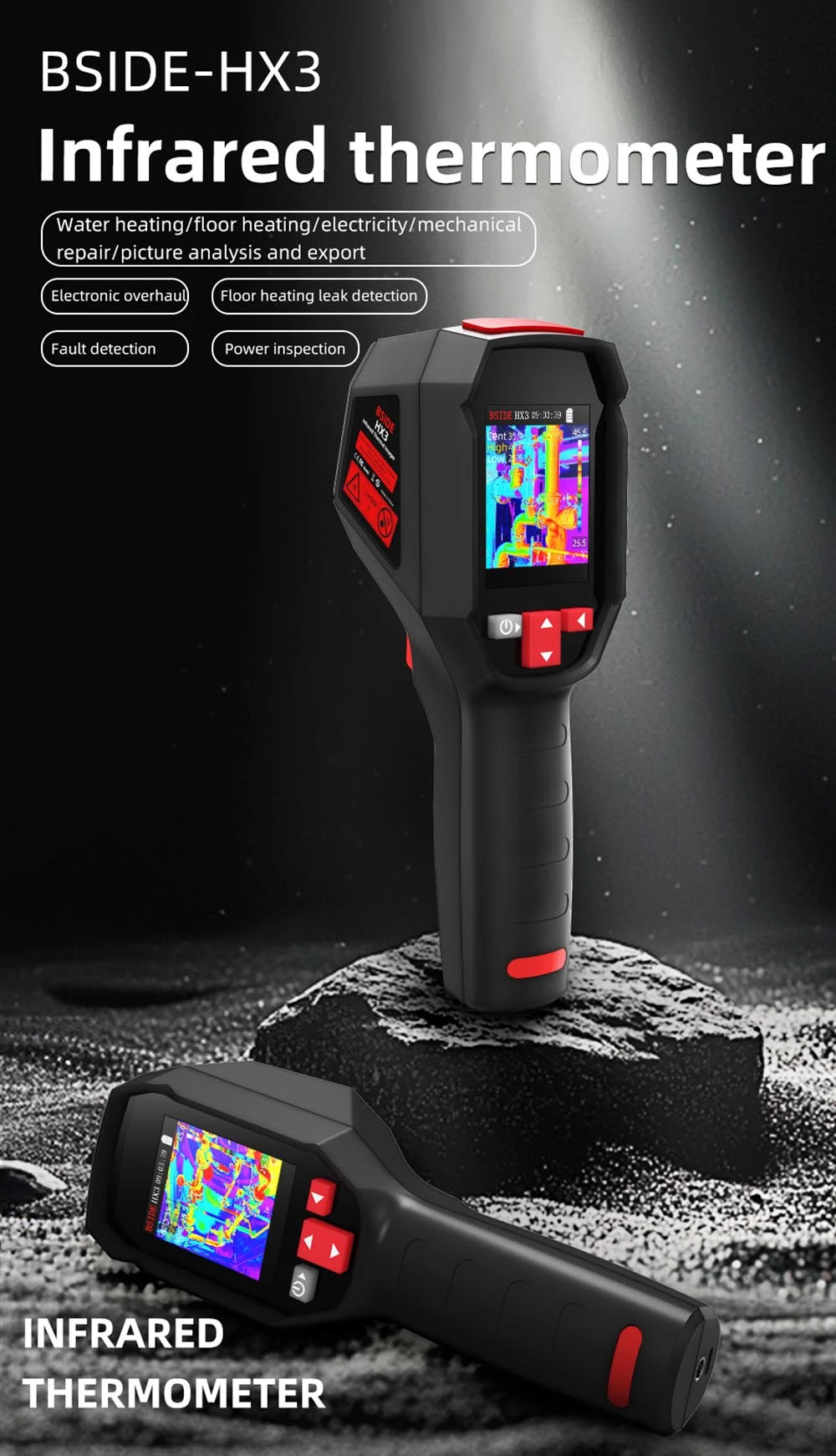

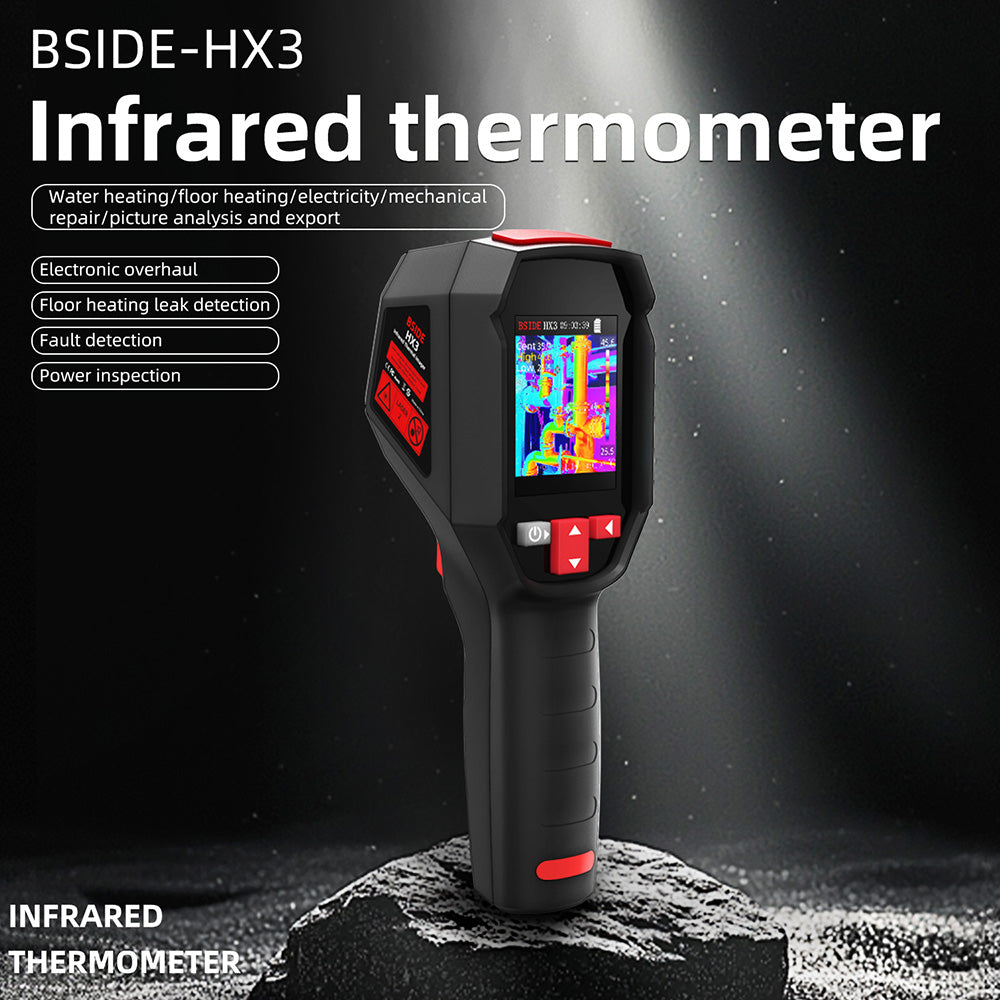

BSIDE HX3 Handheld Thermal Imaging Camera –20~550°C Industrial Imager
Pairs well with
BSIDE HX3 Handheld Thermal Imaging Camera –20~550°C Industrial Imager
Product details
Description
High-Precision Temperature Analysis
The HX3 thermal imager offers precise temperature readings ranging from -20°C to 550°C with an impressive accuracy of ±2°C or ±2% of the reading, ensuring reliable data for critical tasks.
Dynamic Display and Visual Clarity

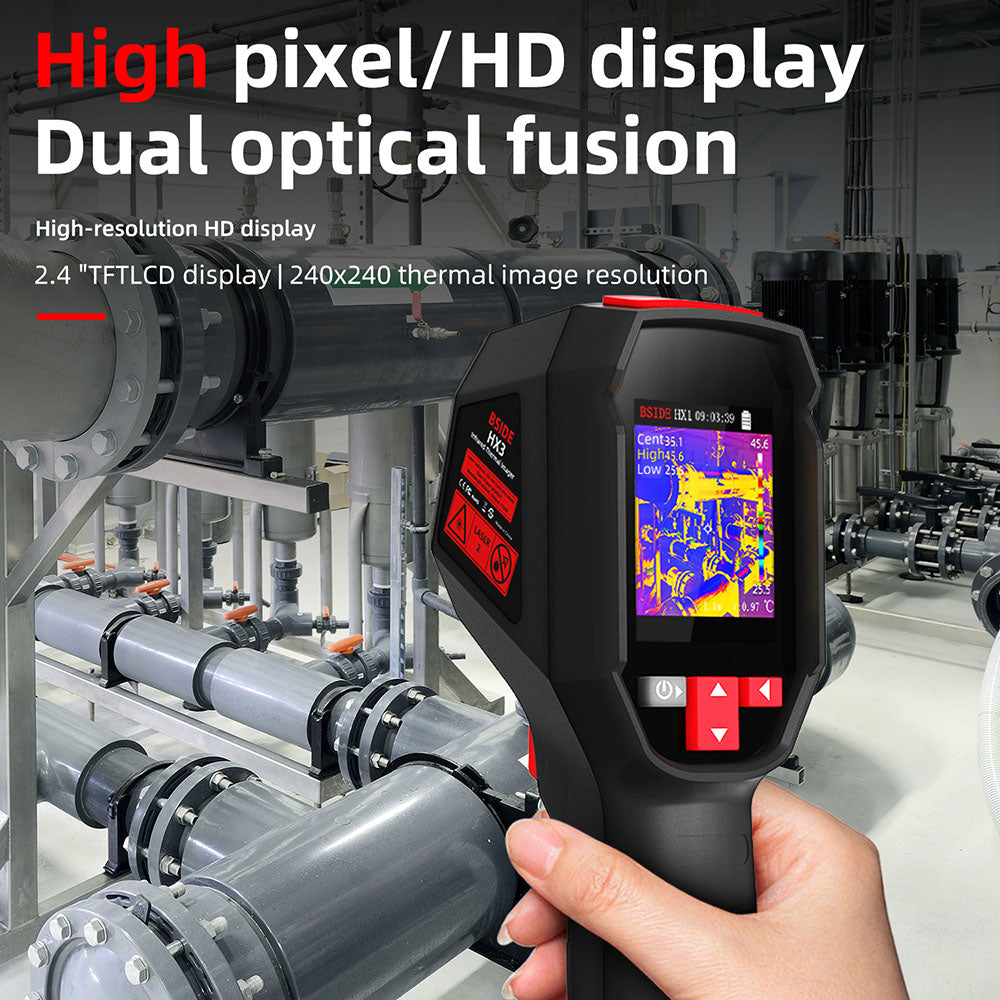

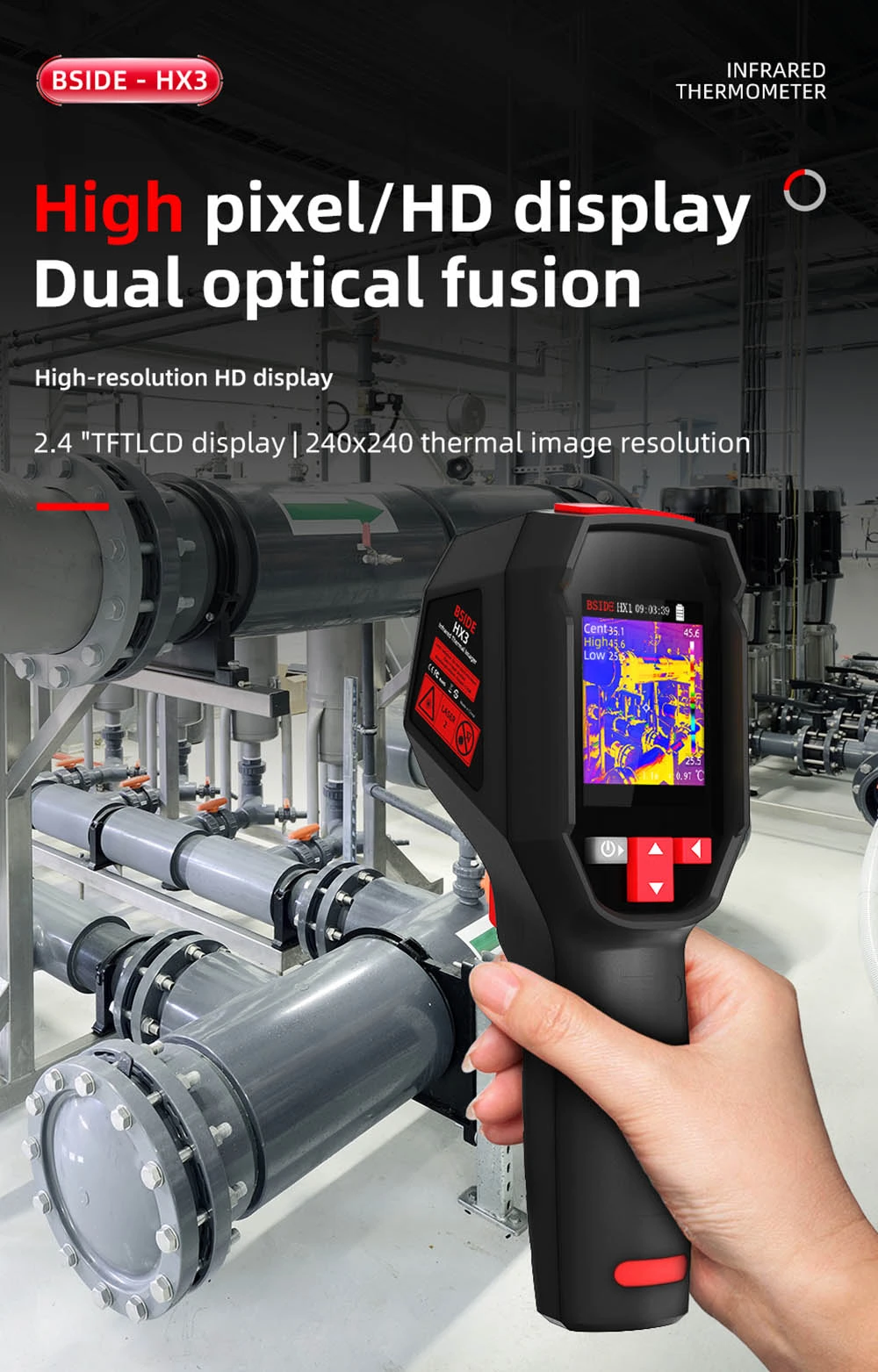

Equipped with a 2.4-inch TFT LCD screen and a resolution of 240 x 240, the HX3 delivers sharp and clear visuals, making it easier to identify and analyze the thermal images effectively.
Versatile Measurement Modes

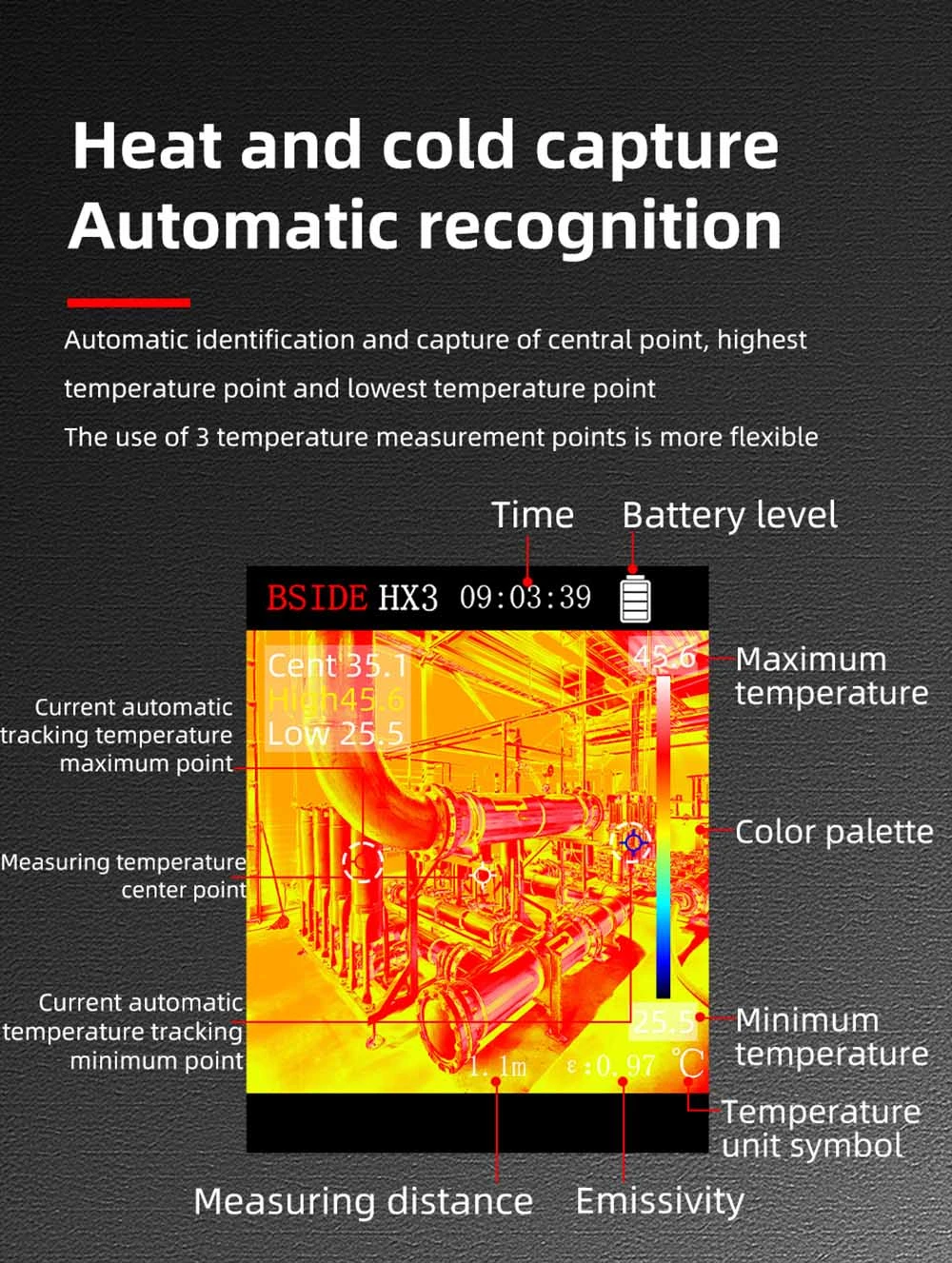

The device provides multiple temperature measurement displays, including center point, high, and low-temperature tracking. This functionality offers flexibility and depth in temperature analysis.

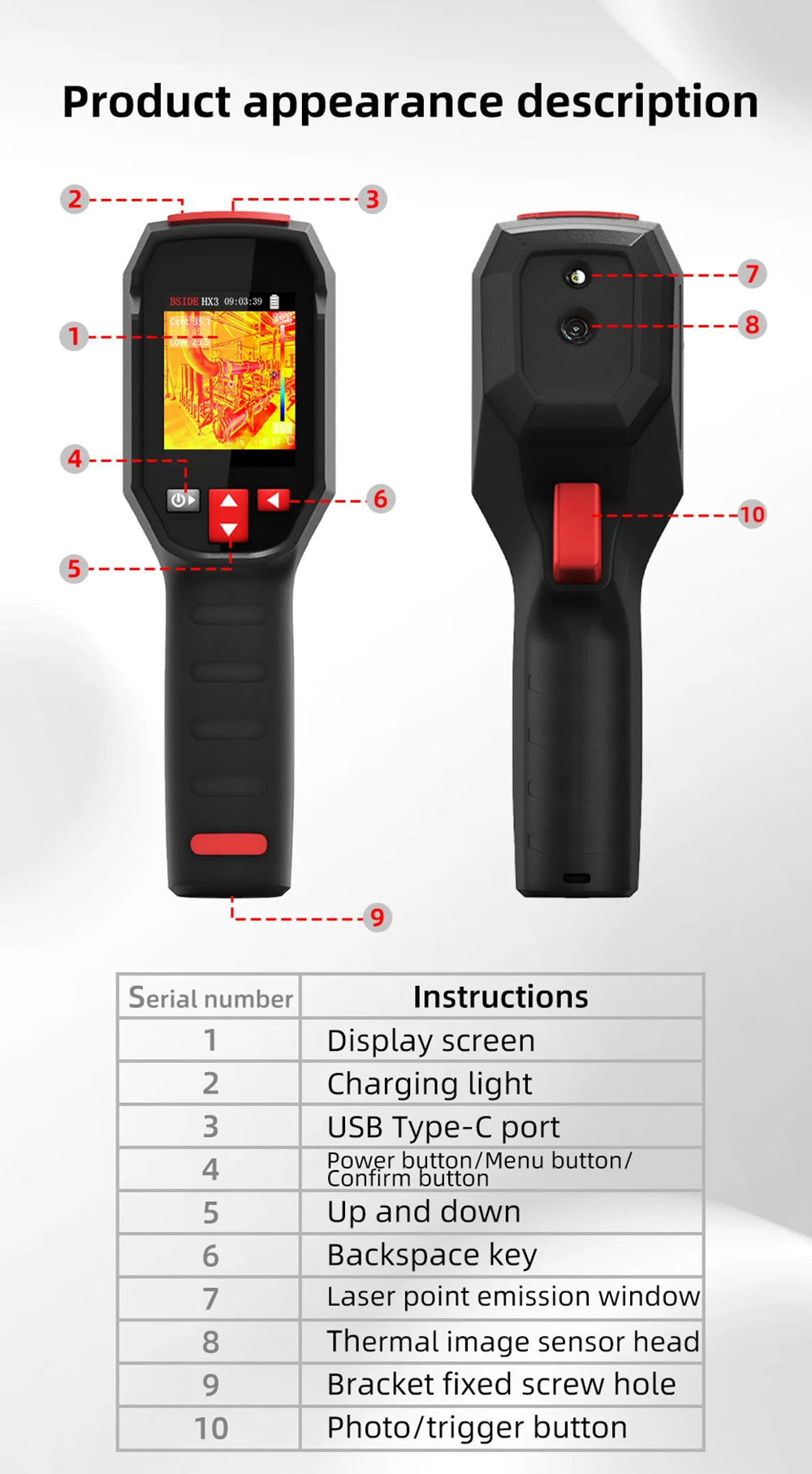

Robust and User-Friendly Design

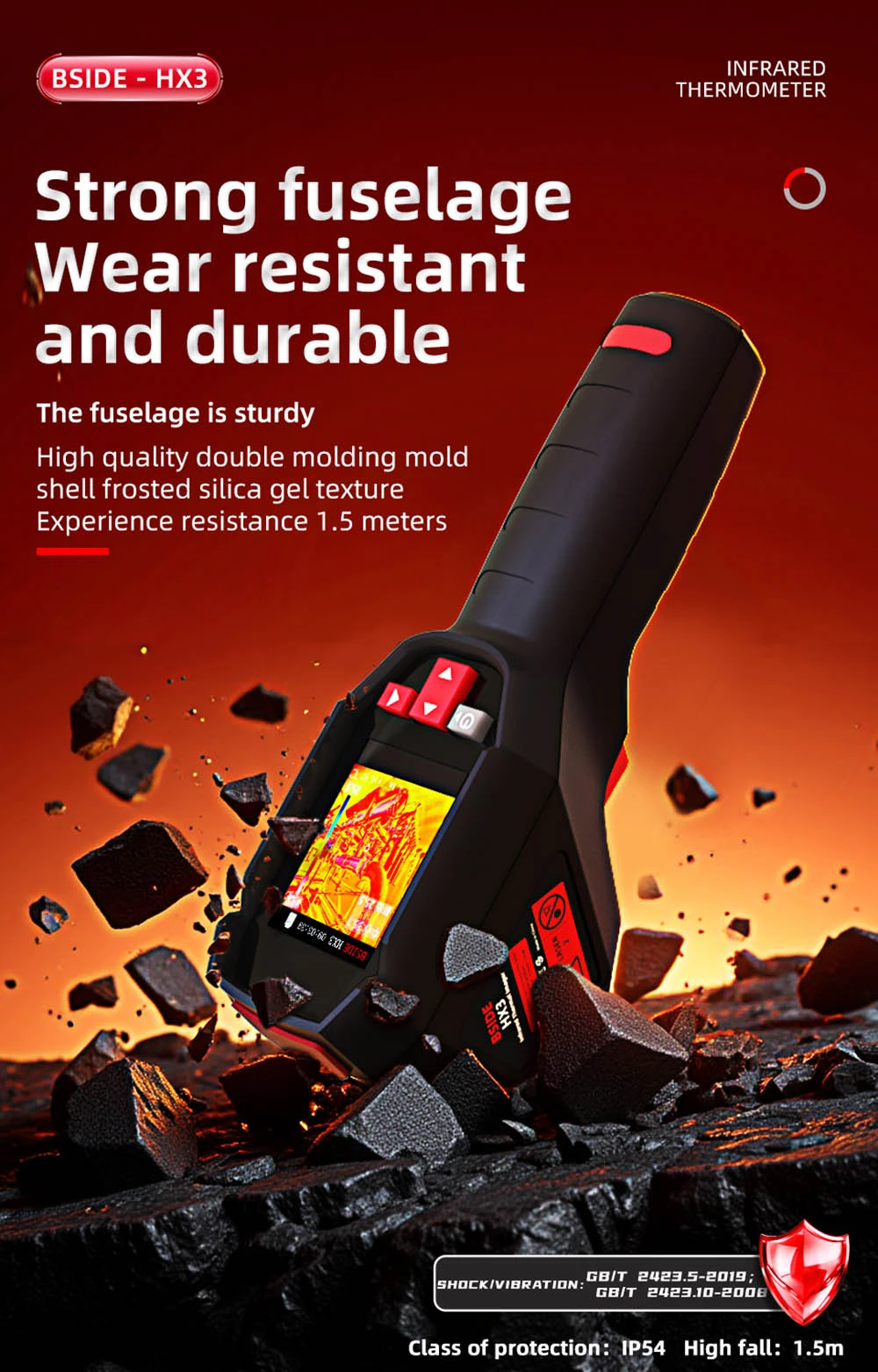

The HX3 comes with IP54 protection level and can withstand drops of up to 1.5 meters, making it durable for field use. The device also features easy-to-use keys and an auto-focusing mode for seamless operation.
Long-lasting Battery Life
With a rechargeable lithium battery providing over 7 hours of continuous usage, and a fast charging time of under 3 hours, the HX3 ensures prolonged and uninterrupted performance during your thermal inspections.
Specification
| General | Brand: BSIDE Type: Infrared Thermal Imaging Camera Model: HX3 Color: Black |

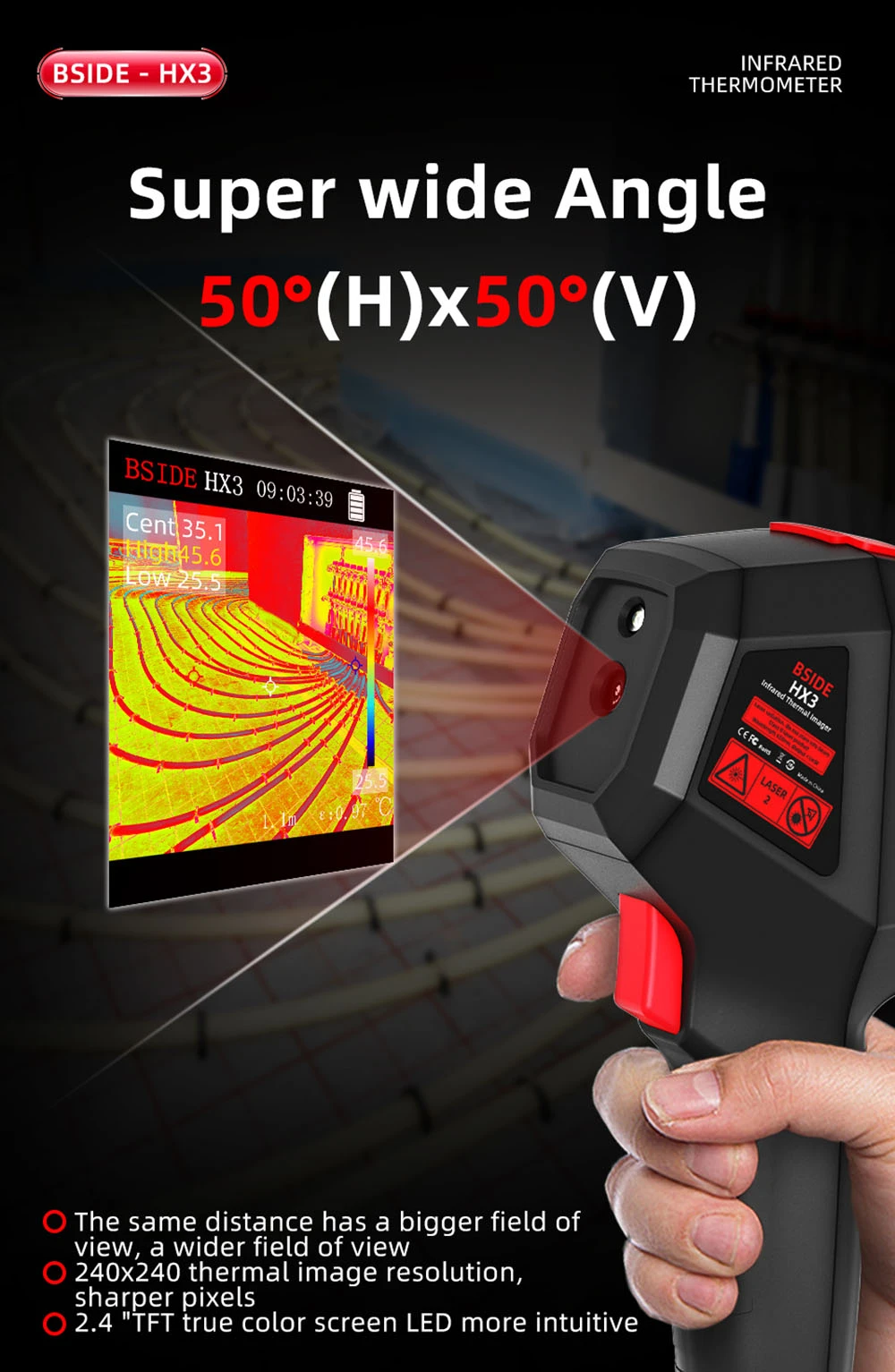

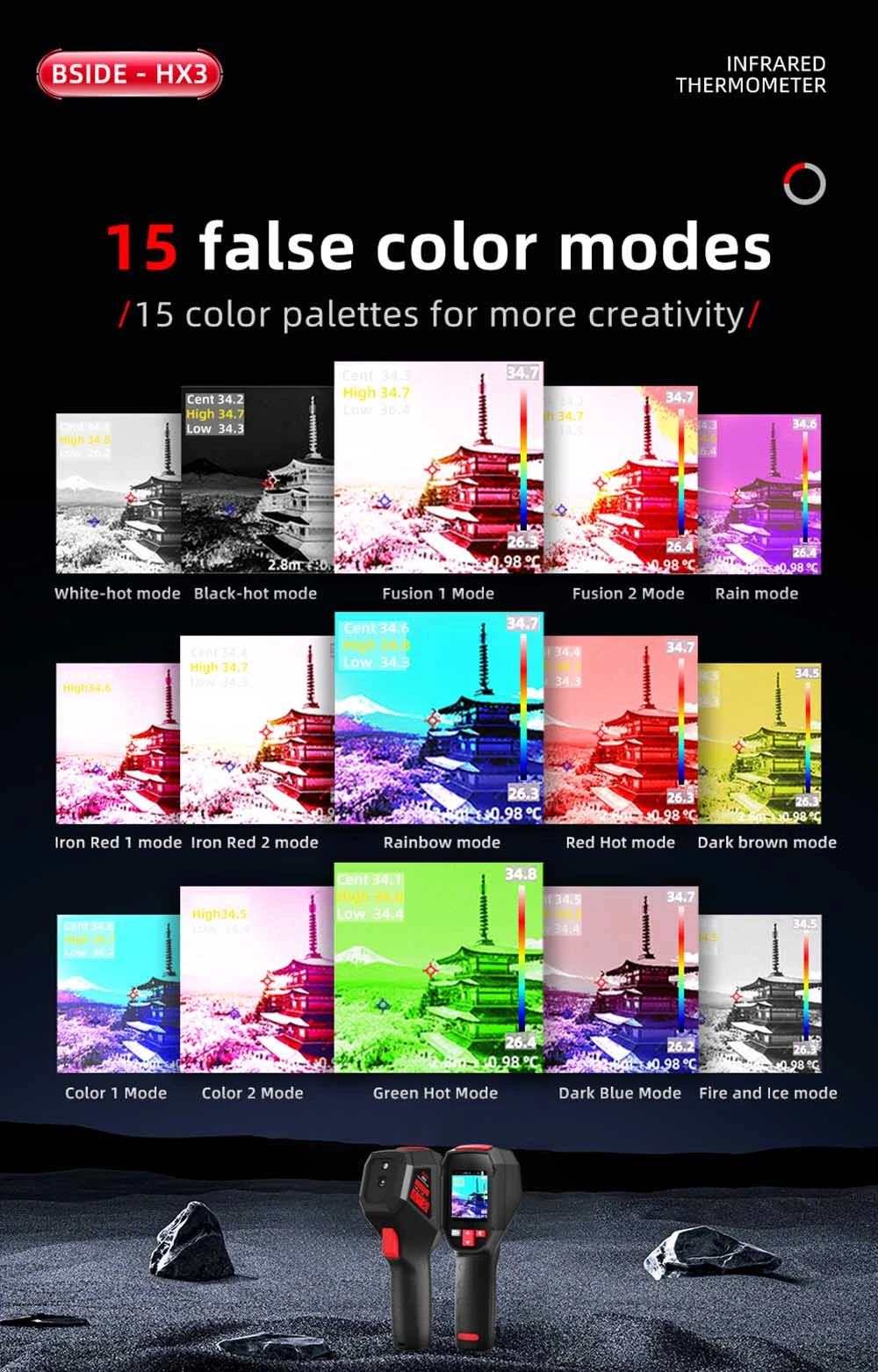

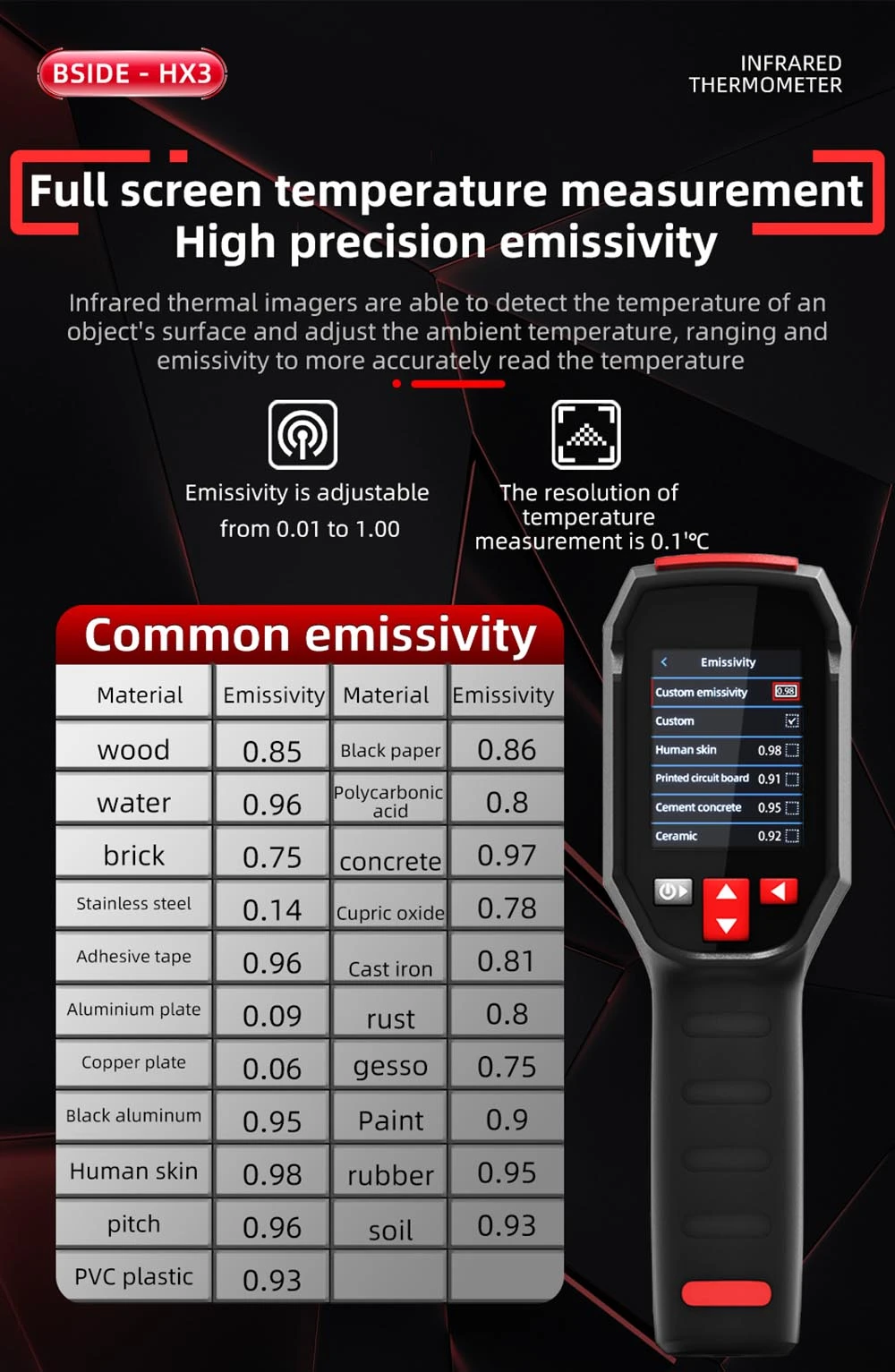

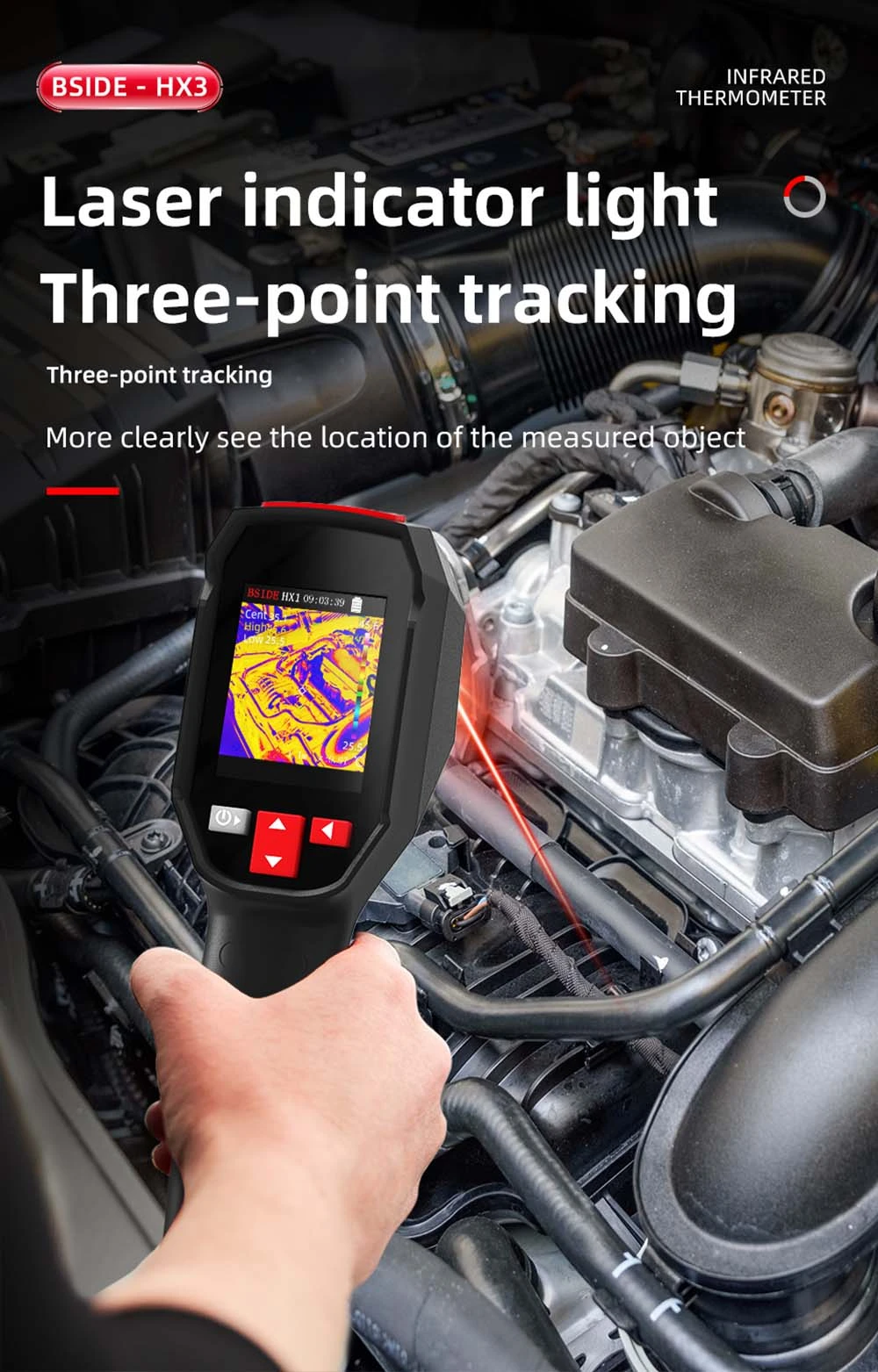

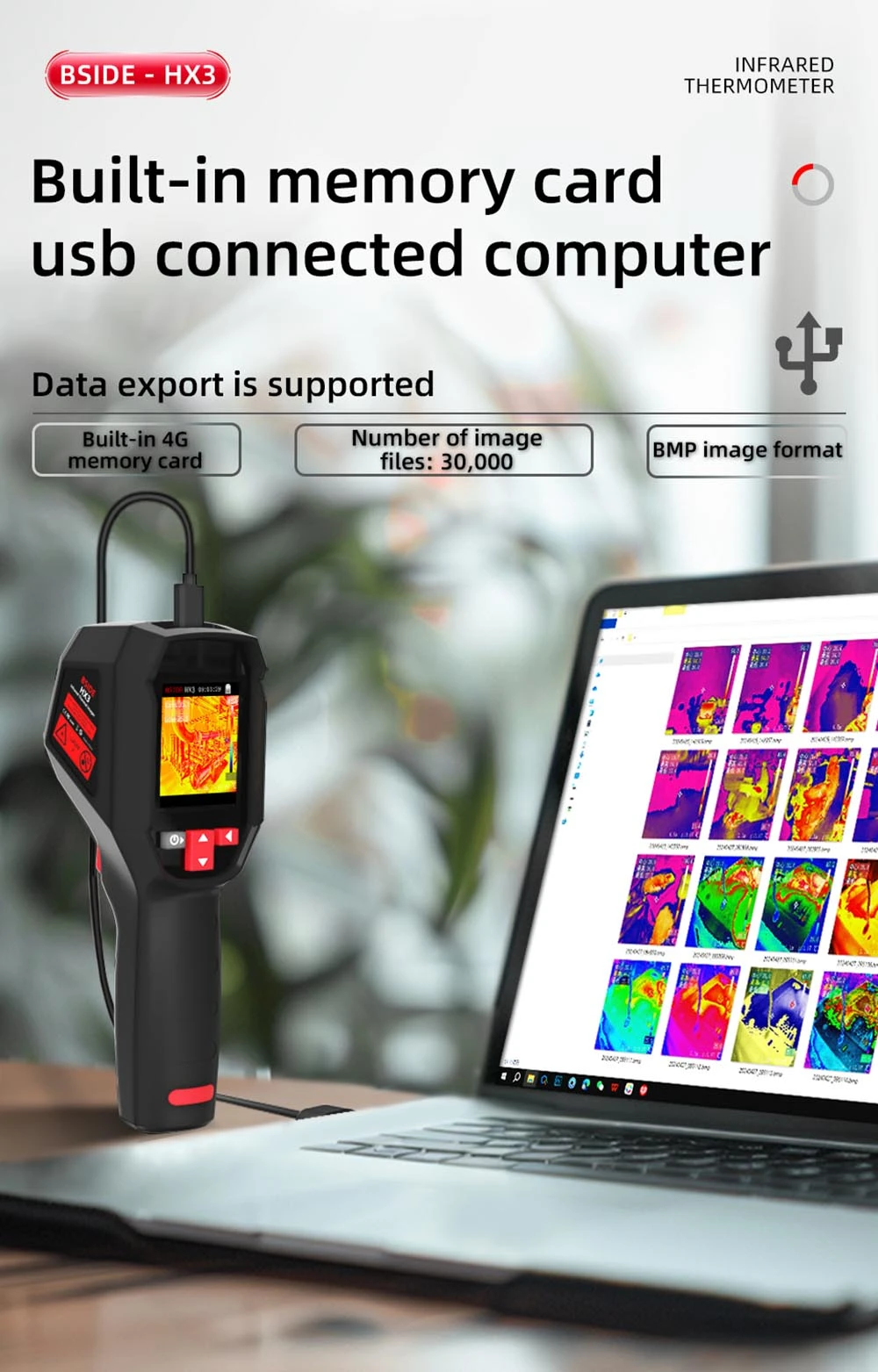

| Specification | Sensor Type: Vanadium oxide microbolometer Response Band: 8–14 μm Thermal Image Resolution: 240x240 Pixels Noise Equivalent Temperature Difference (NETD): ≤60 mK (@25°C, F#1.0) Angle of View (FOV): 50.0° (H) x 50° (V) / 72.1° (D) Spatial Resolution (IFOV): 8.89 mrad Frame Rate: 25Hz Imaging Lens Focal Length: 1.35 mm Temperature Measuring Focal Length: 0.3m–3m Adjustable Temperature Range: -20°C--550°C Temperature Measurement Accuracy: ±2°C or ±2% of the reading (whichever is larger) Temperature Units: Celsius, Fahrenheit, Kelvin Temperature Resolution: 0.1°C Emissivity: 0.01-1.00 Adjustable Temperature Measurement Displays: Center point temperature measurement, high and low temperature tracking Swatches: White Hot, Black hot, Fusion 1, Rainbow, Fusion 2, Iron Red 1, Iron Red 2, Bark brown, Color 1, Color 2, Ice, Fire, Rain, Green hot, Red hot, Dark blue Display Screen: 2.4 inches TFT LCD Display Resolution: 320 x 240 Keys: Power Key, Up key, Down Key, Return key, Trigger key Laser Pointer: Yes Temperature Alarm: Screen font color alarm Image Storage: Built-in memory card Number of Image Files: 30000 Image Format: BMP Shock/Vibration: GB/T 2423.52019; GB/T 2423.102008 Electromagnetic Compatibility (EMC): GB/T17799.2, GB17799.32012 Protection Level: IP54 Installation Mode: Tripod mount UNC-20 Focus Mode: Auto focusing Hardware Interface: Type-C USB Battery Type: Rechargeable lithium battery (3.7V/2500mAh) Battery Working Hours: >7h@25°C Charging Time: <3h @ 25°C Charging Voltage/Current: 5V/2A Boot Speed: ~3 seconds Automatic Shutdown: Disable (default); optional 10, 20, 30, 40, 50, 60 minutes; disable Operating Temperature: -10°C–50°C Storage Temperature: -40°C–70°C Working Humidity: ≤85%RH (Noncondensing) Drop Test: 1.5m |
| Weight & Size | Product Weight: 264g Package Weight: 414g Product Size(L x W x H): 7.5*5.5*18.5cm Package Size(L x W x H): 21.5*12.5*6.5cm |
| Package Contents | 1 x Infrared Thermal Imaging Camera 1 x USB Cable 1 x Carrying Lanyard 1 x User Manual |
