BSIDE ZT-QB1 Digital Clamp Meter T-RMS AC/DC Multimeter with NCV
Pairs well with
BSIDE ZT-QB1 Digital Clamp Meter T-RMS AC/DC Multimeter with NCV
Product details
Description
BSIDE 600A Digital Clamp Multimeter Inrush Current True RMS Auto ranging 4000 Counts Voltage NCV Resistance with Flashlight

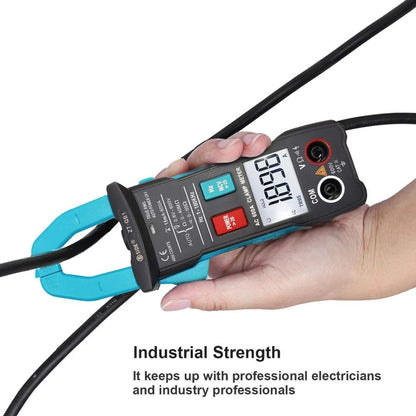

[600A Clamp Meter]: The clamp meter measures AC current up to 600A without interrupting the circuit.
[Automatic Identification]: Designed with beginner in mind - Bside smart technology make this multimeter can automatically identifies the tested parameters and choose their required range.
[Inrush Current Test and Peak hold Function]: Inrush current function is designed to capture inrush current accurately; Peak hold function makes test and record more convenient.
[Double Insulation Protection]: Double insulated cover design greatly improves product safety standard, which protects you from the risk of electric shock.

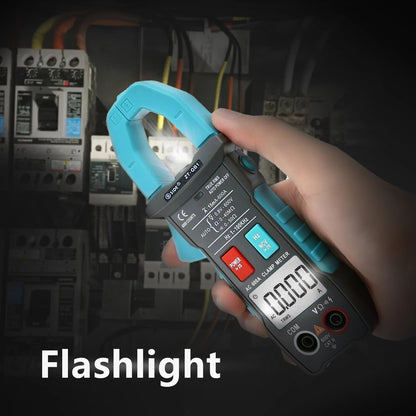

[Flashlight Design]: Upgraded flashlight can change the dark environment. Hang hole design make it more portable.

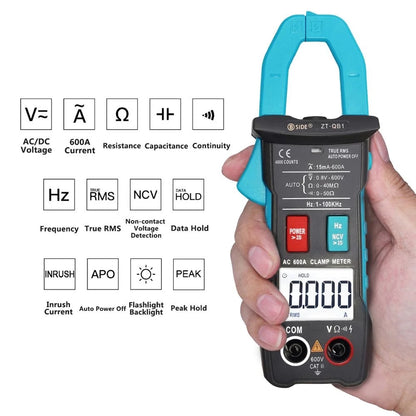

Features:
Measure AC Current
Measure AC and DC Voltage
Inrush Current
Measure frequency
Measure resistance, continuity
V-alert measurement
Clamp on frequency function
Auto range
True RMS
Data hold
Peak hold
Auto power off
Back light
Flashlight
Low Battery Alert
Specifications:
Display: 4000 counts
AC current: 4.000A±(5%+5counts)
40.00A/400.0A/600A ±(2.5%+8counts)
DC voltage: 4.000V/40.00V/400.0V600V ±(0.5%+3counts)
AC voltage: 4.000V/40.00V/400.0V600V ±(1.0%+3counts)
Resistance:
4.000k±(1.5%+3counts)
40.00k/400.0k/4.000Mohm ±(1.0%+3counts)
40.00Mohm ±(1.5%+3counts)
Frequency: 4.000Hz/40.00Hz/400.0Hz/4.000kHz/40.00kHz±(0.1%+2counts)
Buzzer: If the resistance is less than 30Ω, the continuity beeper sounds
Jaw Capacity: 25mm
Power: 1.5V (AAA) x 2 (not included)

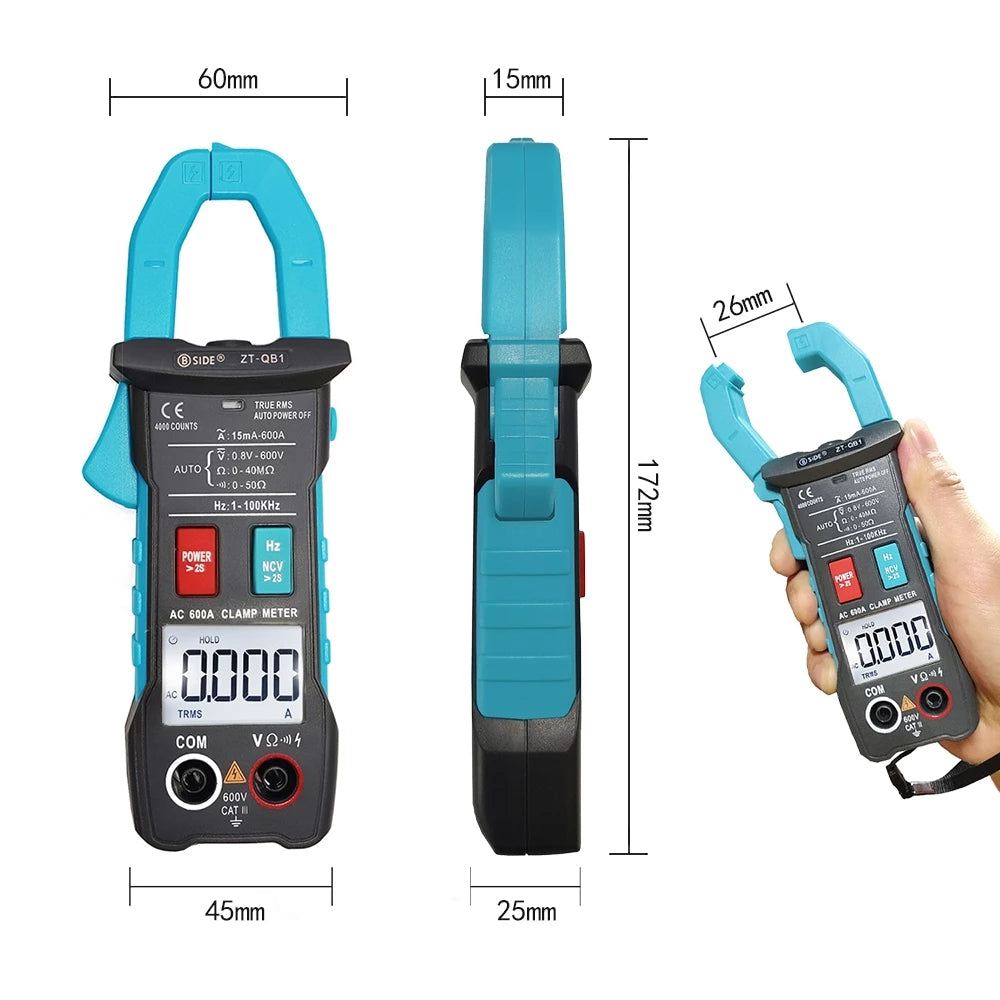

Size: 172mm x 64mm x 32 mm
Weight: 172g

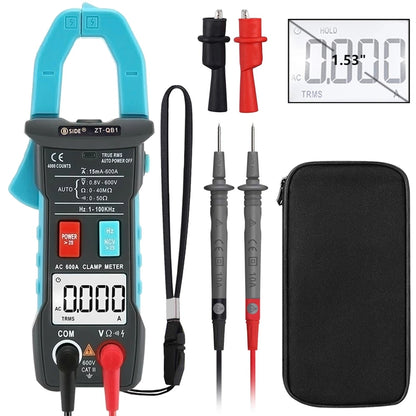

Package Includes:
1 x Digital Clamp Meter
1 x Test Leads
1 x Carrying Case
1 x C3104 Crocodile Clips
1 x High Quality Nylon Lanyard
1 x User Manual
