BSIDE U6 Clamp Meter 600A with T-RMS & OpenJaw Design
Pairs well with
BSIDE U6 Clamp Meter 600A with T-RMS & OpenJaw Design
Product details
Description
Specifications
Hign-concerned Chemical:None
Weight:500g
Dimensions:21*6.4 * 3.3cm
Measuring Inductance Range:N/A
Measuring Capacitance Range:10000UF
Measuring Resistance Range:10000 Kohm
Measuring Voltage Range:620V
Measuring Current Range:DC AC 600A
Display Type:Analog and Digital
Model Number:BSIDE U6 Fork Digital Clamp Meter
DIY Supplies:ELECTRICAL
Brand Name:BSIDE
BSIDE Model:U6
Certification:CE,FCC,RoHS

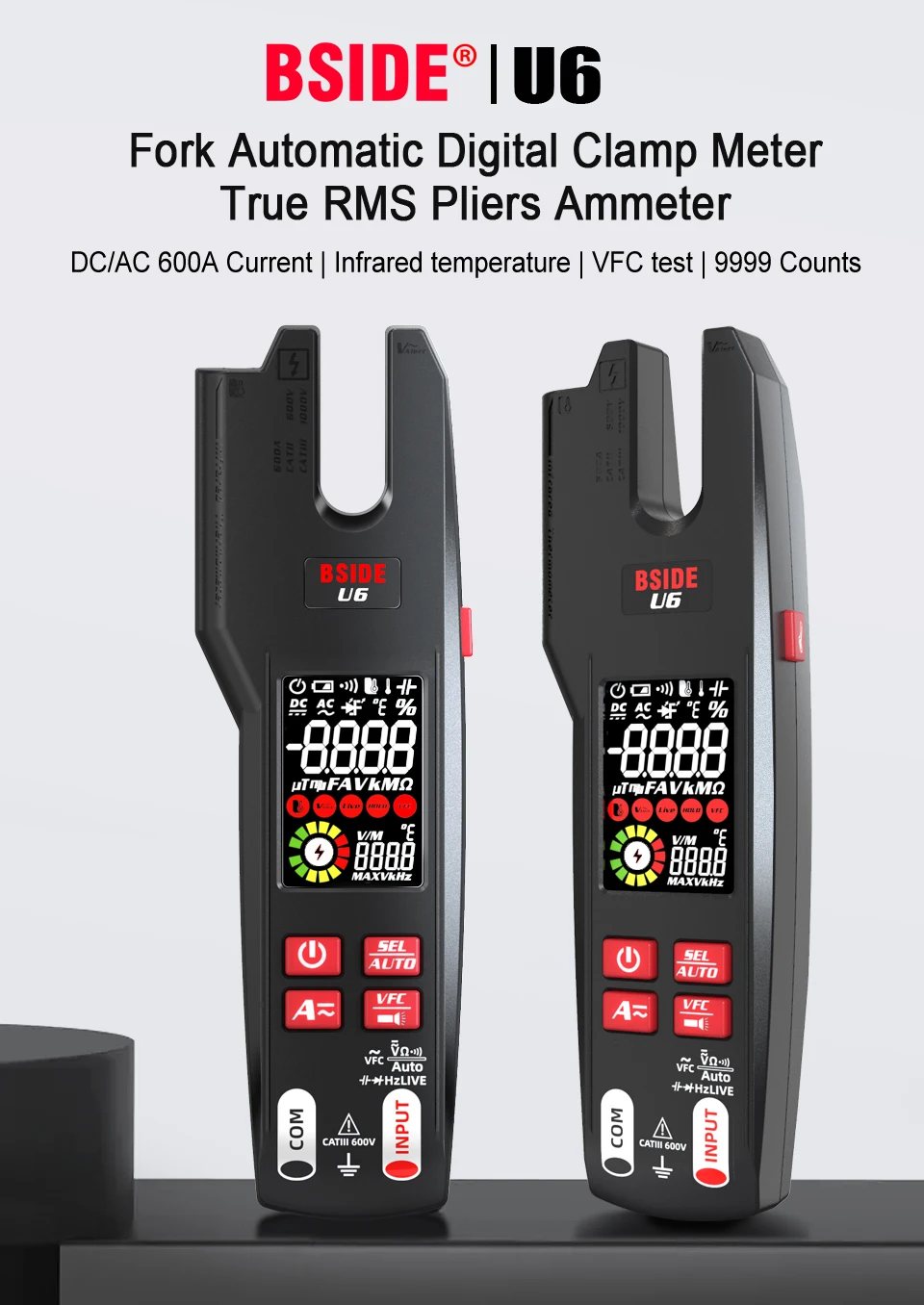

BSIDE U6/U6X Fork Digital Clamp meter Professional OpenJaw DC/AC 600A Ammeter Pliers Automatic Multimeter VFC/VFD Voltage Current Electrical Tester With Infrared thermometer.
New generation of Smart True RMS DC/AC 600A Fork Open-Jaw digital clamp meter.
OpenJaw design is convenient for current testing and maintenance.
Innovative dual power supply mode for longer power supply.
It have intelligent and professional measurement functions, and Infrared temperature est. Full function with gear display, analog bar multiple display
It is the best choice for professional electrician, engineer, electronic enthusiast or family use.
Features:
Professional DC/AC 600A Clamp Meter Ammeter Plier with infrared thermometer test.
Maximum display 9999 Counts.
EBTN Color Large HD LCD display.
True RMS, Auto/Manual Range.
Support dual-mode power supply :
1. Built-in Rechargeable Battery (USB charging)
2. 1.5V AA battery*2 (Not included)
Electrical amp tester with smart mode for easy to use.
VFC/VFD frequency conversion voltage test.
Oversized body design makes testing safer.
The large pen design card is more convenient with the rear side and side of the fuselage.
Equipped with high-quality portable cloth bag.
Also can be used as a professional voltage detector with adjustable sensitivity.
Auto range, Auto power off, low battery indication with flashlight.
CAT111 600 high safety gauge to meet the global test maintenance.
Ordering Notice:
The ammeter of BSIDE U6 and U6X products has the same function.
BSIDE U6 IR object distance ratio: 4:1;
BSIDE U6X IR object distance ratio: 12:1. (Upgraded Silicon Lens)
2.4 inches Large EBTN Color HD LCD display.
Smart three-line display, clear, effectively eliminate industry pain points.
Fork-shaped design, DC AC 600A current measurement.

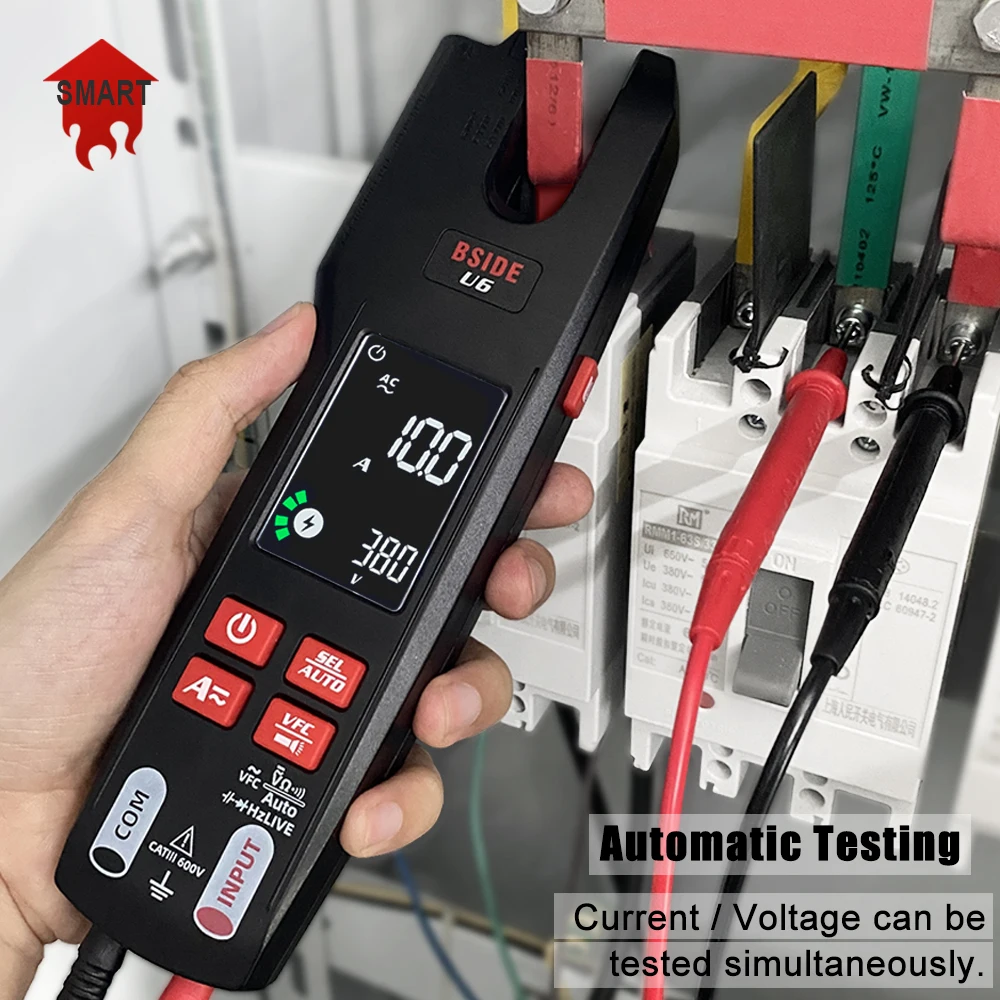

Easy and accurate OpenJaw current measurement; Current and Voltage Dual Line Display.
The digital multimeter can check both voltage and current measurements when troubleshooting motors, pumps, or other equipment.
Non-contact Infrared temperature measurement function is additionally added.
It can quickly determine the fault problems of automobiles, air conditioners, motors, etc Range: -20℃~400℃/-4℉-752F.
Comprehensive testing capabilities for more use cases.
NEW - Support dual-mode power supply.
1〉. Built-in Rechargeable Battery (USB charging)； 2〉. 1.5V*2 AA battery (Not included).
Additional VFC function; Make it a truly new clamp multimeter.

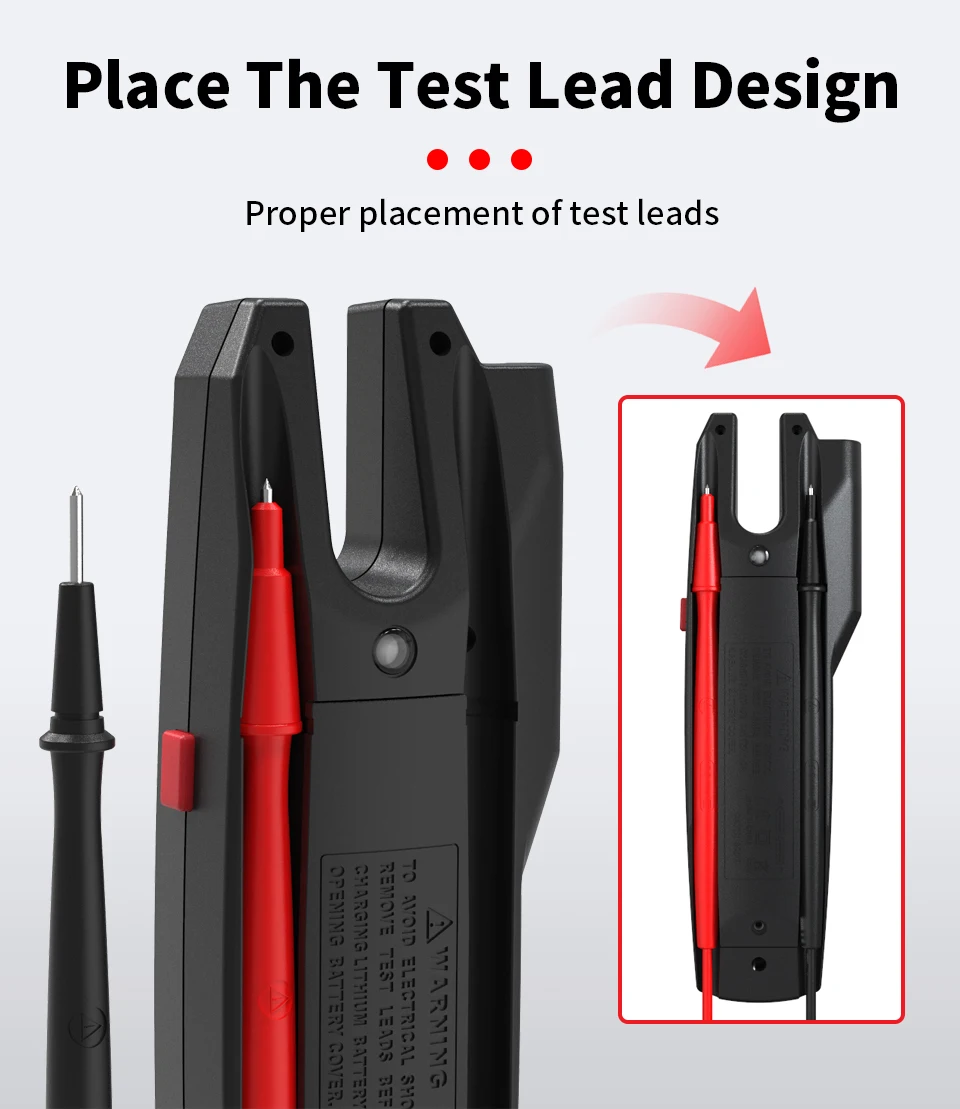

Place the test lead design.
Proper placement of test leads, More portable and easy to store.
Multi-purpose True RMS clamp meter multimeter.
The product has a wide range of test properties, as well as application scenarios.
BSIDE U6 Product+T9004 Ultra-Sharp Silicone Tester Probe + T1101 High-Quality Alligator Clip Test Leads.
Specifications:
Display: 9999 counts
DC current: 1-600A 0.1A ±(2.5%+5 counts)
AC current: 1-600A (AC mode, 40-200 Hz) 0.1A ±(2.5%+5 counts); 1-600A (VFC mode, 40-200 Hz) 0.1A ±(4.0%+5counts)
DC voltage: 0-620V (DC mode) 0.001 V ±(0.8%+3 counts); 0.5-620V (Auto Mode) 0.001 V ±(0.8%+3 counts)
AC voltage: 0-620V (AC mode) 0.001 V ±(1.2%+5 counts); 0.8-620V (Auto Mode) 0.001 V ±(1.2%+5 counts); 0-620 V (VFC mode) 0.1V ±(4.0%+3 counts)
VFC/VFD voltage: Yes.
Resistance: 0-10MΩ 0.1Ω ±(1.2%+3 counts)
Capacitance: 0.5µF-1000µF 0.1µF ±(3.5%+8 counts); 1000µF-10mF 0.1µF ±(4.5%+10 counts)
Frequency: 10-1000Hz 1Hz ±(2.0%+10 counts)
Infrared temperature: -20℃~0℃/-4℉-32℉ 0.1℃/0.1℉ ±(3.0%+2℃/℉); 0℃~400℃/32℉-752℉ 0.1℃/0.1℉ ±(2.5%+3℃/℉)
Diode: Measure diodes within 2.0V
Continuity: If the resistance is less than 30Ω, the continuity beeper sounds
Temperature: 0-50℃/32℉-122℉ ±2℃/℉
V-Alert (non contact voltage detection): Yes
Live wire check: Yes
Power:
1. USB charging (built-in rechargeable battery)
2. 1.5V AA battery*2 (not included)
Size: 210 x 63.7 x 33 mm
Weight: 216 g
Package Includes:
1 x BSIDE U6 Electronic tester Clamp meter
1 x Upgrade Test Leads；2 x Lithium Battery
1 x USB Charging Cable；1 x Carrying Case
1 x Screwdriver；1 x User Manual；1 x Color Box
Product Information Download Center
