BSIDE OT2 Mini Oscilloscope 10MHz with Signal Generator
Pairs well with
BSIDE OT2 Mini Oscilloscope 10MHz with Signal Generator
Product details
Description
Specifications：
Hign-concerned Chemical:None
IS Battery Demountable:No
Model Number:BSIDE OT2 Mini Portable Oscilloscope
Certification:CE,FCC,RoHS
Origin:Mainland China
Real Time Sampling Rate:48MSa/s
Brand Name:BSIDE
DIY Supplies:ELECTRICAL
Band Width:10MHz
Digital Channels:1
BSIDE Model:OT2
Display Resolution:320*240 Pixels
Display Size:2.9 Inches & Under

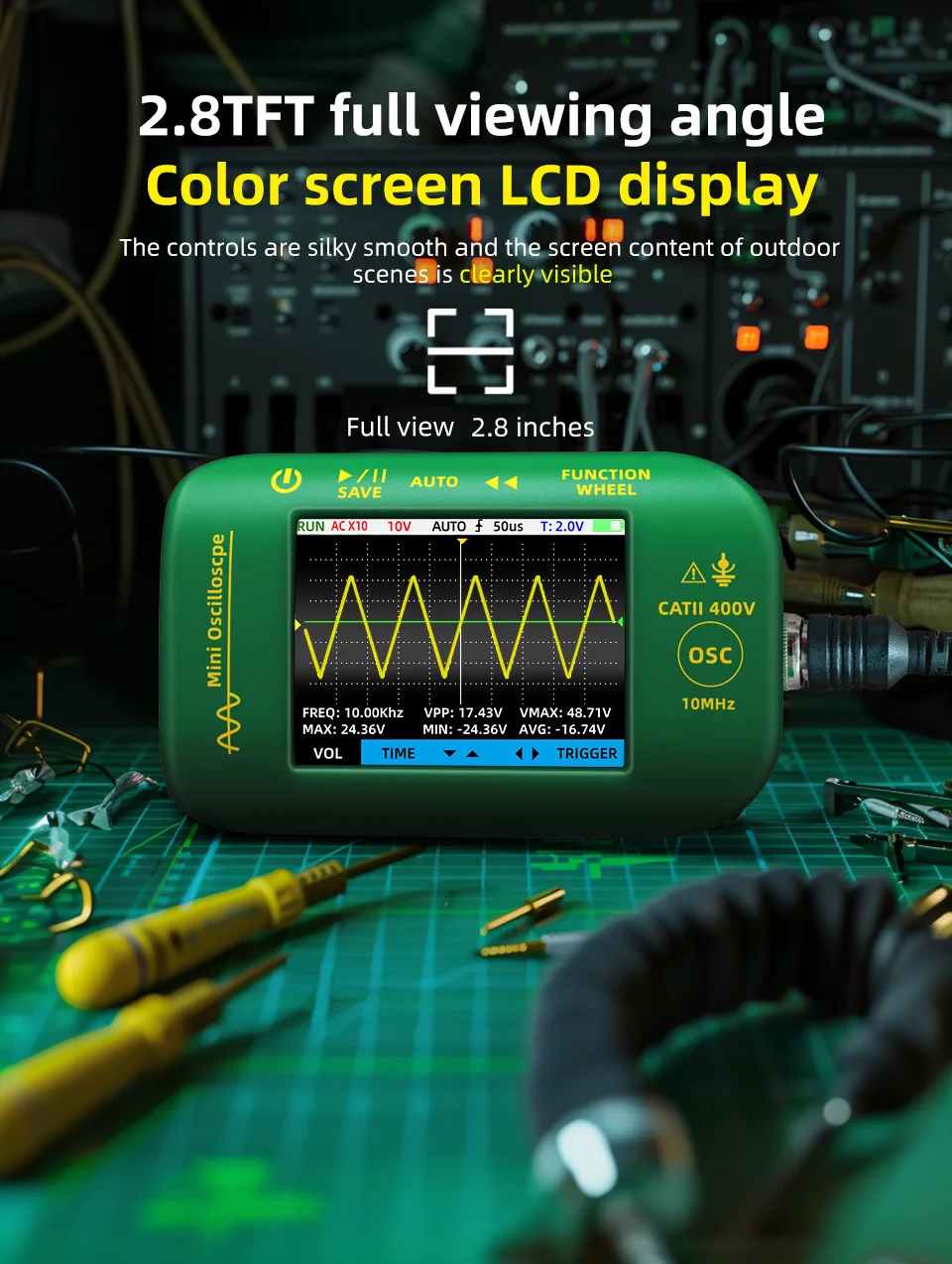

Display:2.8'' TFT full viewing angleColor screen LcD display
Band Width:10MHz.
Sampling Rate:48MSa/s.
Vertical sensitivity:20mV/Div-10V/Div.
Trigger method:Auto/Normal/Single.
Coupling method:AC/DC.
USB charging:Yes.
Lithium battery capacity:1800mAh(Built-in).
Size:108x69.5x33mm.
Weight:166g.

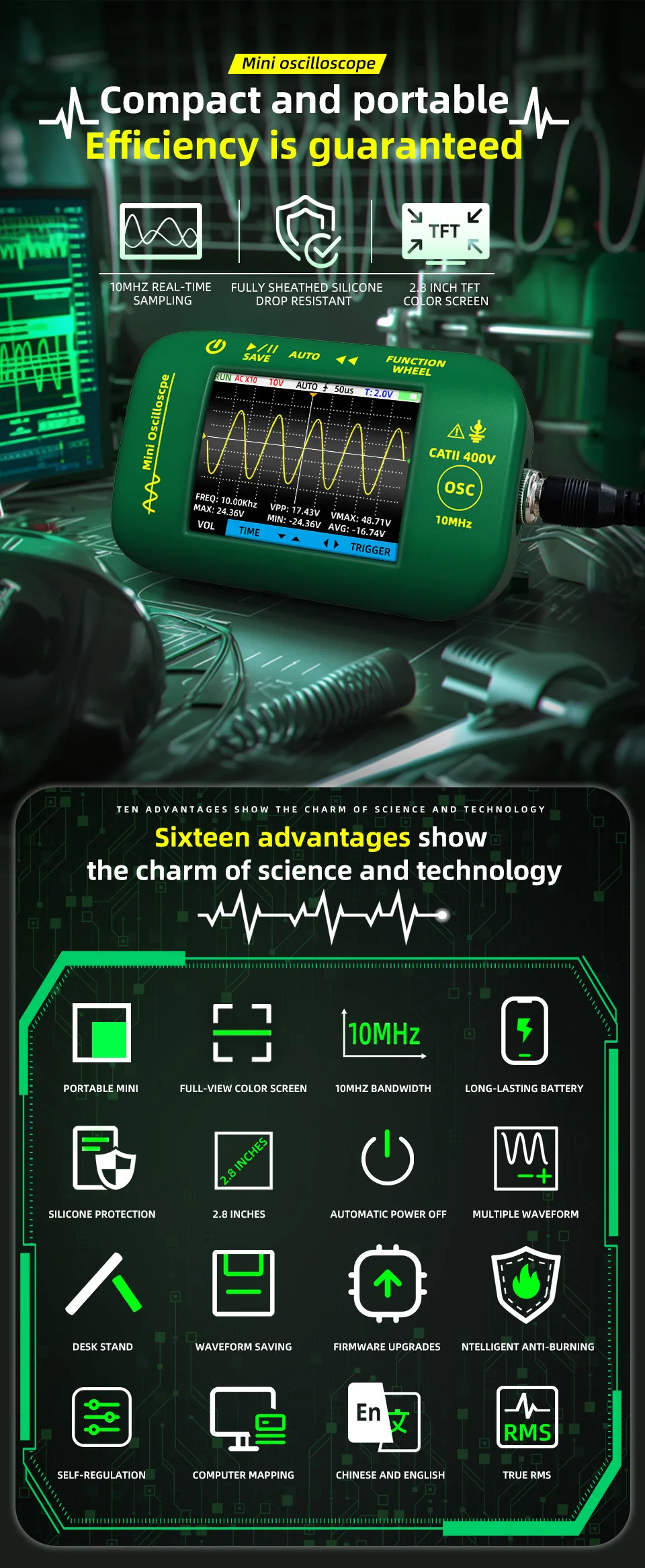

BSIDE OT2 Mini Digital Handheld Oscilloscope 10MHz Bandwidth 48MSa/s Sample Rate Smart Tester for experiments and repairs available.
This product is a practical and cost-effective handheld oscilloscope launched by the BSIDE brand for the electronic maintenance industry and the development and education industry.
This oscilloscope has a real-time sampling rate of 48MS/s, 10MHz bandwidth, and complete triggering function (single, normal, auto). It can be used freely for both periodic analog signals and non periodic digital signals, and can measure up to ± 400V voltage with an efficient one click AUTO, which can display the measured waveform without complicated adjustments.

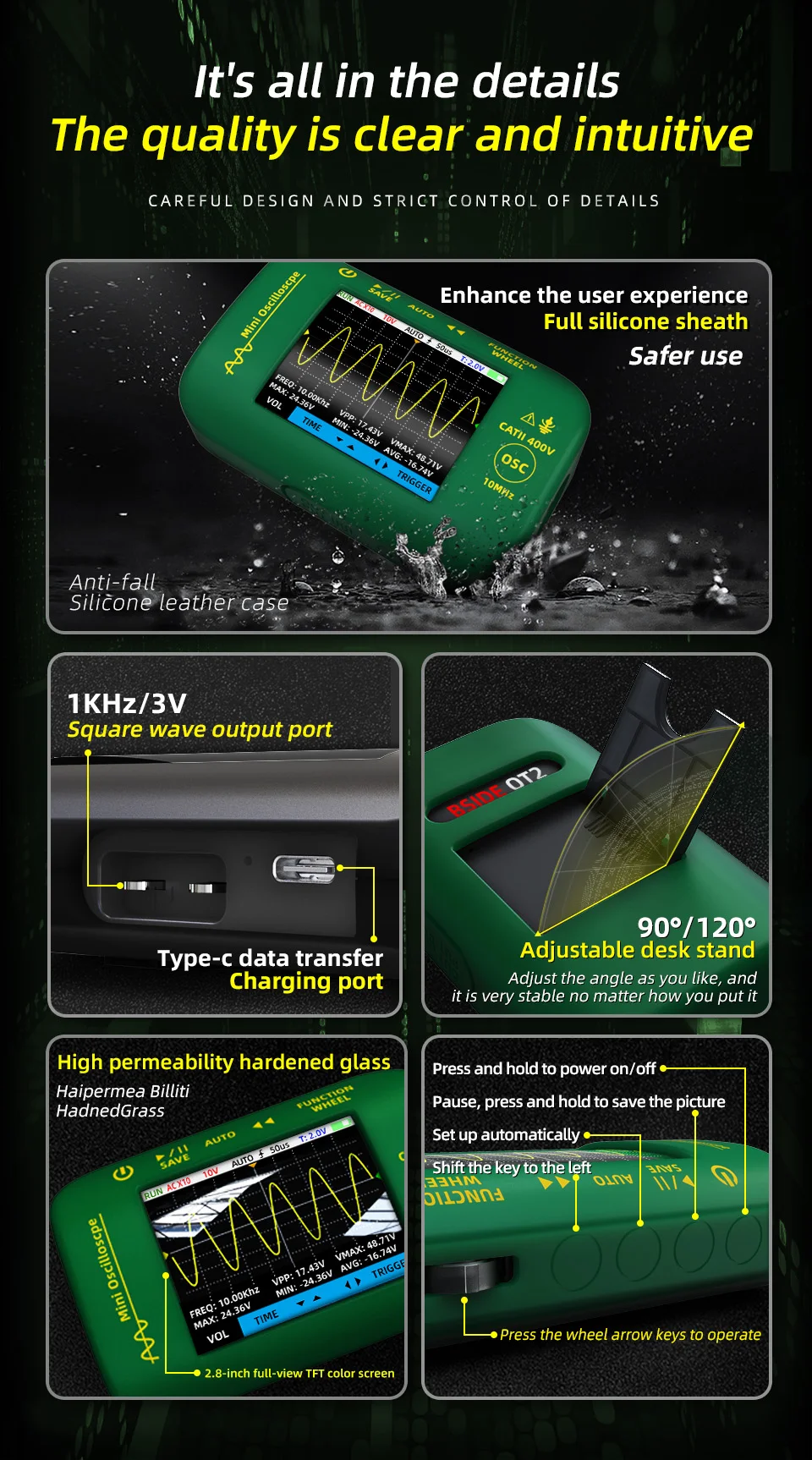

Equipped with a 2.8-inch 320*240 resolution HD LCD screen and a built-in 1800mAh high-quality lithium battery, it can be used for about 7 hours when fully charged.

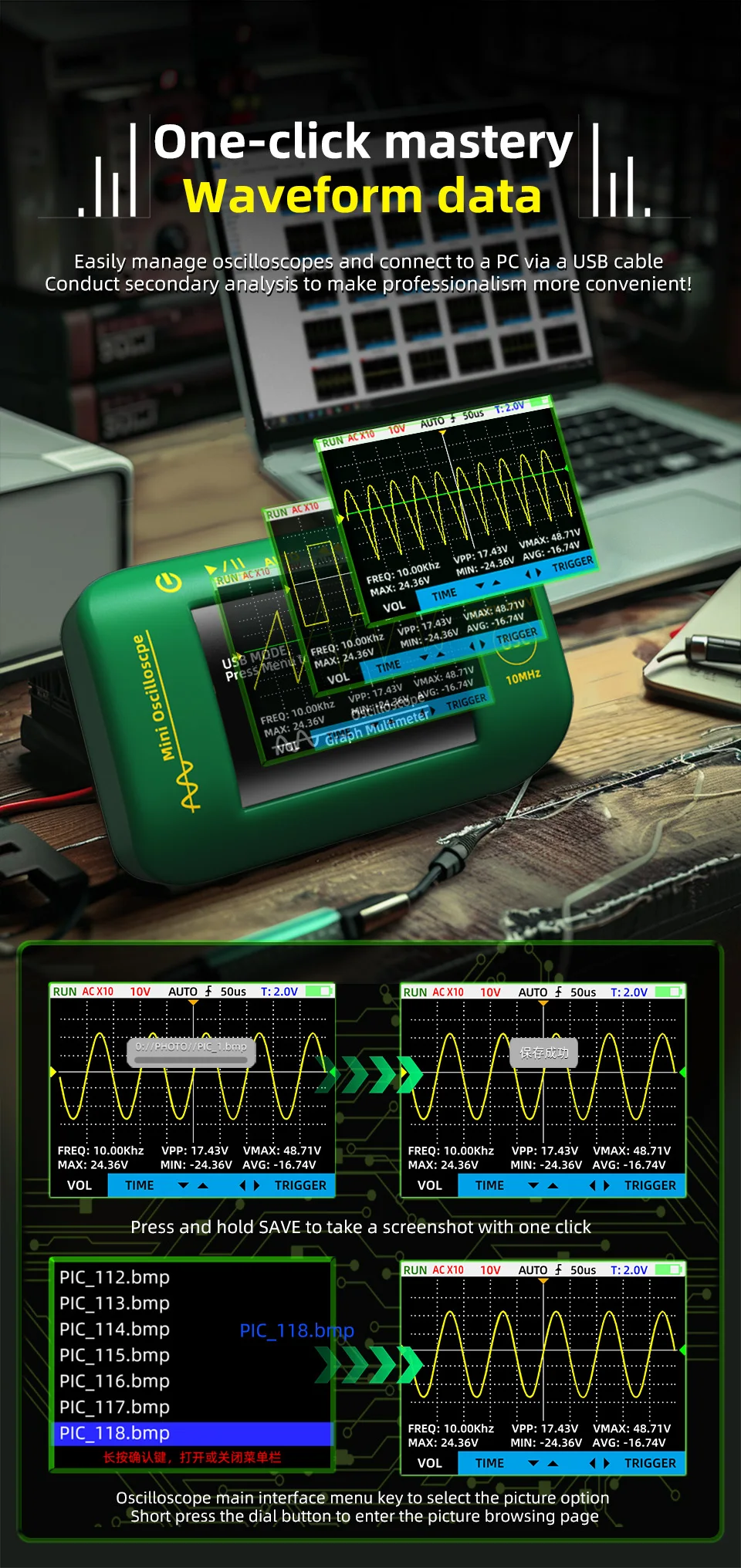

[Data Storage and Export]: The data of this graphic oscilloscope meter can be saved and exported to your flash drive, computer, PC, etc.
[Rechargeable]: The handheld oscilloscope comes with a rechargeable battery and charging cable, ensuring that you never have to worry about running out of power during the measurement.

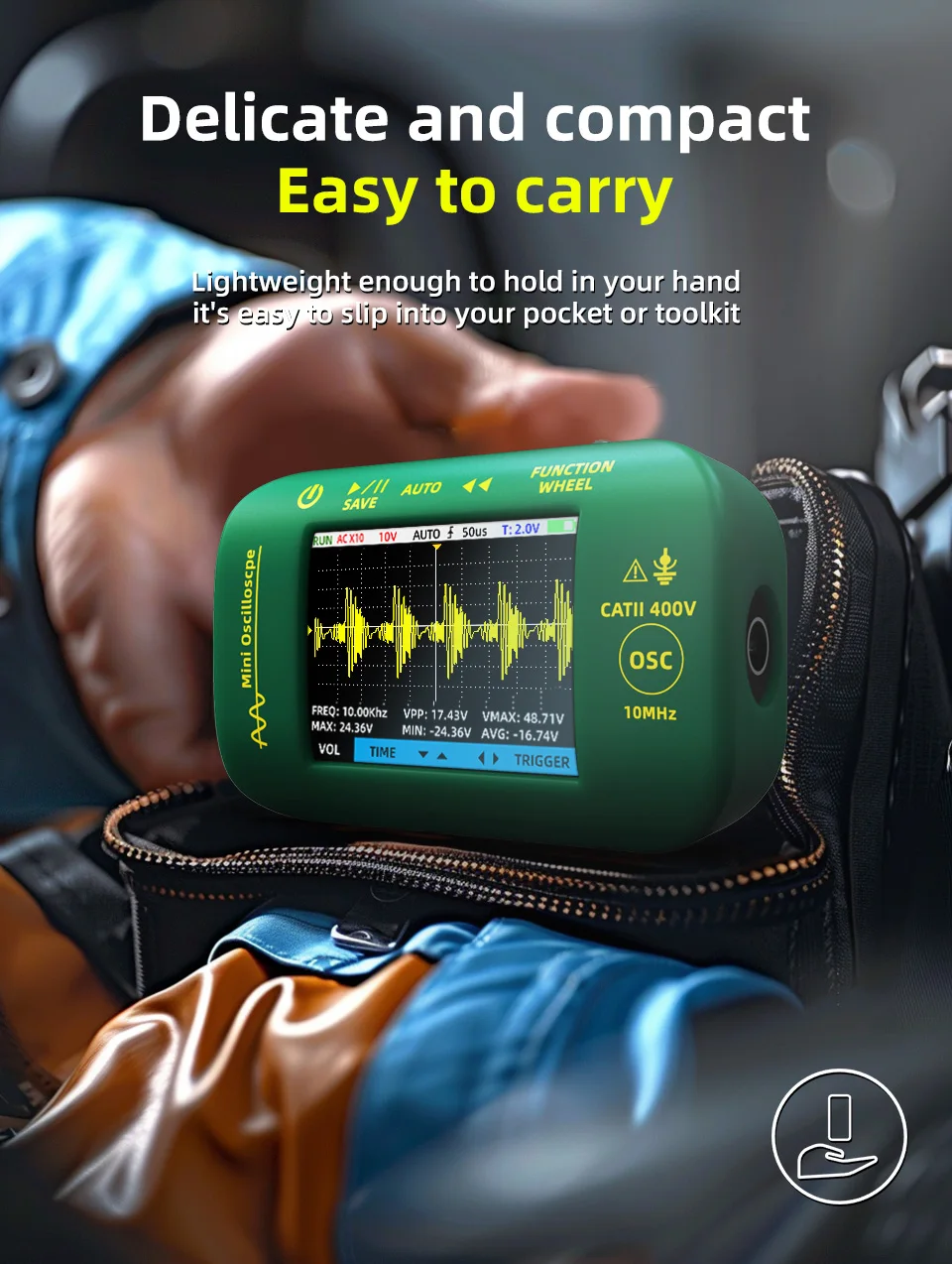

[Carrying case]: The digital oscilloscope comes with a high-quality EVA carrying case, which is perfect for use on the go.
Specification:
Screen size: 2.8 inches
Bandwidth: 10MHz
Real-time scan rate: 48MSa/s
Input impedance: 1MΩ
Maximum input voltage: ×1 range±40V, ×10 range±400V (DC+AC peak)
Horizontal seconds range: 100ns/div -20s/div
Vertical sensitivity: 20mV/div -10V/div
Trigger mode: automatic/normal/one-time
Coupling mode: AC/DC
USB charging: 5V/1A
Power supply: 1800mA
Size: 108x69.5x33mm
Weight: 166g
Package includes:
1* OT2 oscilloscope.
1* Crocodile Clip Probe.
1* Oscilloscope Probe(Optional).
1* Quality EVA bag.
1* Charging cable.
1* Certificate of Conformity (12 months).
1* User Manual.
1* Color box.
Customer Reviews

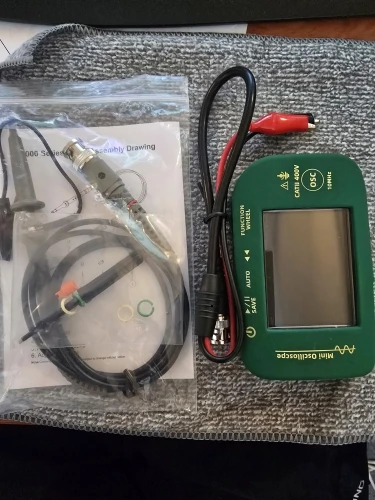

Arrived on time. Packaging was excellent. Description is accurate. Came with a spare probe. Seems to work as expected.
