BSIDE P5 15GHz Vector Network Analyzer
Pairs well with
BSIDE P5 15GHz Vector Network Analyzer
Product details
Description
Features:

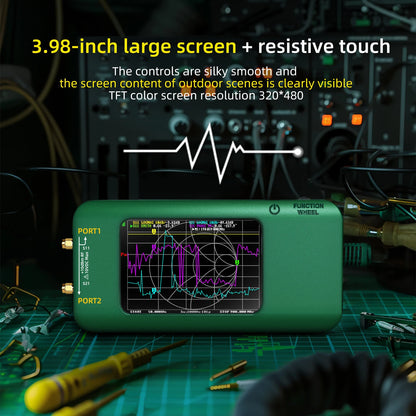

【Portable Design & Touchscreen Display】: Equipped with a silicone protective cover for effective shockproofing, a lightweight and compact build, and a 3000mAh lithium-ion battery with quick charging capabilities, ensuring durability and convenience for on-the-go use. Features a 3.98-inch TFT full-view angle touchscreen with 320*480 resolution, providing clear and vibrant visuals for convenient use and smooth, responsive touchcontrols.

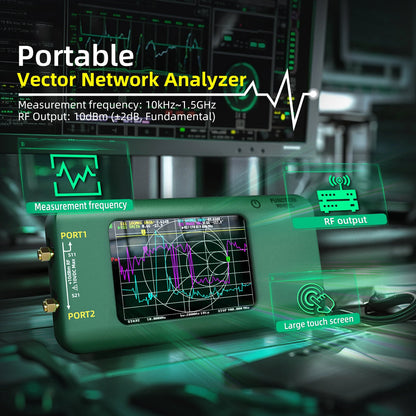

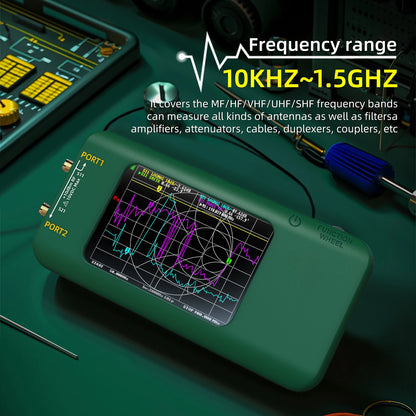

【Wide Frequency Measurement】: Offers 10 kHz to 1.5 GHz frequency measurement, covering MF, HF, Ultrahigh Frequency, and SHF bands, enabling precise measurements of antennas, filters, amplifiers, attenuators, cables, duplexers, couplers, and other microwave parts. Six variable IF bandwidths for you to choose from, large bandwidths for fast scanning, and small bandwidths to significantly reduce measurement noise.
【Dual-Port Design and Sophisticated Measurement Capabilities】: The dual-port configuration supports S11 and S21 parameter measurements and sophisticated measurement capabilities, including TDR (Time Domain Reflectometry) and DTF (Distance-to-Fault) through IFFT calculations, providing comprehensive insightinto device performance.

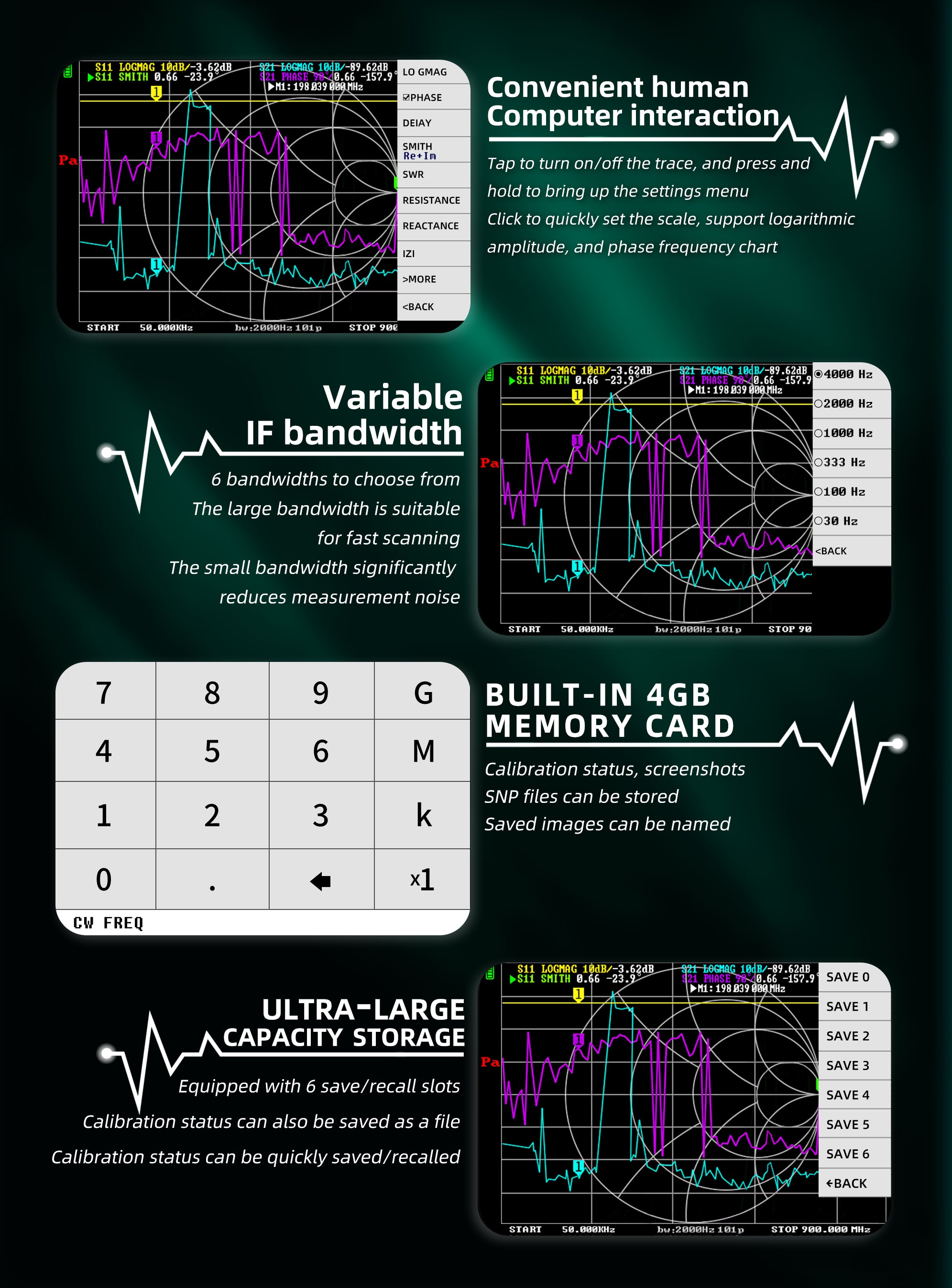

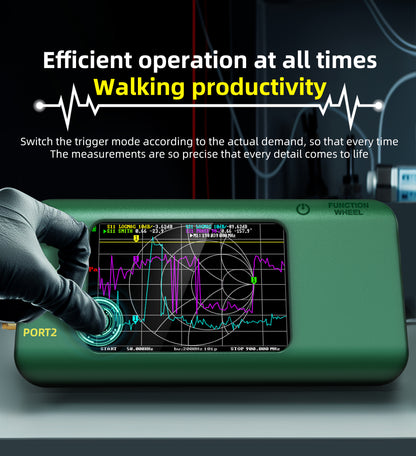

【Easy Operation & Secondary Analysis】: The full touchscreen operation design with an intuitive interface provides easy navigation and control, allowing for accurate data management and quick connection to a PC via USB for further analysis. Support logarithmic amplitude, phase-frequency diagram group time delay, Smith, polar coordinates, linear amplitude, VSWR real/imaginary part, resistance/reactance, quality factor, etc. Various display format settings.
【Memory Function】: Features six quick save/recall slots for calibration states, with a file-based storage function that is only limited by the capacity of the storage card, enabling extensive and convenient data management. Built-in a 4GB memory card to store calibration status, screenshot images, and SNP files. The storage imaging can be named.
【Wide Applications】: Suitable for scanning antenna systems and cables, SWR and impedance matching, dual band and triband duplexers, port isolation by band, insertion loss of filters, evaluation of communication microwave analyses, and much more.
Specifications:
Name: Vector Network Analyzer
Material: ABS + silicone
Battery: built-in 3000mA lithium battery (included)
Measurement frequency: 10kHz-1.5Gigahertz
Radio frequency output: 10dBm(±2dB, basewave)
Frequency accuracy: <2ppm
Frequency stability: <0.5ppm
Measurement ranges: 70dB(50kHz-300MHz)/60dB(300-900MHz)/40dB(0.9G-1.5Gigahertz)
Port SWR:<1.1
Display: 3.98-inch TFT color screen (320*480)
Maximum charging current: 2A
Number of calibration points: maximum 401 (optional), connected to the PC without limitations
Number of scanning points: maximum 401 (optional), unlimited when connected to a PC
Scanning point speed: >600p/s (RBW=4000Hz)
Display tracking: 4
Markers: 8
Setting save: 7
Item size: 168 * 81 * 24mm / 6.38 * 3.19 * 0.94in
Package size: 183 * 98 * 48mm / 7.20 * 3.86 * 1.89in
Package weight: 381g / 13.44ounce
Package Included:

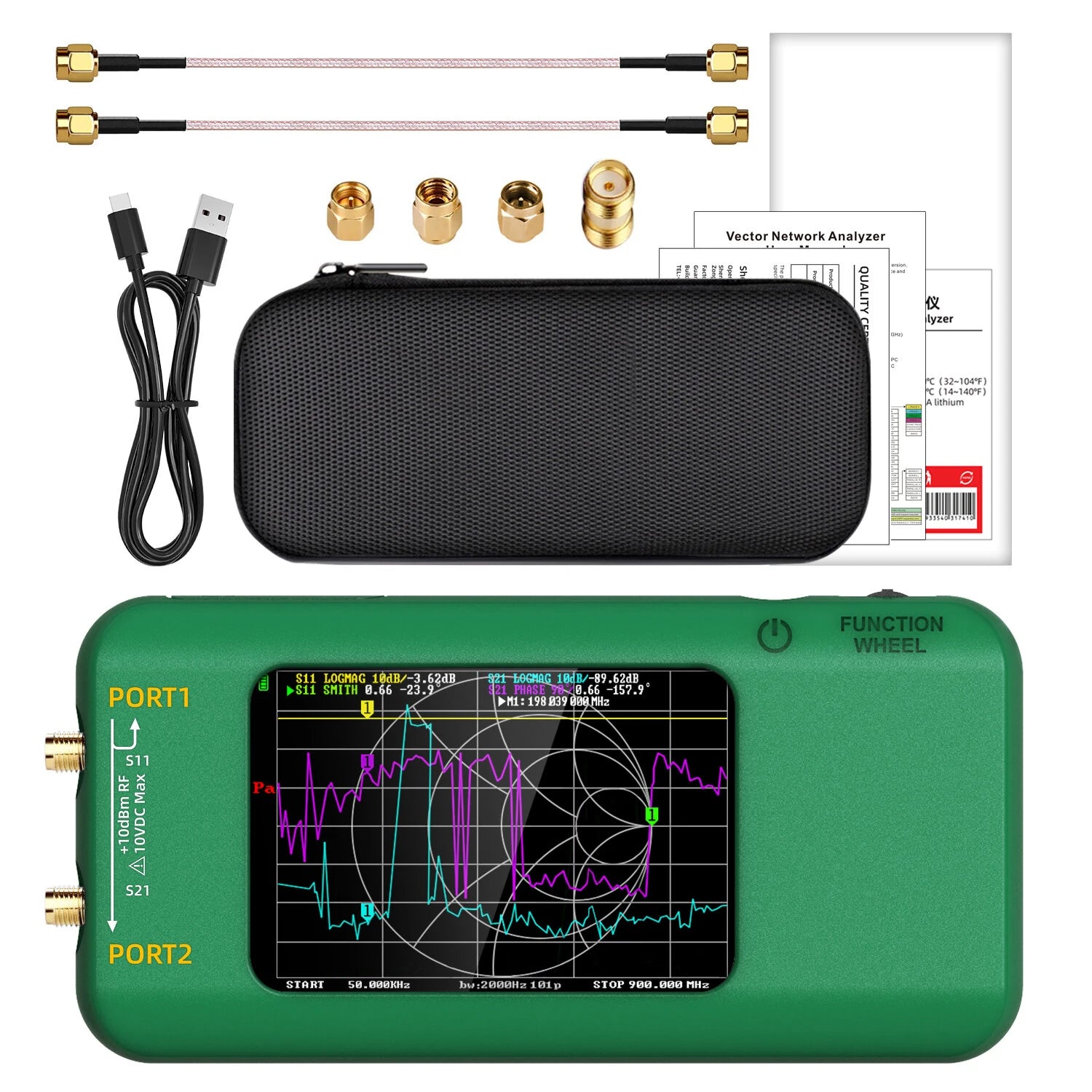

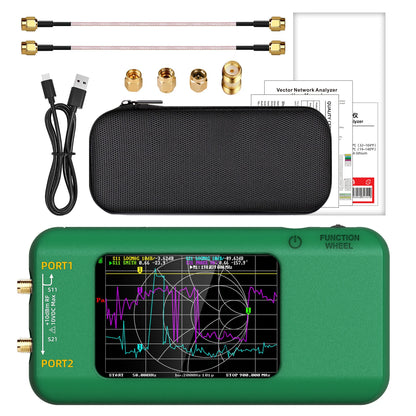

1 x Vector Network Analyzer
3 x Connector
2 x SMA Extension Cable
1 x Type-C Cable
1 x EVA Bag
