BSIDE S1 Non-Contact Voltage Tester Pen with Breakpoint Check
Pairs well with
BSIDE S1 Non-Contact Voltage Tester Pen with Breakpoint Check
Product details
Description
Specifications
Hign-concerned Chemical:None
Certification:CE
Model Number:ADMS1/ADMS1CL
Brand Name:BSIDE
Dimensions:150*39*18mm
DIY Supplies:ELECTRICAL
Operating Temperature:0-40
Accuracy Class:1
Power Supply:Battery
Display Type:Analog and Digital
Smart Digital Voltage Detector:YES
Detect Mode:Auto
Live wire in the wall:Yes,<1.5cm
Alarm type:Sound and LED light
Indicator Light:Green(Low), Yellow(Mid), Red(High)
Auto Power Off:Yes
Continuity:YES
MAX Display:2000 Counts
Frequency(Hz):40Hz~1000Hz
Work height:2000m
Over-range display:'OL' or '-OL'
Backlight(ADMS1CL):YES
Switch Funtion:NO Need
Storage temperature and humidity:-10~40℃/-4~140℉, 45%-80%RH
Features:

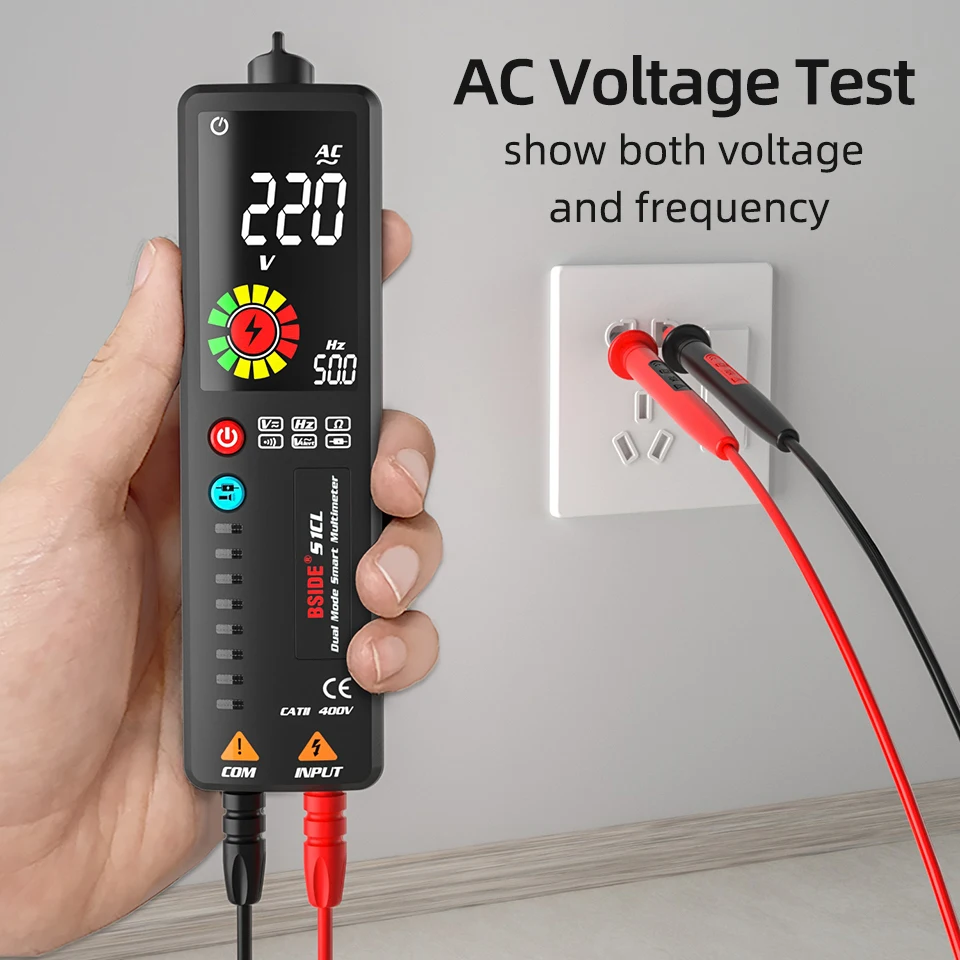

[3-Results Display]: High resolution large screen triple line display can show 3 test results on the screen, the voltage, frequency and analog bar.
[8 LED Indicators]: 8 LED Indicators in 3 color make it very easy to judge the detected voltage strength.
[Sensitivity Adjustable]: Adjustable sensitivity makes measurement more convenient, when adjusting to low sensitivity, it can more accurately distinguish the specific situation in complex lines.
[Integrated Multimeter]: Voltage detector integrated multimeter design not only greatly expands the testing applications, but also let you not worry the multimeter consume too much space.
[Automatic Identification]: Automatic identification greatly improves your test efficiency. BSIDE smart technology make this multimeter can automatically identifies the tested parameters and choose their required range.
Why Switch?
Life is easier on ADMS1. Automatically identify the tested parameters and choose their required range.
If there is a power outage, its flashlight function can help you exploring in a dark environment. Isn't it Interesting?
Which display is right for you?
If you usually test outdoor, we recommend the normal screen product ADMS1. Nnever worry about sunlight, even use in the sunlight will not affect you watching display.
EBTN screen ADMS1CL -When testing indoor or low light environments is very advantageous, its screen is so clear.
Specifications:
Display: 2000 counts
Screen: 2.4 inch
DC Voltage: 500V 0.1V ±(0.8%+3)
AC Voltage: 500V 0.1V ±(1.2%+5)
Resistance: 10MΩ 1Ω ±(1.2%+3)
Frequency: 1000Hz 0.1Hz ±(2.0%+3)
Continuity: If the resistance less than 30Ω, the beeper sounds

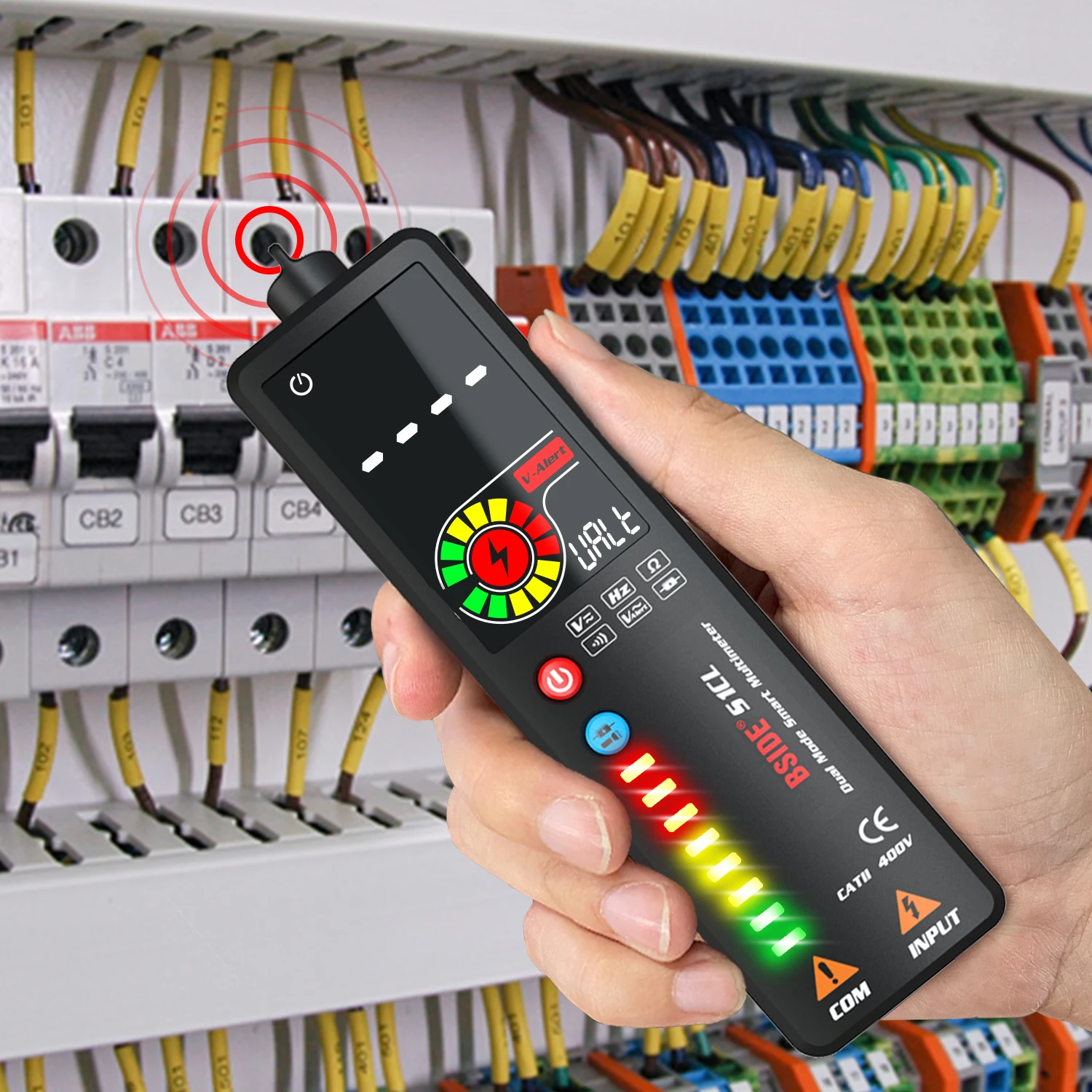

V-Alert (Non-contact Voltage Detection): Yes
Power: 1.5V (AAA) x 1
Size: 150*41*18mm
Weight: 65g
Buyer Feedback:
Note 1:
the batteries are not included in the package due to Aviation Security Check. Sorry for any inconvenience caused.
Package Includes(ADMS1):
1 x ADMS1 Smart Voltage Detector
1 x Test Leads
1 x Nylon Lanyard
1 x User Manual
Package Includes(ADMS1CL):
1 x ADMS1CL EBTN Smart Voltage Detector
1 x Test Leads
1 x Nylon Lanyard
1 x User Manual
