BSIDE SH7 Thermal Camera Multimeter
Pairs well with
BSIDE SH7 Thermal Camera Multimeter
Product details
Description
- Manual and automatic range options
- Maximum input DC voltage up to 1000V
DC/AC voltage, current, resistance, capacitance, diode, frequency, NCV temperature measurements.
Clear Display with Rich Color Options
- 3.98 inches TFT Capacitive touch screen with a resolution of 320x480
- 15 selectable color palettes, easily switching by long pressing the side button
Optional Macro Lens
captures small details as clear as 1mm x 1mm, ideal for smartphone repairs and PCB mainboard inspections.
Available in 7 languages
Including English, German, French, Spanish, Portuguese,Japanese, Italian, and Chinese, catering to global users.
Strong Battery Life and Convenient Charging
Powered by lithium battery with a runtime of up to 8 hours, reliable USB charging.
PC Software Support
Can transfer and analysis the multimeter data chart and thermal image

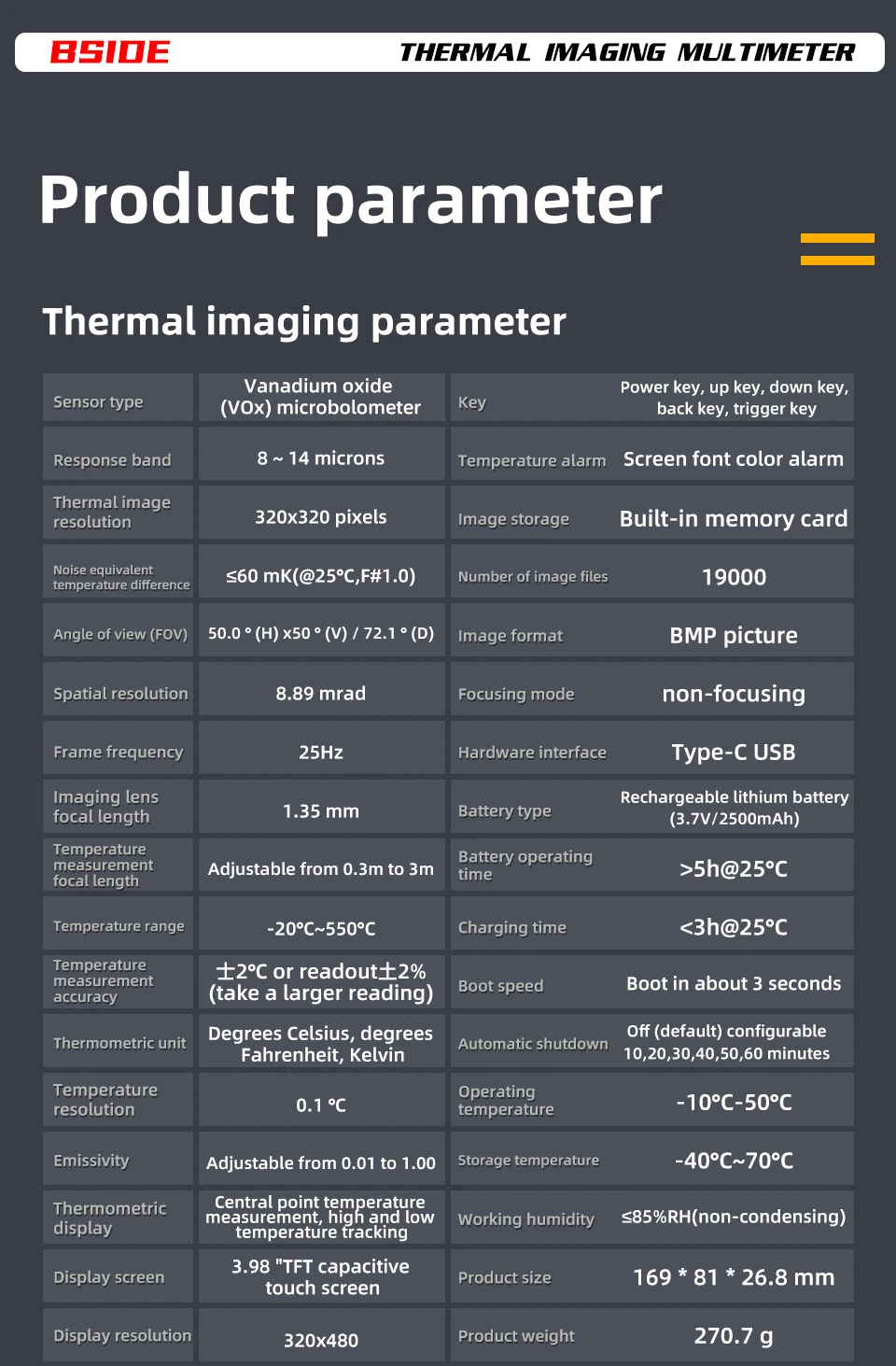

Specifications:
Thermal imaging parameters
Sensor: Vanadium oxide (VOx)
Image capture frequency:25Hz
Display image resolution:320 x 320
Field of View (FOV):50.0°(H) × 50.0°(V)/72.1°(D)
Emissivity:0.1 – 0.99 adjustable,(0.95 by default)
Temperature range:-20℃ ~ +550℃
Gain mode: Auto Gain
Color palette: White Heat, Black Heat, Fusion 1, Rainbow, Fusion 2, Iron Red 1, Iron Red 2, Dark Brown, Color 1, Color 2, Ice Fire, Rain, Green Heat, Red Heat, Deep Blue
Accuracy:±2℃or±2%
Measurement resolution:0.1℃/0.1℉
Macro Lens: Optional, no need to install, move the macro lens left and right during use.
Macro lens working distance: about 3~5cm, (please use normal thermal imaging when the distance exceeds this, otherwise the image will become blurred)
Other parameters of the equipment
Display type:3.98-inch 320 * 480 resolution
USB interface: Type-C USB
Storage capacity: includes a 4G TF card (Included).
Battery Type: Included Lithium-ion battery
Storage temperature:-20～60℃（-4～140℉）
Operating temperature:0～50℃（32～122℉）
Operating Humidity:＜85%RH （ non-condensing ）
Size: 169*81*26.8mm
Weight: Host weight: 271g (including battery), packaging weight: 500g
Package List:
1 x BSIDE SH7 Thermal Camera Multimeter
1 x USB Cable
1 x English Manual
1 x storage bag
1 x multimeter probe
1 x Type K thermocouples
1 x 12-month warranty card
1 x Macro Lens (Optional)
