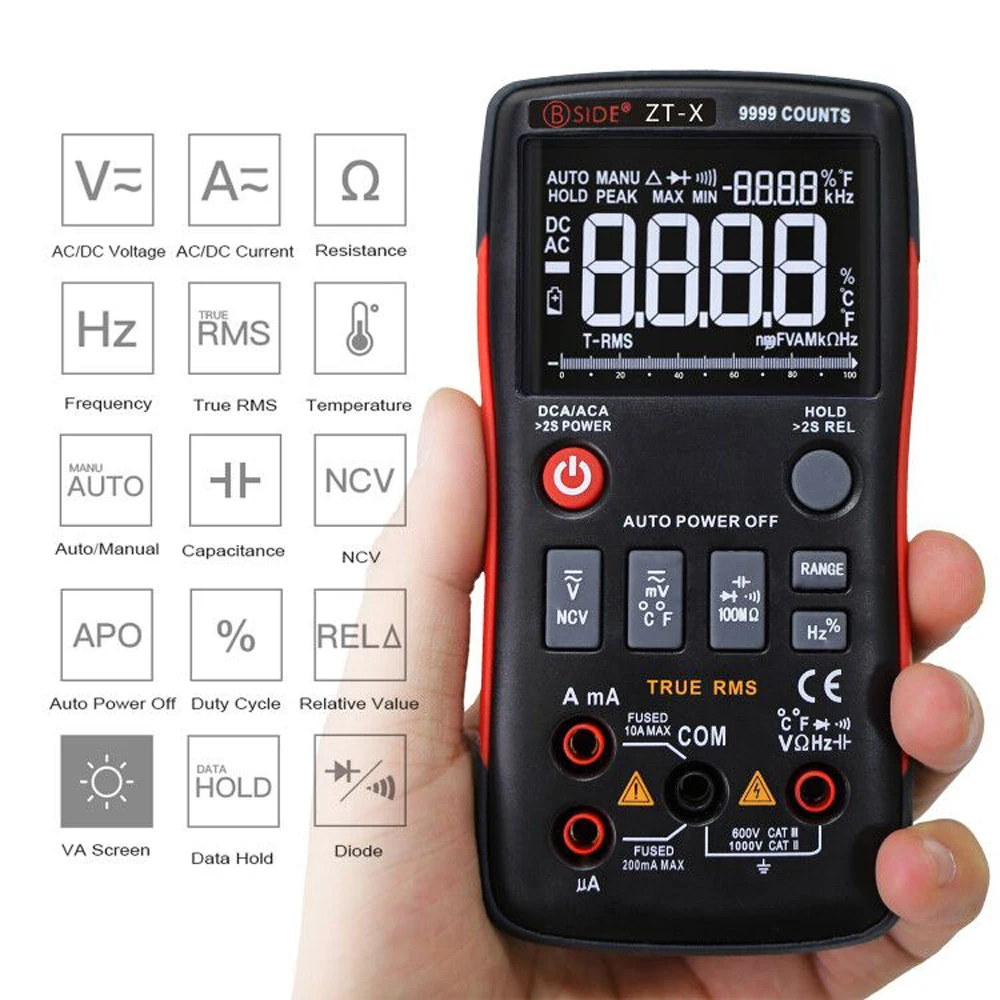

BSIDE ZT-X True RMS Multimeter with Triple Display & Temp Test
Pairs well with
BSIDE ZT-X True RMS Multimeter with Triple Display & Temp Test
Product details
Description
Specifications
Hign-concerned Chemical:None
Operating Mode:Auto range
Measuring Capacitance Range:9.999nF/99.99nF/999.9nF/9.999uF/99.99uF/999.9uF/9.999mF
Operating Temperature:0 - 40 ℃
DIY Supplies:ELECTRICAL
Measuring Resistance Range:99.99/999.9/9.999K/99.99K/999.9K/9.999M/99.99M ohm
Certification:CE
Model Number:ZT-X
Measuring Inductance Range:N/A
Brand Name:BSIDE
Dimensions:16*8*3.5cm
DC Current:9999uA/99.99mA/999.9mA/9.999A
AC Current:9999uA/99.99mA/999.9mA/9.999A
DC Voltage:9.999mV/99.99mV/999.9mV/9.999V/99.99V/999.9V
Display Type:Digital display
AC Voltage:9.999mV/99.99mV/999.9mV/9.999V/99.99V/750V
BSIDE EBTN Digital Multimeter 3-Line Display 9999 Counts Button Design True RMS Auto-Ranging DMM AC/DC Amp Volt Ohm Hz Diode Temperature Capacitance Continuity Voltmeter ZT301 8000 Counts Multimeter
Features:
[EBTN LCD Display Technology]: EBTN (enhanced background twisted nematic) LCD display greatly enhance the reading experience, the lighted up numbers & letters with black background make it very easy to read, even in bright sunlight or poor light.
[Large Screen 3 Line Display]: Large screen triple line display can show 3 test results on the screen, such as voltage, frequency and analog bar.
[All Button Design]: All button (no switch) design for easy single-hand operation, switching function is fast and convenient.
[9999 Counts True RMS Multimeter]: This 9999 counts TRMS auto-ranging multimeter can measure temperature, capacitance, diode, continuity, NCV (non-contact voltage detection), Ohm, Hz, duty cycle, AC/ DC voltage, AC/DC current, etc.
[Protective Case]: It features a protective case for protection against shocks, friction and bumps.
Specifications:
DC voltage: 999.9mV/9.999V/99.99V/999.9V±(0.5%+3),9.999mV/99.99mV±(0.5%+3)
AC voltage: 999.9mV/9.999V/99.99V/750V±(1.0%+3),9.999mV/99.99mV±(1.0%+3)
DC current: 999.9mA/9.999A±(1.0%+3),99.99mA/9999μA±(0.8%+3)
AC current: 999.9mA/9.999A±(1.2%+3),99.99mA/9999μA±(1.0%+3)
Resistance: 99.99Ω±(1.0%+3),999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ±(0.5%+3),
9.999MΩ±(1.5%+3),99.99MΩ±(3.0%+5)
Capacitance:9.999nF±(5.0%+20),
99.99nF/999.9nF/9.999μF/99.99μF/999.9μF±(2.0%+5),9.999mF±(5.0%+5)
Frequency:99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/5.000MHz ±(0.1% + 2)
Duty Cycle:1%~99%±( 0.1%+2)
Temperature:-20°~1000°(-4°~1832°)±(2.5%+5)

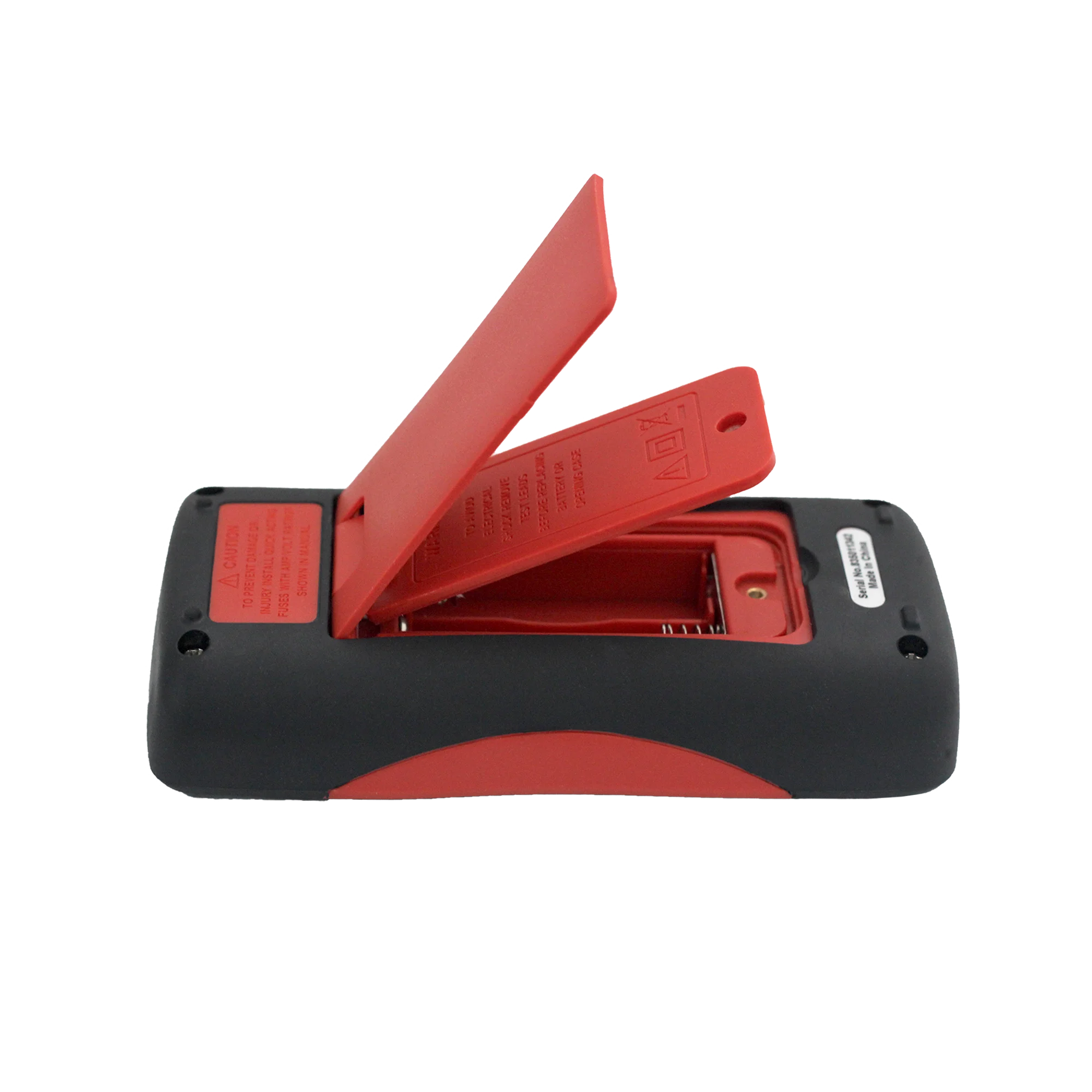

Supply power:2 x 1.5V AA battery (not included)
Product Size:146 x 72 x 33mm
Package Includes:
1 x Multimeter
1 x Test Leads
1 x Thermocouple
1 x Protect Bag
1 x User Manual
1 x T1101 Crocodile Cips(If you choose with T1101 option)
Note:
the batteries are not included in the package due to Aviation Security Check. Sorry for any inconvenience caused.
Package Includes (ZT-X with X1 Kit Option):
1 x ZT-X Multimeter
1 x X1 Voltage Tester
2 x Test Leads
1 x Thermocouple
1 x EVA High quality zipper case
1 x Protect Bag
2 x User Manual
1 x T1101 Crocodile Cips(Gift)
Package Includes (ZT-X with T1101 Option):
1 x ZT-X Multimeter
1 x Test Leads
1 x Thermocouple
1 x Protect Bag
1 x User Manual
1 x T1101 Crocodile Cips
Package Includes (ZT301 with T1101 Option):
1 x ZT301 Multimeter
1 x Test Leads
1 x Thermocouple
1 x Protect Bag
1 x User Manual
1 x T1101 Crocodile Cips
