BSIDE ZT100 Digital Multimeter with Voltage & Capacitance Test
Pairs well with
BSIDE ZT100 Digital Multimeter with Voltage & Capacitance Test
Product details
Description
Specifications
Hign-concerned Chemical:None
Operating Mode:Automatic/Manual
Measuring Capacitance Range:10MF
DIY Supplies:ELECTRICAL
Measuring Resistance Range:40Mohm
Certification:CE,FCC,RoHS
Model Number:BSIDE ZT100Digital Multimeter
Measuring Inductance Range:N/A
Brand Name:BSIDE
Dimensions:130x65x32mm
DC Current:Fiberglass
AC Current:Fiberglass
DC Voltage:600V
Display Type:Digital display
BSIDE Model:ZT100
AC Voltage:600V
Product introduction:

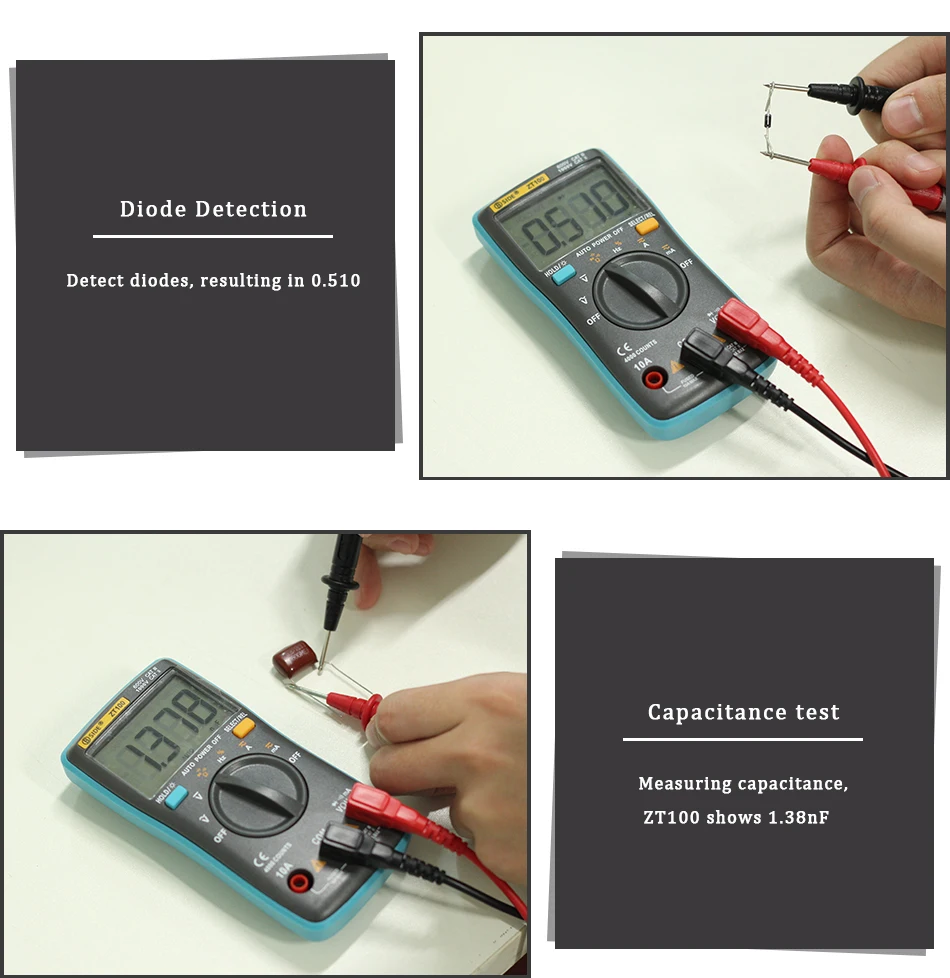

It can be used to measure AC/DC voltage, AC/DC current, resistance, capacitance, diode, continuity testing, frequency, duty cycle, etc.
Characterized by stable function and high reliability, with the features of overload protection and backlight lighted LCD display for clear reading.
This product is a perfect tool for lab, factory, radio fans, and family use.
Features:
LCD display : 4000 Counts
with backlight.
Automatic polarity identification.
Over range indication: OL.
Low battery indication.
Auto power off after 15-minute no-operation.
Small size and light weight, suitable for carrying anywhere.

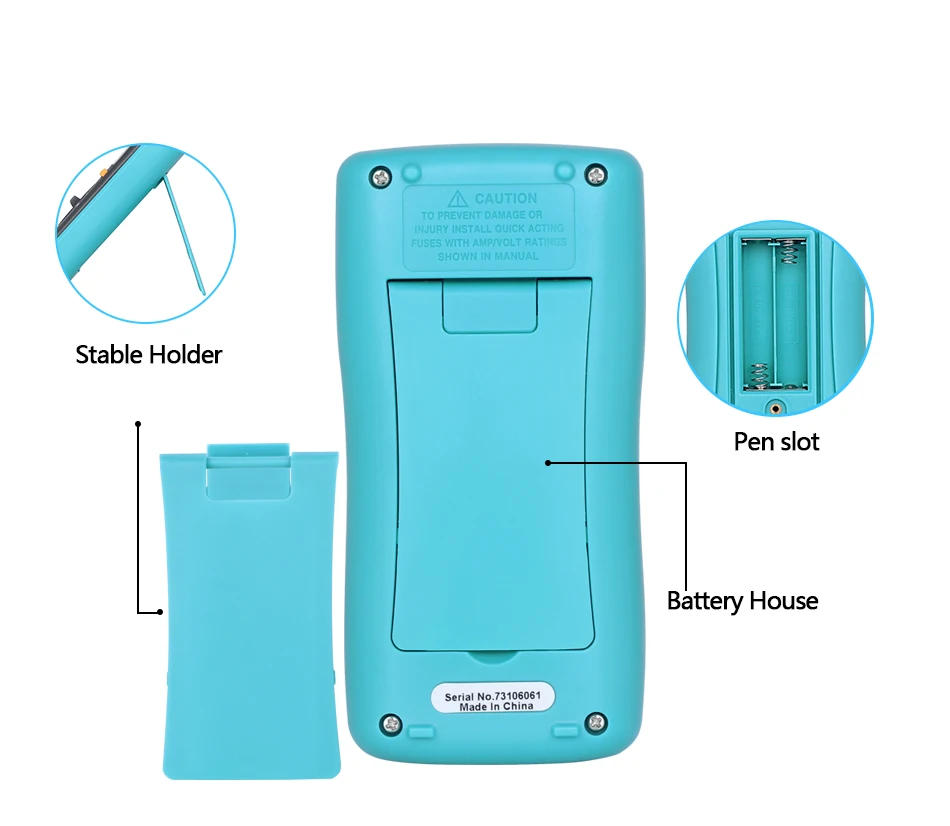

With a bracket behind, can stand on your desk in a great position for easy reading.
Test range:
DC voltage: 400.0mV/4,000 V/40.00V/400.0V/600V
DC voltage resolution: 0.1mV/1mV/10mV/100mV/1V
AC voltage (RMS): 400.0mV/4,000 V/40.00V/400.0V/600V
AC voltage resolution: 0.1mV/1mV/10mV/100mV/1V
DC current: 40.00mA/400.0mA/10.00A
DC current resolution: 10μA/100μA/10mA
AC current (RMS): 40.00mA/400.0mA/10.00A
AC current resolution: 10μA/100μA/10mA
Resistance: 400.0Ω/4.000k Ω/40.00k Ω/400.0k Ω/4.000M Ω/40.00MΩ
Resistance resolution: 0.1Ω/1Ω/10Ω/100Ω/1kΩ/10kΩ
Capacitance: 4.000nF/40.00nF/400.0nF/4.000μF/40.00μF/4000μF/4000μF
Capacitance resolution: 1pF/10pF/1nF/10nF/100nF/1000nF99.5Hz/999.5Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz
Frequence resolution: 0.5Hz/0.5Hz/1Hz/10Hz/100Hz/1kHz
Duty cycle: 0.1% to 99.9%
Operational temperature: 0-40°, <75% RH
Storage temperature: -20-60°, <80% RH
Power supply: 3V (2 * 1.5V)AAA battery (Not included)
Power consumption: 4.5mW (Typical)
Item size: 130*65*32mm/5.1*2.56 * 1.26in
Item weight: 114.5g / 4.0oz
Package weight: 180g / 6.35oz
Package size: 16*8*5cm/6.3*3.15 * 1.97in
Package includes:
1 * Multimeter. 1 * test clip.
1 * color box. 1 * English manual
